Buildings.DHC.ETS.Combined
Package of models for DHC energy transfer stations
Information
This package contains models for energy transfer stations used in district heating and cooling systems.
Extends from Modelica.Icons.VariantsPackage (Icon for package containing variants).
Package Content
| Name | Description |
|---|---|
| Model of a substation with heat pump for heating, heat pump for domestic hot water, and compressor-less cooling | |
| Model of a substation with heat pump for heating, heat pump with storage tank for domestic hot water, and compressor-less cooling | |
| An ETS model with a heat recovery heat pump producing CHW, HHW, and DHW | |
| Package of control blocks for fifth generation DHC ETS | |
| Package of models for subsystems of fifth generation DHC ETS | |
| Package for data records | |
| Package of example models of energy transfer stations for combined heating and cooling | |
| Collection of validation models | |
| Package with base classes |
Buildings.DHC.ETS.Combined.HeatPumpHeatExchanger
Model of a substation with heat pump for heating, heat pump for domestic hot water, and compressor-less cooling
Information
This model uses the base energy transfer station defined in Buildings.DHC.ETS.Combined.BaseClasses.PartialHeatPumpHeatExchanger.
Domestic Hot Water
Domestic hot water is produced using a dedicated water-to-water heat pump on-demand with no storage.
Heating is enabled based on the input signal uSHW
which is held for 15 minutes, meaning that,
when enabled, the mode remains active for at least 15 minutes and,
when disabled, the mode cannot be enabled again for at least 15 minutes.
The enable signal should be computed externally based
on a schedule (to lock out the system during off-hours), ideally in conjunction
with the number of requests or any other signal representative of the load.
When enabled,
- The heat pump and the evaporator and condenser hydronics are controlled based on the principles described in Buildings.DHC.ETS.Combined.Subsystems.HeatPump.
-
The condensor water mass flow rate is computed based on the domestic hot water
heating load (input
QReqHotWat_flow) where the temperature of water is boosted from the domestic cold water temperature (inputTColWat) to the desired domestic hot water distribution temperature (parameterTHotWatSup_nominal), according to the following equation:QReqHotWat_flow= ṁ cp (THotWatSup_nominal-TColWat)
Extends from Buildings.DHC.ETS.Combined.BaseClasses.PartialHeatPumpHeatExchanger (Partial model of a substation with heat pump and compressor-less cooling).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package MediumSer | Water | Service side medium | |
| replaceable package MediumSerHea_a | Water | Service side medium at heating inlet | |
| replaceable package MediumBui | Water | Building side medium | |
| Generic | fue[nFue] | Fuel type | |
| Boolean | have_varFloCon | true | Set to true for heat pumps with variable condenser flow |
| Boolean | have_varFloEva | true | Set to true for heat pumps with variable evaporator flow |
| Real | ratFloMin | 0.3 | Minimum condenser mass flow rate (ratio to nominal) [1] |
| Configuration | |||
| Boolean | have_hotWat | false | Set to true if the ETS supplies hot water |
| Nominal condition | |||
| HeatFlowRate | QHeaWat_flow_nominal | 0 | Nominal capacity of heating system (>=0) [W] |
| HeatFlowRate | QHotWat_flow_nominal | 0 | Nominal capacity of hot water production system (>=0) [W] |
| HeatFlowRate | QChiWat_flow_nominal | 0 | Nominal capacity of cooling system (<=0) [W] |
| TemperatureDifference | dT_nominal | 5 | Water temperature drop/increase accross load and source-side HX (always positive) [K] |
| Temperature | THeaWatSup_nominal | 313.15 | Heating water supply temperature [K] |
| Temperature | THotWatSup_nominal | 336.15 | Domestic hot water supply temperature to fixtures [K] |
| Temperature | TColWat_nominal | 288.15 | Cold water temperature (for hot water production) [K] |
| Pressure | dp_nominal | 50000 | Pressure difference at nominal flow rate (for each flow leg) [Pa] |
| Real | COPHeaWat_nominal | COP of heat pump for heating water production [1] | |
| Real | COPHotWat_nominal | COP of heat pump for hot water production [1] | |
| DHC system | |||
| Temperature | TDisWatMin | District water minimum temperature [K] | |
| Temperature | TDisWatMax | District water maximum temperature [K] | |
| Nominal conditions | |||
| Temperature | TChiWatSup_nominal | 291.15 | Chilled water supply temperature [K] |
| Assumptions | |||
| Boolean | allowFlowReversalSer | false | Set to true to allow flow reversal on service side |
| Boolean | allowFlowReversalBui | false | Set to true to allow flow reversal on building side |
| Dynamics | |||
| Dynamics | mixingVolumeEnergyDynamics | Modelica.Fluid.Types.Dynamic... | Formulation of energy balance for mixing volume at inlet and outlet |
Connectors
| Type | Name | Description |
|---|---|---|
| FluidPorts_a | ports_aHeaWat[nPorts_aHeaWat] | Fluid connectors for heating water return (from building) |
| FluidPorts_b | ports_bHeaWat[nPorts_bHeaWat] | Fluid connectors for heating water supply (to building) |
| FluidPorts_a | ports_aChiWat[nPorts_aChiWat] | Fluid connectors for chilled water return (from building) |
| FluidPorts_b | ports_bChiWat[nPorts_bChiWat] | Fluid connectors for chilled water supply (to building) |
| FluidPort_a | port_aSerAmb | Fluid connector for ambient water service supply line |
| FluidPort_b | port_bSerAmb | Fluid connector for ambient water service return line |
| FluidPort_a | port_aSerHea | Fluid connector for heating service supply line |
| FluidPort_b | port_bSerHea | Fluid connector for heating service return line |
| FluidPort_a | port_aSerCoo | Fluid connector for cooling service supply line |
| FluidPort_b | port_bSerCoo | Fluid connector for cooling service return line |
| output RealOutput | PHea | Power drawn by heating system [W] |
| output RealOutput | PCoo | Power drawn by cooling system [W] |
| output RealOutput | PFan | Power drawn by fan motors [W] |
| output RealOutput | PPum | Power drawn by pump motors [W] |
| output RealOutput | QFue_flow[nFue] | Fuel energy input rate [W] |
| Bus | weaBus | Weather data bus |
| input BooleanInput | uCoo | Cooling enable signal |
| input BooleanInput | uHea | Heating enable signal |
| input BooleanInput | uSHW | SHW production enable signal |
| input RealInput | THeaWatSupSet | Heating water supply temperature set point [K] |
| input RealInput | THotWatSupSet | Domestic hot water temperature set point for supply to fixtures [K] |
| input RealInput | TColWat | Cold water temperature [K] |
| input RealInput | QReqHotWat_flow | Service hot water load [W] |
| input RealInput | TChiWatSupSet | Chilled water supply temperature set point [K] |
| output RealOutput | mHea_flow | District water mass flow rate used for heating service [kg/s] |
| output RealOutput | mCoo_flow | District water mass flow rate used for cooling service [kg/s] |
Modelica definition
Buildings.DHC.ETS.Combined.HeatPumpHeatExchangerDHWTank
Model of a substation with heat pump for heating, heat pump with storage tank for domestic hot water, and compressor-less cooling
Information
This model uses the base energy transfer station defined in Buildings.DHC.ETS.Combined.BaseClasses.PartialHeatPumpHeatExchanger.
Domestic Hot Water
Domestic hot water is produced using a dedicated water-to-water heat pump with storage tank.
Heating is enabled based on the input signal uSHW
which is held for 15 minutes, meaning that,
when enabled, the mode remains active for at least 15 minutes and,
when disabled, the mode cannot be enabled again for at least 15 minutes.
The enable signal should be computed externally based
on a schedule (to lock out the system during off-hours), ideally in conjunction
with the number of requests or any other signal representative of the load.
When enabled,
- The heat pump and the evaporator and condenser hydronics are controlled based on the principles described in Buildings.DHC.ETS.Combined.Subsystems.HeatPumpDHWTank.
-
The mass flow rate of water leaving the domestic hot water heat exchanger is computed based on the domestic hot water
heating load (input
QReqHotWat_flow) combined with the operation of a thermostatic mixing valve used to mix down the temperature of hot water leaving the domestic hot water heat exchanger to the temperature distributed to fixtures (parameterTHotWatSup_nominal) using domestic cold water at the cold water temperature (inputTColWat). The desired water flow rate leaving the thermostatic mixing valve is determined according to the following equation:QReqHotWat_flow= ṁ cp (THotWatSup_nominal-TColWat)
Extends from Buildings.DHC.ETS.Combined.BaseClasses.PartialHeatPumpHeatExchanger (Partial model of a substation with heat pump and compressor-less cooling).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package MediumSer | Water | Service side medium | |
| replaceable package MediumSerHea_a | Water | Service side medium at heating inlet | |
| replaceable package MediumBui | Water | Building side medium | |
| Generic | fue[nFue] | Fuel type | |
| Boolean | have_varFloCon | true | Set to true for heat pumps with variable condenser flow |
| Boolean | have_varFloEva | true | Set to true for heat pumps with variable evaporator flow |
| Real | ratFloMin | 0.3 | Minimum condenser mass flow rate (ratio to nominal) [1] |
| GenericDomesticHotWaterWithHeatExchanger | datWatHea | Performance data | |
| Configuration | |||
| Boolean | have_hotWat | false | Set to true if the ETS supplies hot water |
| Nominal condition | |||
| HeatFlowRate | QHeaWat_flow_nominal | 0 | Nominal capacity of heating system (>=0) [W] |
| HeatFlowRate | QHotWat_flow_nominal | 0 | Nominal capacity of hot water production system (>=0) [W] |
| HeatFlowRate | QChiWat_flow_nominal | 0 | Nominal capacity of cooling system (<=0) [W] |
| TemperatureDifference | dT_nominal | 5 | Water temperature drop/increase accross load and source-side HX (always positive) [K] |
| Temperature | THeaWatSup_nominal | 313.15 | Heating water supply temperature [K] |
| Temperature | THotWatSup_nominal | 336.15 | Domestic hot water supply temperature to fixtures [K] |
| Temperature | TColWat_nominal | 288.15 | Cold water temperature (for hot water production) [K] |
| Pressure | dp_nominal | 50000 | Pressure difference at nominal flow rate (for each flow leg) [Pa] |
| Real | COPHeaWat_nominal | COP of heat pump for heating water production [1] | |
| Real | COPHotWat_nominal | COP of heat pump for hot water production [1] | |
| DHC system | |||
| Temperature | TDisWatMin | District water minimum temperature [K] | |
| Temperature | TDisWatMax | District water maximum temperature [K] | |
| Nominal conditions | |||
| Temperature | TChiWatSup_nominal | 291.15 | Chilled water supply temperature [K] |
| Assumptions | |||
| Boolean | allowFlowReversalSer | false | Set to true to allow flow reversal on service side |
| Boolean | allowFlowReversalBui | false | Set to true to allow flow reversal on building side |
| Dynamics | |||
| Dynamics | mixingVolumeEnergyDynamics | Modelica.Fluid.Types.Dynamic... | Formulation of energy balance for mixing volume at inlet and outlet |
Connectors
| Type | Name | Description |
|---|---|---|
| FluidPorts_a | ports_aHeaWat[nPorts_aHeaWat] | Fluid connectors for heating water return (from building) |
| FluidPorts_b | ports_bHeaWat[nPorts_bHeaWat] | Fluid connectors for heating water supply (to building) |
| FluidPorts_a | ports_aChiWat[nPorts_aChiWat] | Fluid connectors for chilled water return (from building) |
| FluidPorts_b | ports_bChiWat[nPorts_bChiWat] | Fluid connectors for chilled water supply (to building) |
| FluidPort_a | port_aSerAmb | Fluid connector for ambient water service supply line |
| FluidPort_b | port_bSerAmb | Fluid connector for ambient water service return line |
| FluidPort_a | port_aSerHea | Fluid connector for heating service supply line |
| FluidPort_b | port_bSerHea | Fluid connector for heating service return line |
| FluidPort_a | port_aSerCoo | Fluid connector for cooling service supply line |
| FluidPort_b | port_bSerCoo | Fluid connector for cooling service return line |
| output RealOutput | PHea | Power drawn by heating system [W] |
| output RealOutput | PCoo | Power drawn by cooling system [W] |
| output RealOutput | PFan | Power drawn by fan motors [W] |
| output RealOutput | PPum | Power drawn by pump motors [W] |
| output RealOutput | QFue_flow[nFue] | Fuel energy input rate [W] |
| Bus | weaBus | Weather data bus |
| input BooleanInput | uCoo | Cooling enable signal |
| input BooleanInput | uHea | Heating enable signal |
| input BooleanInput | uSHW | SHW production enable signal |
| input RealInput | THeaWatSupSet | Heating water supply temperature set point [K] |
| input RealInput | THotWatSupSet | Domestic hot water temperature set point for supply to fixtures [K] |
| input RealInput | TColWat | Cold water temperature [K] |
| input RealInput | QReqHotWat_flow | Service hot water load [W] |
| input RealInput | TChiWatSupSet | Chilled water supply temperature set point [K] |
| output RealOutput | mHea_flow | District water mass flow rate used for heating service [kg/s] |
| output RealOutput | mCoo_flow | District water mass flow rate used for cooling service [kg/s] |
Modelica definition
Buildings.DHC.ETS.Combined.HeatRecoveryHeatPump
An ETS model with a heat recovery heat pump producing CHW, HHW, and DHW
Information
Model of an Energy Transfer Station with heat recovery heat pump, buffer tanks and optional domestic hot water preparation and optional water-side economizer.

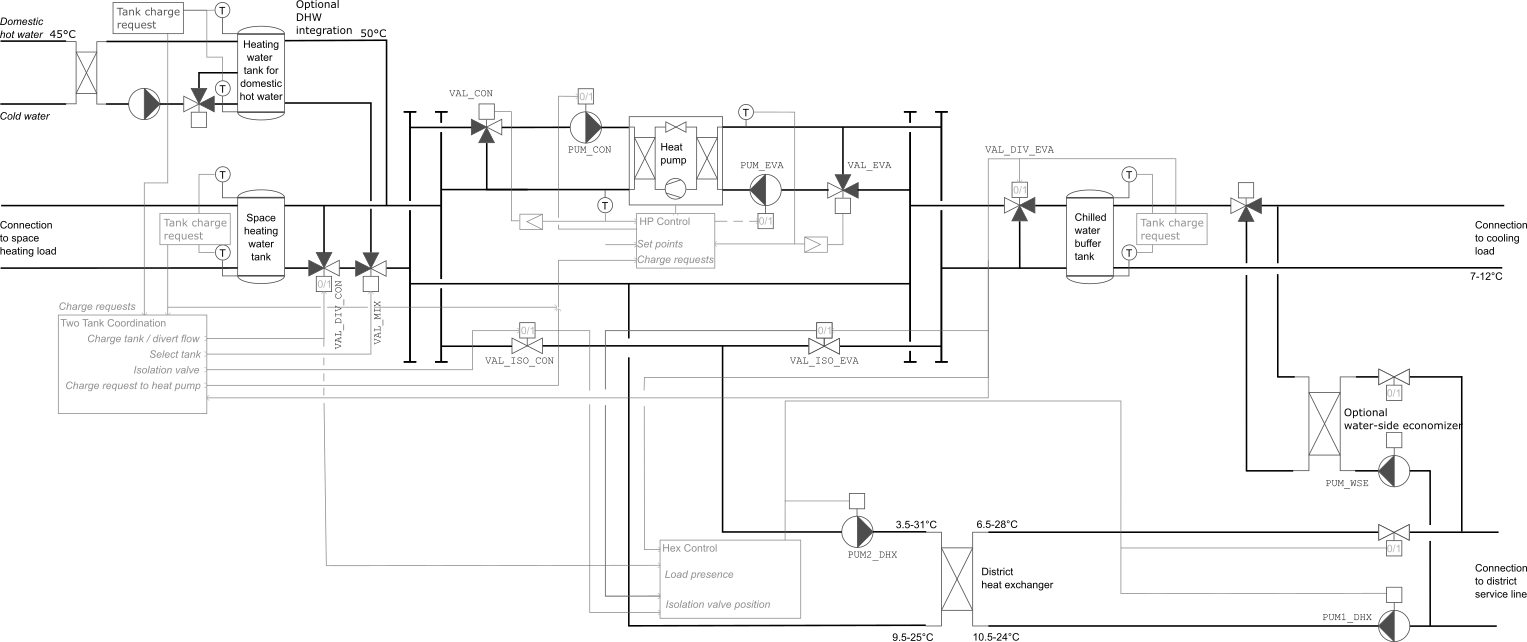

The figure below shows the schematic diagram. The heat recovery heat pump preferentially operates in heat recovery mode, but if heating (or cooling) demand persists while the cold (or hot) water-side buffer tank is fully charged, the evaporator (or condenser) temperature is reset, the corresponding tank is decoupled to avoid flushing the tank, and heat is exchanged with the district energy system.
The operation is as follows:
Domestic Hot Water Tank and Buffer Tanks
The chilled water and heating hot water tanks are by default sized for five minutes and used as buffer tanks. The DHW tank is by default sized for 24 hours of storage. Each tank generates a signal to request charging. If the temperature of its supply side (top for the hot tank, bottom for the cold tank) deviates from the set point with hysteresis, charging is enabled until the temperature of its return side (bottom for the hot tank, top for the cold tank) achieves the set point with hysteresis.
When the space heating or cooling tank does not
request charging, the diversion valve VAL_DIV_CON
or VAL_DIV_EVA to the respective tank is closed, and
the isolation valve VAL_ISO_CON or VAL_ISO_EVA
is opened to allow energy exchange with the district
heat exchanger. The diversion valves are necessary
because, for example, when the ETS operates cooling
only mode, rejecting heat to the ambient loop, the
condenser outputs hot water at the minimum leaving
temperature is 15°C. Without the diversion
valve, the cool water from the condenser would flush
out the energy stored in the space heating tank.
This causes energy waste. It also causes short
cycling because the tank will request charging
repeatedly as its temperature falls below the
heating set point, bring the system into a limit
cycle.
Two-tank Coordination on the Condenser Side
The integration of the DHW tank is optional, as not all buildings prepare DHW using the ETS. When integrated, the space heating and DHW tank share the same condenser loop. The table below explains how the two loops are coordinated through valve control.
| Charge signal | Controller output | ||
|---|---|---|---|
| DHW | HHW | ymix | ydiv |
| on | on | 0.5 | 1 |
| on | off | 0 | 1 |
| off | on | 1 | 1 |
| off | off | 1 | 0 |
Heat Recovery Heat Pump
The heat recovery heat pump can produce heating,
cooling, or both simultaneously. The condenser pump
PUM_CON and the evaporator pump PUM_EVA are enabled
when any of the respective tanks requests charging.
The heat pump is turned on 30 seconds after
PUM_CON and PUM_EVA are running.
When on, the primary pumps are operated at constant
speed, and the condenser (resp. evaporator) mixing
valve VAL_CON (resp. VAL_EVA) are modulated with a
P controller to track the set point for the water
that leaves the heat pump, with a small offset to
open first the valve and then ramp up the compressor
speed.
The compressor speed is controlled based on the same temperature measurement as the mixing valves. Based on a moving average of the compressor speed signal for heating and cooling, the heat pump control is switched into heating or cooling dominated operation, and the respective compressor speed setpoint is sent to the heat pump.
If only heating (or only cooling) is requested from the tank, then the evaporator (or condenser) set point temperature is reset to minimize the temperature lift across the heat pump.
District Heat Exchanger
The district heat exchanger hydraulically decouples
the buildings system and the district system. Its
primary and secondary circuits are enabled to operate
if either any of the tanks request charging, and if
an isolation valve VAL_ISO_CON or VAL_ISO_EVA
is open. When enabled, the pumps PUM1_DHX and
PUM2_DHX operate at a constant speed.
Temperature Set Points
The set points for the supply temperatures are input to this
model.
For the heating supply water, use THeaWatSupSet,
for the cooling supply water, use TChiWatSupSet.
If a domestic hot water supply is present, as declared
through the parameter have_hotWat,
then use THotWatSupSet for the set point
temperature to the end user (such as shower),
and use TColWat for the temperature of the cold water supply
and QReqHotWat_flow for the heat flow rate associated
with the hot water supply, i.e.,
QReqHotWat_flow = mHotWat_flow cwat (THotWatSupSet-TColWat), where
mHotWat_flow is the hot water mass flow rate, and
cwat is the specific heat capacity of water.
Domestic Hot Water Preparation
The DHW preparation is optional. If present, a fresh water station is used. The fresh water station allows to store heat in the heating rather than the domestic hot water, therefore avoiding the potential problem of Legionella bacteria getting from the hot water tank to the DHW circuit. This allows to operate the storage at a lower temperature, thereby increasing the heat pump COP.
The integration of the domestic hot water is further described in Buildings.DHC.ETS.Combined.Subsystems.DHWConsumption, which uses the fresh water station that is described and shown with a schematic diagram at Buildings.DHC.ETS.Combined.Subsystems.StorageTankWithExternalHeatExchanger.
Water-side economizer
The water-side economizer is optional. Use of the water-side economizer can improve resilience during heat waves when power consumption of the ETS need to be curtailed by switching of the chiller, for example during a grid outage when the site operates on emergency power.
To use the water-side economizer, if the temperature conditions are favorable, the valves (or pumps) are activated in order to cool the chilled water supply to the building. This model and its operation is described in Buildings.DHC.ETS.Combined.Subsystems.WatersideEconomizer. and in Gautier et al. (2022).
References
Antoine Gautier, Michael Wetter and Matthias Sulzer.
Resilient cooling through geothermal district energy system.
Applied Energy, 325, November, 2022.
Extends from Buildings.DHC.ETS.BaseClasses.PartialETS (Partial class for modeling an energy transfer station).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package MediumSer | Water | Service side medium | |
| replaceable package MediumSerHea_a | Water | Service side medium at heating inlet | |
| replaceable package MediumBui | Water | Building side medium | |
| Generic | fue[nFue] | Fuel type | |
| ConnectionConfiguration | conCon | Buildings.DHC.ETS.Types.Conn... | District connection configuration |
| Integer | nSysHea | 1 | Number of heating systems |
| Integer | nSysCoo | nSysHea | Number of cooling systems |
| Integer | nSouAmb | 1 | Number of ambient sources |
| MassFlowRate | m1Hex_flow_nominal | abs(QHex_flow_nominal/4200/(... | Design mass flow rate for heat exchanger on district side [kg/s] |
| TemperatureDifference | dTOffSetHea | 1 | Temperature to be added to the set point in order to be slightly above what the heating load requires [K] |
| TemperatureDifference | dTOffSetCoo | -1 | Temperature to be added to the set point in order to be slightly below what the cooling load requires [K] |
| GenericDomesticHotWaterWithHeatExchanger | datDhw | Performance data of the domestic hot water component | |
| Boolean | have_WSE | false | Set to true in case a waterside economizer is used |
| Temperature | THeaWatSupSetMin | datHeaPum.TConLvgMin | Minimum value of heating water supply temperature set point (used for heat pump reset) [K] |
| Configuration | |||
| DistrictSystemType | typ | Buildings.DHC.Types.District... | Type of district system |
| Boolean | have_heaWat | true | Set to true if the ETS supplies heating water |
| Boolean | have_hotWat | false | Set to true if the ETS supplies hot water |
| Boolean | have_chiWat | true | Set to true if the ETS supplies chilled water |
| Boolean | have_fan | false | Set to true if fan power is computed |
| Boolean | have_pum | true | Set to true if pump power is computed |
| Boolean | have_eleHea | false | Set to true if the ETS has electric heating system |
| Integer | nFue | 0 | Number of fuel types (0 means no combustion system) |
| Boolean | have_eleCoo | true | Set to true if the ETS has electric cooling system |
| Boolean | have_weaBus | true | Set to true to use a weather bus |
| Nominal condition | |||
| HeatFlowRate | QHeaWat_flow_nominal | 0 | Nominal capacity of heating system (>=0) [W] |
| HeatFlowRate | QHotWat_flow_nominal | 0 | Nominal capacity of hot water production system (>=0) [W] |
| HeatFlowRate | QChiWat_flow_nominal | 0 | Nominal capacity of cooling system (<=0) [W] |
| PressureDifference | dpValIso_nominal | 2E3 | Nominal pressure drop of ambient circuit isolation valves [Pa] |
| District heat exchanger | |||
| PressureDifference | dp1Hex_nominal | Nominal pressure drop across heat exchanger on district side [Pa] | |
| PressureDifference | dp2Hex_nominal | Nominal pressure drop across heat exchanger on building side [Pa] | |
| HeatFlowRate | QHex_flow_nominal | Nominal heat flow rate through heat exchanger (from district to building) [W] | |
| Temperature | T_a1Hex_nominal | Nominal water inlet temperature on district side [K] | |
| Temperature | T_b1Hex_nominal | Nominal water outlet temperature on district side [K] | |
| Temperature | T_a2Hex_nominal | Nominal water inlet temperature on building side [K] | |
| Temperature | T_b2Hex_nominal | Nominal water outlet temperature on building side [K] | |
| Real | spePum1HexMin | 0.1 | Heat exchanger primary pump minimum speed (fractional) [1] |
| Real | spePum2HexMin | 0.1 | Heat exchanger secondary pump minimum speed (fractional) [1] |
| Buffer Tank | |||
| Volume | VTanHeaWat | datHeaPum.PLRMin*datHeaPum.m... | Heating water tank volume [m3] |
| Length | hTanHeaWat | (VTanHeaWat*16/Modelica.Cons... | Heating water tank height (without insulation, assuming twice the diameter) [m] |
| Length | dInsTanHeaWat | 0.1 | Heating water tank insulation thickness [m] |
| Volume | VTanChiWat | datHeaPum.PLRMin*datHeaPum.m... | Chilled water tank volume [m3] |
| Length | hTanChiWat | (VTanChiWat*16/Modelica.Cons... | Chilled water tank height (without insulation, assuming twice the diameter) [m] |
| Length | dInsTanChiWat | 0.1 | Chilled water tank insulation thickness [m] |
| Integer | nSegTan | 3 | Number of volume segments for tanks |
| Heat recovery heat pump | |||
| GenericHeatPump | datHeaPum | Heat pump performance data | |
| PressureDifference | dpCon_nominal | datHeaPum.datHea.dpCon_nominal | Nominal pressure drop across condenser [Pa] |
| PressureDifference | dpEva_nominal | datHeaPum.datHea.dpEva_nominal | Nominal pressure drop across evaporator [Pa] |
| HeatPumpModular | heaPum | heaPum(redeclare final packa... | Heat pump |
| Supervisory controller | |||
| SimpleController | controllerType | Buildings.Controls.OBC.CDL.T... | Type of controller |
| Real | kHot | 0.05 | Gain of controller on hot side |
| Real | kCol | 0.1 | Gain of controller on cold side |
| Time | TiHot | 300 | Time constant of integrator block on hot side [s] |
| Time | TiCol | 120 | Time constant of integrator block on cold side [s] |
| Temperature | TChiWatSupSetMax | datHeaPum.TEvaLvgMax | Maximum value of chilled water supply temperature set point for heat pump (used for heat pump reset) [K] |
| Waterside economizer | |||
| PressureDifference | dp1WSE_nominal | 40E3 | Nominal pressure drop across heat exchanger on district side [Pa] |
| PressureDifference | dp2WSE_nominal | 40E3 | Nominal pressure drop across heat exchanger on building side [Pa] |
| HeatFlowRate | QWSE_flow_nominal | 0 | Nominal heat flow rate through water-side economizer exchanger (<=0) [W] |
| Temperature | T_a1WSE_nominal | 279.15 | Nominal water inlet temperature on district side [K] |
| Temperature | T_b1WSE_nominal | 284.15 | Nominal water outlet temperature on district side [K] |
| Temperature | T_a2WSE_nominal | 288.15 | Nominal water inlet temperature on building side [K] |
| Temperature | T_b2WSE_nominal | 281.15 | Nominal water outlet temperature on building side [K] |
| Real | y1WSEMin | 0.05 | Minimum pump flow rate or valve opening for temperature measurement (fractional) [1] |
| Assumptions | |||
| Boolean | allowFlowReversalSer | false | Set to true to allow flow reversal on service side |
| Boolean | allowFlowReversalBui | false | Set to true to allow flow reversal on building side |
| Initialization | |||
| Temperature | TCon_start | MediumBui.T_default | Temperature start value on the condenser side [K] |
| Temperature | TEva_start | MediumBui.T_default | Temperature start value on the evaporator side [K] |
Connectors
| Type | Name | Description |
|---|---|---|
| FluidPorts_a | ports_aHeaWat[nPorts_aHeaWat] | Fluid connectors for heating water return (from building) |
| FluidPorts_b | ports_bHeaWat[nPorts_bHeaWat] | Fluid connectors for heating water supply (to building) |
| FluidPorts_a | ports_aChiWat[nPorts_aChiWat] | Fluid connectors for chilled water return (from building) |
| FluidPorts_b | ports_bChiWat[nPorts_bChiWat] | Fluid connectors for chilled water supply (to building) |
| FluidPort_a | port_aSerAmb | Fluid connector for ambient water service supply line |
| FluidPort_b | port_bSerAmb | Fluid connector for ambient water service return line |
| FluidPort_a | port_aSerHea | Fluid connector for heating service supply line |
| FluidPort_b | port_bSerHea | Fluid connector for heating service return line |
| FluidPort_a | port_aSerCoo | Fluid connector for cooling service supply line |
| FluidPort_b | port_bSerCoo | Fluid connector for cooling service return line |
| output RealOutput | PHea | Power drawn by heating system [W] |
| output RealOutput | PCoo | Power drawn by cooling system [W] |
| output RealOutput | PFan | Power drawn by fan motors [W] |
| output RealOutput | PPum | Power drawn by pump motors [W] |
| output RealOutput | QFue_flow[nFue] | Fuel energy input rate [W] |
| Bus | weaBus | Weather data bus |
| input RealInput | THeaWatSupSet | Heating water supply temperature set point [K] |
| input RealInput | TChiWatSupSet | Chilled water supply temperature set point [K] |
| output RealOutput | dHHeaWat_flow | Heating water distributed energy flow rate [W] |
| output RealOutput | dHChiWat_flow | Chilled water distributed energy flow rate [W] |
| input RealInput | THotWatSupSet | Domestic hot water temperature set point for supply to fixtures [K] |
| input RealInput | TColWat | Cold water temperature that is fed to domestic hot water preparation [K] |
| input RealInput | QReqHotWat_flow | Domestic hot water load [W] |
| output RealOutput | dHHotWat_flow | Domestic hot water distributed energy flow rate [W] |
