Buildings.Experimental.DHC.Plants.Cooling.Controls
Package of control sequences for cooling plants
Information
This package contains control sequences for central cooling plants.
Extends from Modelica.Icons.VariantsPackage (Icon for package containing variants).
Package Content
| Name | Description |
|---|---|
 ChilledWaterBypass
|
Controller for chilled water bypass valve |
 ChilledWaterPumpSpeed
|
Controller for up to two headered variable speed chilled water pumps |
 ChillerStage
|
Chiller staging controller for plants with two chillers of the same size |
 Validation
|
Collection of validation models |
Buildings.Experimental.DHC.Plants.Cooling.Controls.ChilledWaterBypass
Controller for chilled water bypass valve
Information
This model implements the chilled water loop bypass valve control logic as follows:
When the plant is on, the PID controller controls the valve opening ratio to reach the scaled mass flow rate setpoint.
The setpoint is mMin_flow multiplied by the number of chillers
that are on. mMin_flow is the minimum mass flow rate required by
one chiller.
This control sequence assumes that all the chillers are identical and the cooling load is evenly split between all of the chillers that are on.
Extends from Modelica.Blocks.Icons.Block (Basic graphical layout of input/output block).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | numChi | Number of chillers | |
| MassFlowRate | mMin_flow | Minimum mass flow rate of single chiller [kg/s] | |
| Real | k | 0.06 | Gain of controller |
| Time | Ti | 60 | Time constant of Integrator block [s] |
| SimpleController | controllerType | Modelica.Blocks.Types.Simple... | Type of controller |
Connectors
| Type | Name | Description |
|---|---|---|
| input BooleanInput | chiOn[numChi] | On signals of the chillers |
| input RealInput | mFloByp | Chilled water bypass loop mass flow rate [kg/s] |
| output RealOutput | y | Bypass valve opening ratio |
Modelica definition
model ChilledWaterBypass
"Controller for chilled water bypass valve"
extends Modelica.Blocks.Icons.Block;
parameter Integer numChi(
min=1)
"Number of chillers";
parameter Modelica.Units.SI.MassFlowRate mMin_flow
"Minimum mass flow rate of single chiller";
parameter Real k(min=0) = 0.06 "Gain of controller";
parameter Modelica.Units.SI.Time Ti(min=Modelica.Constants.small) = 60
"Time constant of Integrator block";
parameter Modelica.Blocks.Types.SimpleController controllerType=
Modelica.Blocks.Types.SimpleController.PI
"Type of controller";
Modelica.Blocks.Interfaces.BooleanInput chiOn[numChi]
"On signals of the chillers";
Modelica.Blocks.Interfaces.RealInput mFloByp(final unit="kg/s")
"Chilled water bypass loop mass flow rate";
Modelica.Blocks.Interfaces.RealOutput y
"Bypass valve opening ratio";
Buildings.Controls.OBC.CDL.Continuous.PIDWithReset
bypValCon(
controllerType=controllerType,
final k=k,
final Ti=Ti,
yMin=0.01,
y_reset=0)
"Chilled water bypass valve controller";
Modelica.Blocks.Math.BooleanToInteger booToInt[numChi]
"Boolean signal to integer";
Buildings.Controls.OBC.CDL.Integers.GreaterThreshold intGreThr
"Greater than zero";
Buildings.Controls.OBC.CDL.Integers.MultiSum numChiOn(nin=numChi)
"Number of chillers on";
Buildings.Controls.OBC.CDL.Conversions.IntegerToReal intToRea
"Integer to real";
Modelica.Blocks.Math.Gain mFloSetSca(k=1/numChi)
"Normalize mass flowrate setpoint";
Modelica.Blocks.Math.Gain mFloBypSca(k=1/(numChi*mMin_flow))
"Normalize the measured mass flowrate";
equation
connect(chiOn, booToInt.u);
connect(booToInt.y, numChiOn.u);
connect(numChiOn.y, intGreThr.u);
connect(intGreThr.y, bypValCon.trigger);
connect(numChiOn.y, intToRea.u);
connect(bypValCon.y, y);
connect(intToRea.y, mFloSetSca.u);
connect(mFloSetSca.y, bypValCon.u_s);
connect(mFloByp, mFloBypSca.u);
connect(mFloBypSca.y, bypValCon.u_m);
connect(y, y);
end ChilledWaterBypass;
Buildings.Experimental.DHC.Plants.Cooling.Controls.ChilledWaterPumpSpeed
Controller for up to two headered variable speed chilled water pumps
Information
This model implements the control logic for variable speed pumps. The staging of pumps is implemented through an instance of Buildings.Applications.BaseClasses.Controls.VariableSpeedPumpStage.
The pump speed is controlled to maintain the pressure difference setpoint through a PID controller.
The model inputs are the measured chilled water mass flow rate
masFloPum and the pressure difference dpMea at a
reference point from the demand side. The output y is a vector
of pump speeds.
The model currently only supports the control of up to two variable speed pumps.
Extends from Modelica.Blocks.Icons.Block (Basic graphical layout of input/output block).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| PressureDifference | dpSetPoi | Pressure difference setpoint [Pa] | |
| Time | tWai | Waiting time [s] | |
| MassFlowRate | m_flow_nominal | Nominal mass flow rate of single chilled water pump [kg/s] | |
| Real | minSpe | 0.05 | Minimum speed ratio required by chilled water pumps [1] |
| MassFlowRate | criPoiFlo | 0.7*m_flow_nominal | Critcal point of flowrate for switching pump on or off [kg/s] |
| MassFlowRate | deaBanFlo | 0.1*m_flow_nominal | Deadband for critical point of flowrate [kg/s] |
| Real | criPoiSpe | 0.5 | Critical point of speed signal for switching on or off |
| Real | deaBanSpe | 0.3 | Deadband for critical point of speed signal |
| Speed Controller | |||
| SimpleController | controllerType | Modelica.Blocks.Types.Simple... | Type of pump speed controller |
| Real | k | 1 | Gain of controller [1] |
| Time | Ti | 60 | Time constant of Integrator block [s] |
| Time | Td | 0.1 | Time constant of Derivative block [s] |
Connectors
| Type | Name | Description |
|---|---|---|
| input RealInput | masFloPum | Total mass flowrate of chilled water pumps [kg/s] |
| input RealInput | dpMea | Measured pressure difference [Pa] |
| output RealOutput | y[numPum] | Pump speed signal [1] |
Modelica definition
model ChilledWaterPumpSpeed
"Controller for up to two headered variable speed chilled water pumps"
extends Modelica.Blocks.Icons.Block;
parameter Modelica.Units.SI.PressureDifference dpSetPoi(displayUnit="Pa")
"Pressure difference setpoint";
parameter Modelica.Units.SI.Time tWai "Waiting time";
parameter Modelica.Units.SI.MassFlowRate m_flow_nominal
"Nominal mass flow rate of single chilled water pump";
parameter Real minSpe(
final unit="1",
final min=0,
final max=1)=0.05
"Minimum speed ratio required by chilled water pumps";
parameter Modelica.Units.SI.MassFlowRate criPoiFlo=0.7*m_flow_nominal
"Critcal point of flowrate for switching pump on or off";
parameter Modelica.Units.SI.MassFlowRate deaBanFlo=0.1*m_flow_nominal
"Deadband for critical point of flowrate";
parameter Real criPoiSpe=0.5
"Critical point of speed signal for switching on or off";
parameter Real deaBanSpe=0.3
"Deadband for critical point of speed signal";
parameter Modelica.Blocks.Types.SimpleController controllerType=
Modelica.Blocks.Types.SimpleController.PI
"Type of pump speed controller";
parameter Real k(
final unit="1",
final min=0)=1
"Gain of controller";
parameter Modelica.Units.SI.Time Ti(final min=Modelica.Constants.small) = 60
"Time constant of Integrator block";
parameter Modelica.Units.SI.Time Td(final min=0) = 0.1
"Time constant of Derivative block";
Modelica.Blocks.Interfaces.RealInput masFloPum(
final unit="kg/s")
"Total mass flowrate of chilled water pumps";
Modelica.Blocks.Interfaces.RealInput dpMea(
final unit="Pa")
"Measured pressure difference";
Modelica.Blocks.Interfaces.RealOutput y[numPum](
each final unit="1",
each final min=0,
each final max=1)
"Pump speed signal";
Modelica.Blocks.Math.Product pumSpe[numPum]
"Output pump speed";
Buildings.Applications.BaseClasses.Controls.VariableSpeedPumpStage pumStaCon(
final tWai=tWai,
final m_flow_nominal=m_flow_nominal,
final minSpe=minSpe,
final criPoiFlo=criPoiFlo,
final deaBanFlo=deaBanFlo,
final criPoiSpe=criPoiSpe,
final deaBanSpe=deaBanSpe)
"Chilled water pump staging control";
Buildings.Controls.OBC.CDL.Continuous.PID
conPID(
final controllerType=controllerType,
final Ti=Ti,
final k=k,
final Td=Td,
r=dpSetPoi)
"PID controller of pump speed";
Modelica.Blocks.Sources.Constant dpSetSca(final k=dpSetPoi)
"Scaled differential pressure setpoint";
protected
final parameter Integer numPum=2
"Number of chilled water pumps";
equation
connect(pumStaCon.masFloPum,masFloPum);
connect(conPID.y,pumStaCon.speSig);
connect(pumStaCon.y,pumSpe.u1);
connect(conPID.y,pumSpe[1].u2);
connect(conPID.y,pumSpe[2].u2);
connect(pumSpe.y,y);
connect(dpSetSca.y,conPID.u_s);
connect(dpMea, conPID.u_m);
end ChilledWaterPumpSpeed;
Buildings.Experimental.DHC.Plants.Cooling.Controls.ChillerStage
Chiller staging controller for plants with two chillers of the same size
Information

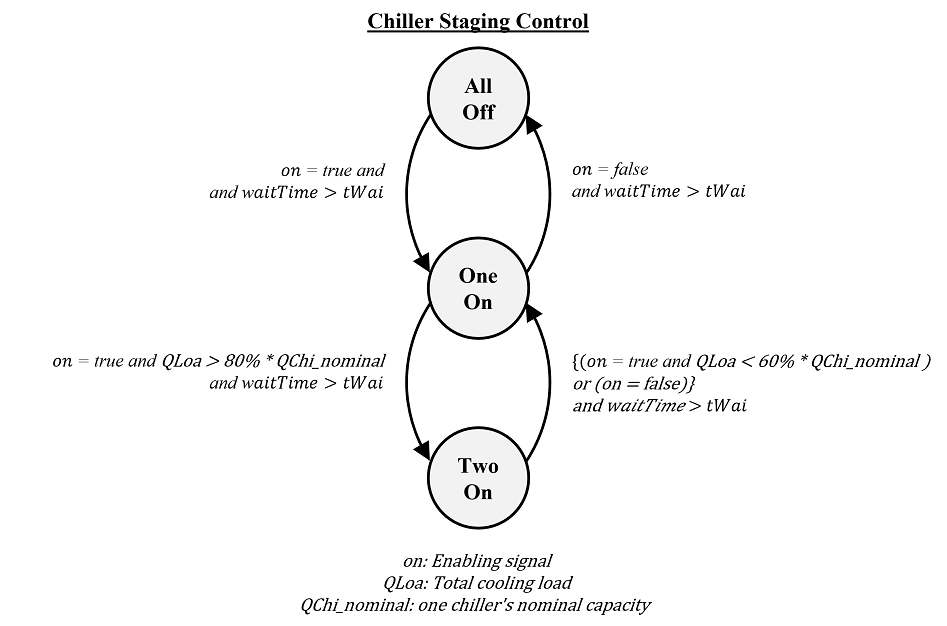

This model implements the staging control logic as follows:
- When the plant enabling signal
onchanges fromfalsetotrue, one chiller is enabled. - When the total cooling load
QLoaexceeds 80 percent (adjustable) of one chiller's nominal capacityQChi_nominal, a second chiller is enabled. - When the total cooling load
QLoadrops below 60 percent (adjustable) of one chiller's nominal capacityQChi_nominal(i.e. 30 percent of both chillers combined), or the plant enabling signalonchanges fromtruetofalse, the second chiller is disabled. - When the plant enabling signal
onchanges fromtruetofalse, the operating chillers will be disabled sequentially. - Parameter
tWaiassures a transitional time is kept between each operation.
It is assumed that both chillers have the same capacity of
QChi_nominal.
Note: This model can be used for plants with two chillers with or without waterside econimizer (WSE). For plants with WSE, extra control logic on top of this model needs to be added.
.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | Buildings.Media.Water | Service side medium | |
| Time | tWai | Waiting time [s] | |
| Power | QChi_nominal | Nominal cooling capacity (negative) [W] | |
| Power | staUpThr | -0.8*QChi_nominal | Stage up load threshold(from one to two chillers) [W] |
| Power | staDowThr | -0.6*QChi_nominal | Stage down load threshold(from two to one chiller) [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Service side medium | |
| input BooleanInput | on | Enabling signal of the plant. True: chiller should be enabled |
| input RealInput | TChiWatRet | Chilled water return temperature |
| input RealInput | TChiWatSup | Chilled water supply temperature |
| input RealInput | mFloChiWat | Chilled water mass flow rate |
| output BooleanOutput | y[2] | On/off signal for the chillers - false: off; true: on |
Modelica definition
model ChillerStage
"Chiller staging controller for plants with two chillers of the same size"
replaceable package Medium=Buildings.Media.Water
constrainedby Modelica.Media.Interfaces.PartialMedium
"Service side medium";
parameter Modelica.Units.SI.Time tWai "Waiting time";
parameter Modelica.Units.SI.Power QChi_nominal(final max=0)
"Nominal cooling capacity (negative)";
parameter Modelica.Units.SI.Power staUpThr(final min=0) = -0.8*QChi_nominal
"Stage up load threshold(from one to two chillers)";
parameter Modelica.Units.SI.Power staDowThr(final min=0) = -0.6*QChi_nominal
"Stage down load threshold(from two to one chiller)";
inner Modelica.StateGraph.StateGraphRoot stateGraphRoot
"State graph root";
Modelica.Blocks.Interfaces.BooleanInput on
"Enabling signal of the plant. True: chiller should be enabled";
Modelica.Blocks.Interfaces.RealInput TChiWatRet
"Chilled water return temperature";
Modelica.Blocks.Interfaces.RealInput TChiWatSup
"Chilled water supply temperature";
Modelica.Blocks.Interfaces.RealInput mFloChiWat
"Chilled water mass flow rate";
Modelica.Blocks.Interfaces.BooleanOutput y[2]
"On/off signal for the chillers - false: off; true: on";
Modelica.StateGraph.InitialStep off(nIn=1, nOut=1)
"No cooling is demanded";
Modelica.StateGraph.StepWithSignal oneOn(
nOut=2,
nIn=2)
"Status of one chiller on";
Modelica.StateGraph.StepWithSignal twoOn(nOut=1, nIn=1)
"Status of two chillers on";
Modelica.StateGraph.TransitionWithSignal offToOne(
enableTimer=true,
waitTime=tWai)
"Condition of transition from off to one chiller on";
Modelica.StateGraph.TransitionWithSignal oneToTwo(
enableTimer=true,
waitTime=tWai)
"Condition of transition from one chiller to two chillers";
Modelica.StateGraph.TransitionWithSignal twoToOne(
enableTimer=true,
waitTime=tWai) "Condition of transion from two chillers to one chiller";
Modelica.StateGraph.TransitionWithSignal oneToOff(
enableTimer=true,
waitTime=tWai)
"Condition of transition from one chiller to off";
Buildings.Controls.OBC.CDL.Continuous.Hysteresis thrOneToTwo(uLow=-staDowThr/
QChi_nominal, uHigh=-staUpThr/QChi_nominal)
"Threshold of turning two chillers on";
Modelica.Blocks.Logical.Not thrTwoToOne
"Threshold of turning off the second chiller";
Modelica.Blocks.Math.Add dT(
final k1=-1,
final k2=+1)
"Temperature difference";
Modelica.Blocks.Math.Product pro
"Product";
Modelica.Blocks.Math.Gain plr(final k=cp_default/QChi_nominal)
"Specific heat multiplier to calculate heat flow rate";
Buildings.Controls.OBC.CDL.Logical.Or Or "On signal for either chiller";
Modelica.Blocks.Logical.Not notOn "on switches to false";
Modelica.Blocks.Logical.Or TwoToOne
"Conditions that turn off the second chiller";
protected
final parameter Medium.ThermodynamicState sta_default=Medium.setState_pTX(
T=Medium.T_default,
p=Medium.p_default,
X=Medium.X_default)
"Medium state at default properties";
final parameter Modelica.Units.SI.SpecificHeatCapacity cp_default=
Medium.specificHeatCapacityCp(sta_default)
"Specific heat capacity of the fluid";
equation
connect(off.outPort[1],offToOne.inPort);
connect(oneToTwo.outPort,twoOn.inPort[1]);
connect(twoToOne.outPort,oneOn.inPort[2]);
connect(oneOn.outPort[2],oneToOff.inPort);
connect(oneOn.outPort[1],oneToTwo.inPort);
connect(oneToTwo.condition,thrOneToTwo.y);
connect(dT.y,pro.u1);
connect(plr.u, pro.y);
connect(plr.y, thrOneToTwo.u);
connect(dT.u1,TChiWatRet);
connect(TChiWatSup,dT.u2);
connect(pro.u2,mFloChiWat);
connect(oneToTwo.condition, thrTwoToOne.u);
connect(oneOn.active, Or.u1);
connect(twoOn.active, Or.u2);
connect(Or.y, y[1]);
connect(twoOn.active, y[2]);
connect(on, notOn.u);
connect(twoOn.outPort[1],twoToOne.inPort);
connect(offToOne.outPort,oneOn.inPort[1]);
connect(oneToOff.outPort,off.inPort[1]);
connect(on, offToOne.condition);
connect(thrTwoToOne.y, TwoToOne.u2);
connect(notOn.y, TwoToOne.u1);
connect(TwoToOne.y, twoToOne.condition);
connect(notOn.y, oneToOff.condition);
end ChillerStage;
