Buildings.Fluid.HeatExchangers.Examples
Collection of models that illustrate model use and test models
Information
This package contains examples for the use of models that can be found in Buildings.Fluid.HeatExchangers.
Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).
Package Content
| Name | Description |
|---|---|
 AirHeater_T
|
Example model for the heater with prescribed outlet temperature and air as the medium |
| AirHeater_u
|
Example model for the heater with prescribed heat input and air as the medium |
 DryCoilCounterFlowMassFlow
|
Model of a cooling coil that tests variable mass flow rates |
| DryCoilCounterFlowPControl
|
Model that demonstrates use of a heat exchanger without condensation and with feedback control |
| DryCoilDiscretized
|
Model that demonstrates use of a finite volume model of a heat exchanger without condensation |
| DryCoilDiscretizedPControl
|
Model that demonstrates use of a finite volume model of a heat exchanger without condensation and with feedback control |
| DryCoilEffectivenessNTUMassFlow
|
Model of epsilon-NTU dry coil that tests variable mass flow rates |
| DryCoilEffectivenessNTUPControl
|
Model that demonstrates use of a heat exchanger without condensation that uses the epsilon-NTU relation with feedback control |
| PlateHeatExchangerEffectivenessNTUPControl
|
Model that demonstrates use of a plate heat exchanger without condensation that uses the epsilon-NTU relation with feedback control |
| WaterCooler_T
|
Example model for the sensible cooler with prescribed outlet temperature and water as the medium |
| WaterHeater_T
|
Example model for the heater with prescribed outlet temperature and water as the medium |
| WaterHeater_u
|
Example model for the heater with prescribed heat input and water as the medium |
| WetCoilCounterFlowMassFlow
|
Model of a cooling coil that tests variable mass flow rates |
| WetCoilCounterFlowPControl
|
Model that demonstrates use of a heat exchanger with condensation and with feedback control |
| WetCoilCounterFlowPIControlAutoTuning
|
Model that demonstrates the use of a heat exchanger with condensation and with autotuning PI feedback control |
| WetCoilCounterFlowPIDControlAutoTuning
|
Model that demonstrates the use of a heat exchanger with condensation and with autotuning PID feedback control |
| WetCoilDiscretizedMassFlow
|
Model of a cooling coil that tests variable mass flow rates |
| WetCoilDiscretizedPControl
|
Model that demonstrates use of a finite volume model of a heat exchanger with condensation and feedback control |
| WetCoilEffectivenessNTUMassFlow
|
Model that tests the wet coil effectiveness-NTU model with variable mass flow rates |
 BaseClasses
|
Package with base classes for Buildings.Fluid.HeatExchangers.Examples |

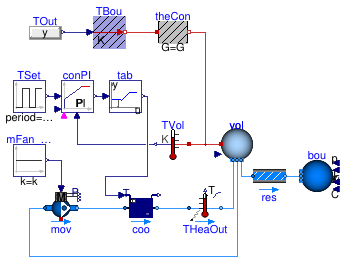

Buildings.Fluid.HeatExchangers.Examples.AirHeater_T
Example model for the heater with prescribed outlet temperature and air as the medium
Information
This example illustrates how to use the heater model that takes as an input the leaving fluid temperature.
The model consist of an air volume with heat loss to the ambient. The set point of the air temperature is different between night and day. The heater tracks the set point temperature, except for the periods in which the air temperature is above the set point.
See Buildings.Fluid.HeatExchangers.Examples.AirHeater_u for a model that takes the heating power as an input.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater (Base class for example model for the heater and cooler).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | PartialMedium | Medium model | |
| Volume | V | 6*6*2.7 | Volume [m3] |
| MassFlowRate | m_flow_nominal | V*1.2*6/3600 | Nominal mass flow rate [kg/s] |
| HeatFlowRate | Q_flow_nominal | 30*6*6 | Nominal heat loss of the room [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Medium model | |
Modelica definition
model AirHeater_T
"Example model for the heater with prescribed outlet temperature and air as the medium"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater(
redeclare package Medium = Buildings.Media.Air,
m_flow_nominal=V*1.2*6/3600,
Q_flow_nominal=30*6*6,
mov(dp_nominal=1200, nominalValuesDefineDefaultPressureCurve=true));
Heater_T hea(
redeclare package Medium = Medium,
m_flow_nominal=m_flow_nominal,
dp_nominal=1000,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
QMax_flow=Q_flow_nominal) "Heater";
Controls.SetPoints.Table tab(table=[0,273.15 + 15; 1,273.15 + 30])
"Temperature set point";
equation
connect(hea.port_b, THeaOut.port_a);
connect(conPI.y, tab.u);
connect(tab.y, hea.TSet);
connect(mov.port_b, hea.port_a);
end AirHeater_T;

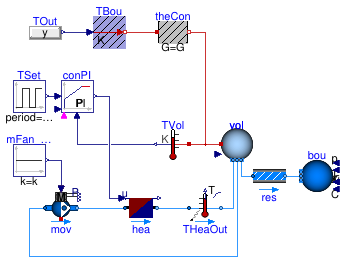

Buildings.Fluid.HeatExchangers.Examples.AirHeater_u
Example model for the heater with prescribed heat input and air as the medium
Information
This example illustrates how to use the heater model that takes as an input the heat added to the medium.
The model consist of an air volume with heat loss to the ambient. The set point of the air temperature is different between night and day. The heater tracks the set point temperature, except for the periods in which the air temperature is above the set point.
See Buildings.Fluid.HeatExchangers.Examples.AirHeater_T for a model that takes the leaving air temperature as an input.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater (Base class for example model for the heater and cooler).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | PartialMedium | Medium model | |
| Volume | V | 6*6*2.7 | Volume [m3] |
| MassFlowRate | m_flow_nominal | V*1.2*6/3600 | Nominal mass flow rate [kg/s] |
| HeatFlowRate | Q_flow_nominal | 30*6*6 | Nominal heat loss of the room [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Medium model | |
Modelica definition
model AirHeater_u
"Example model for the heater with prescribed heat input and air as the medium"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater(
redeclare package Medium = Buildings.Media.Air,
m_flow_nominal=V*1.2*6/3600,
Q_flow_nominal=30*6*6,
mov(nominalValuesDefineDefaultPressureCurve=true, dp_nominal=1200));
HeaterCooler_u hea(
redeclare package Medium = Medium,
m_flow_nominal=m_flow_nominal,
dp_nominal=1000,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
Q_flow_nominal=Q_flow_nominal) "Heater";
equation
connect(hea.port_b, THeaOut.port_a);
connect(conPI.y, hea.u);
connect(mov.port_b, hea.port_a);
end AirHeater_u;

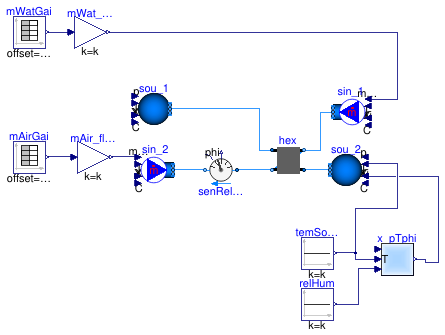

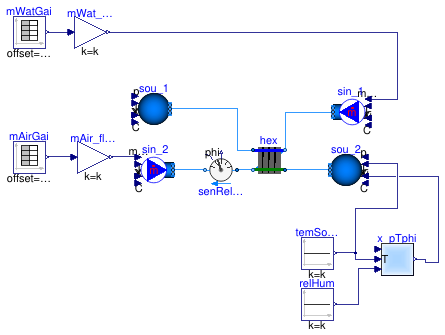

Buildings.Fluid.HeatExchangers.Examples.DryCoilCounterFlowMassFlow
Model of a cooling coil that tests variable mass flow rates
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.DryCoilCounterFlow for different inlet conditions.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow (Partial model of epsilon-NTU coil that tests variable mass flow rates).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | Nominal water inlet temperature [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | Nominal water outlet temperature [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | Nominal air inlet temperature [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | Nominal air outlet temperature [K] |
| HeatFlowRate | Q_flow_nominal | m1_flow_nominal*4200*(T_a1_n... | Nominal heat transfer [W] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model DryCoilCounterFlowMassFlow
"Model of a cooling coil that tests variable mass flow rates"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow
(
sou_1(nPorts=1),
sin_1(nPorts=1),
sou_2(nPorts=1),
sin_2(nPorts=1));
DryCoilCounterFlow hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
show_T=true,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
allowFlowReversal1=true,
allowFlowReversal2=true,
dp1_nominal(displayUnit="Pa") = 3000,
UA_nominal=Q_flow_nominal/Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial);
Sensors.RelativeHumidityTwoPort senRelHum( redeclare package Medium =
Medium2, m_flow_nominal=m2_flow_nominal);
equation
connect(sou_1.ports[1], hex.port_a1);
connect(hex.port_b1, sin_1.ports[1]);
connect(hex.port_a2, sou_2.ports[1]);
connect(senRelHum.port_a, hex.port_b2);
connect(senRelHum.port_b, sin_2.ports[1]);
end DryCoilCounterFlowMassFlow;

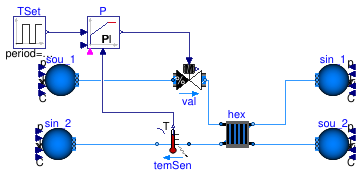

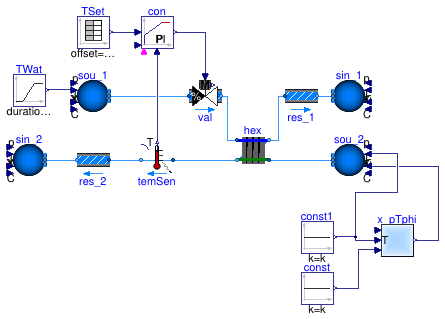

Buildings.Fluid.HeatExchangers.Examples.DryCoilCounterFlowPControl
Model that demonstrates use of a heat exchanger without condensation and with feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.DryCoilCounterFlow. The valve on the water-side is regulated to track a setpoint temperature for the air outlet.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition

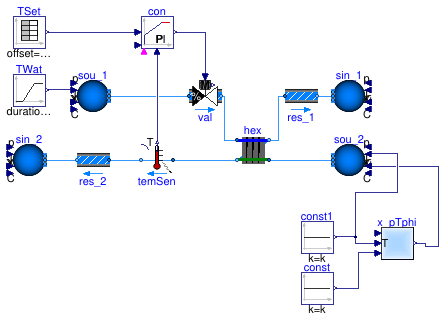

model DryCoilCounterFlowPControl
"Model that demonstrates use of a heat exchanger without condensation and with feedback control"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water;
package Medium2 = Buildings.Media.Air;
parameter Modelica.Units.SI.Temperature T_a1_nominal=5 + 273.15;
parameter Modelica.Units.SI.Temperature T_b1_nominal=10 + 273.15;
parameter Modelica.Units.SI.Temperature T_a2_nominal=30 + 273.15;
parameter Modelica.Units.SI.Temperature T_b2_nominal=15 + 273.15;
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=0.1
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*4200
/1000*(T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Buildings.Fluid.Sources.Boundary_pT sin_2(
redeclare package Medium = Medium2,
nPorts=1,
use_p_in=false,
p(displayUnit="Pa") = 101325,
T=303.15);
Buildings.Fluid.Sources.Boundary_pT sou_2(
redeclare package Medium = Medium2,
nPorts=1,
T=T_a2_nominal,
X={0.02,1 - 0.02},
use_T_in=true,
use_X_in=true,
p(displayUnit="Pa") = 101325 + 300);
Buildings.Fluid.Sources.Boundary_pT sin_1(
redeclare package Medium = Medium1,
nPorts=1,
use_p_in=false,
p=300000,
T=293.15);
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
nPorts=1,
use_T_in=true,
p=300000 + 12000);
Buildings.Fluid.FixedResistances.PressureDrop res_2(
from_dp=true,
redeclare package Medium = Medium2,
dp_nominal=100,
m_flow_nominal=m2_flow_nominal);
Buildings.Fluid.FixedResistances.PressureDrop res_1(
from_dp=true,
redeclare package Medium = Medium1,
dp_nominal=3000,
m_flow_nominal=m1_flow_nominal);
Buildings.Fluid.Sensors.TemperatureTwoPort temSen(redeclare package Medium =
Medium2, m_flow_nominal=m2_flow_nominal);
Buildings.Fluid.Actuators.Valves.TwoWayEqualPercentage val(
redeclare package Medium = Medium1,
m_flow_nominal=m1_flow_nominal,
dpValve_nominal=6000) "Valve model";
Modelica.Blocks.Sources.TimeTable TSet(table=[0,288.15; 600,288.15; 600,
298.15; 1200,298.15; 1800,283.15; 2400,283.15; 2400,288.15])
"Setpoint temperature";
Buildings.Fluid.HeatExchangers.DryCoilCounterFlow hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
allowFlowReversal1=true,
allowFlowReversal2=true,
dp1_nominal(displayUnit="Pa") = 3000,
UA_nominal=m1_flow_nominal*4200*(T_a1_nominal - T_b1_nominal)/
Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
show_T=true,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial);
Modelica.Blocks.Sources.Constant const(k=0.8);
Buildings.Utilities.Psychrometrics.X_pTphi x_pTphi(use_p_in=false);
Modelica.Blocks.Sources.Constant const1(k=T_a2_nominal);
Buildings.Controls.Continuous.LimPID con(
Td=1,
reverseActing=false,
yMin=0,
k=0.1,
Ti=60) "Controller";
Modelica.Blocks.Sources.Ramp TWat(
height=30,
offset=T_a1_nominal,
startTime=300,
duration=2000) "Water temperature, raised to high value at t=3000 s";

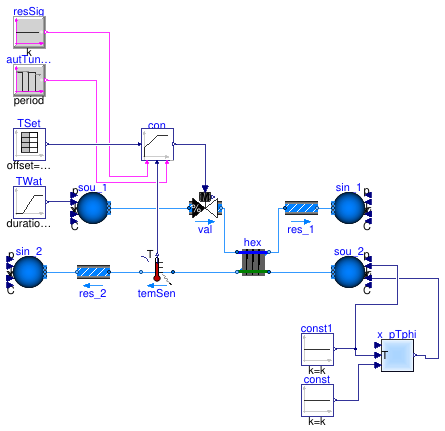

equation
connect(hex.port_b1, res_1.port_a);
connect(val.port_b, hex.port_a1);
connect(sou_1.ports[1], val.port_a);
connect(sin_1.ports[1], res_1.port_b);
connect(sin_2.ports[1], res_2.port_b);
connect(sou_2.ports[1], hex.port_a2);
connect(temSen.port_b, res_2.port_a);
connect(x_pTphi.X, sou_2.X_in);
connect(const.y, x_pTphi.phi);
connect(const1.y, x_pTphi.T);
connect(const1.y, sou_2.T_in);
connect(TSet.y, con.u_s);
connect(temSen.T, con.u_m);
connect(TWat.y, sou_1.T_in);
connect(con.y, val.y);
connect(temSen.port_a, hex.port_b2);
end DryCoilCounterFlowPControl;

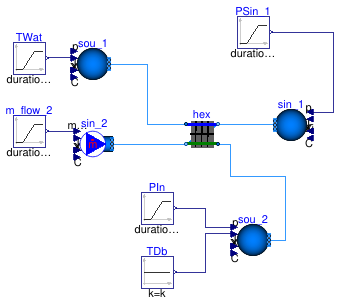

Buildings.Fluid.HeatExchangers.Examples.DryCoilDiscretized
Model that demonstrates use of a finite volume model of a heat exchanger without condensation
Information
This model tests Buildings.Fluid.HeatExchangers.DryCoilDiscretized for different inlet conditions.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 60 + 273.15 | [K] |
| Temperature | T_b1_nominal | 40 + 273.15 | [K] |
| Temperature | T_a2_nominal | 5 + 273.15 | [K] |
| Temperature | T_b2_nominal | 20 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 5 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model DryCoilDiscretized
"Model that demonstrates use of a finite volume model of a heat exchanger without condensation"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water;
package Medium2 = Buildings.Media.Air;
parameter Modelica.Units.SI.Temperature T_a1_nominal=60 + 273.15;
parameter Modelica.Units.SI.Temperature T_b1_nominal=40 + 273.15;
parameter Modelica.Units.SI.Temperature T_a2_nominal=5 + 273.15;
parameter Modelica.Units.SI.Temperature T_b2_nominal=20 + 273.15;
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=5
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*4200
/1000*(T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Buildings.Fluid.HeatExchangers.DryCoilDiscretized hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
nPipPar=1,
nPipSeg=3,
nReg=2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
UA_nominal=m1_flow_nominal*4200*(T_a1_nominal-T_b1_nominal)/
Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
dp2_nominal=200,
dp1_nominal=5000,
show_T=true,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
from_dp1=true,
from_dp2=true);
Sources.MassFlowSource_T sin_2(
redeclare package Medium = Medium2,
nPorts=1,
use_m_flow_in=true,
T=303.15);
Modelica.Blocks.Sources.Ramp PIn(
offset=101525,
height=-199,
duration=60,
startTime=120);
Buildings.Fluid.Sources.Boundary_pT sou_2(
redeclare package Medium = Medium2,
use_p_in=true,
use_T_in=true,
T=283.15,
nPorts=1);
Modelica.Blocks.Sources.Ramp TWat(
duration=60,
startTime=60,
height=5,
offset=273.15 + 60) "Water temperature";
Modelica.Blocks.Sources.Constant TDb(k=273.15 + 5) "Drybulb temperature";
Buildings.Fluid.Sources.Boundary_pT sin_1(
redeclare package Medium = Medium1,
p=300000,
T=293.15,
use_p_in=true,
nPorts=1);
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
p=300000 + 5000,
use_T_in=true,
T=293.15,
nPorts=1);
Modelica.Blocks.Sources.Ramp PSin_1(
startTime=240,
offset=300000,
height=4990,
duration=60);
Modelica.Blocks.Sources.Ramp m_flow_2(
duration=60,
startTime=120,
height=28 - 0.124,
offset=-28) "Mass flow rate on air side";
equation
connect(PIn.y,sou_2. p_in);
connect(TDb.y, sou_2.T_in);
connect(TWat.y, sou_1.T_in);
connect(PSin_1.y, sin_1.p_in);
connect(sou_1.ports[1], hex.port_a1);
connect(sou_2.ports[1], hex.port_a2);
connect(sin_2.ports[1], hex.port_b2);
connect(hex.port_b1, sin_1.ports[1]);
connect(m_flow_2.y, sin_2.m_flow_in);
end DryCoilDiscretized;

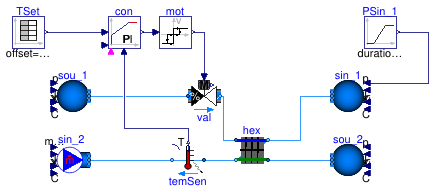

Buildings.Fluid.HeatExchangers.Examples.DryCoilDiscretizedPControl
Model that demonstrates use of a finite volume model of a heat exchanger without condensation and with feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.DryCoilDiscretized. The valve on the water-side is regulated to track a setpoint temperature for the air outlet.
Note that between the controller output and the valve is a model of a motor that has hysteresis. The events generated by the motor model can lead to a significantly higher computing time. In most applications, this level of modeling detail is not justified.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 60 + 273.15 | [K] |
| Temperature | T_b1_nominal | 50 + 273.15 | [K] |
| Temperature | T_a2_nominal | 20 + 273.15 | [K] |
| Temperature | T_b2_nominal | 40 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 5 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model DryCoilDiscretizedPControl
"Model that demonstrates use of a finite volume model of a heat exchanger without condensation and with feedback control"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water "Medium model for water";
package Medium2 = Buildings.Media.Air "Medium model for air";
parameter Modelica.Units.SI.Temperature T_a1_nominal=60 + 273.15;
parameter Modelica.Units.SI.Temperature T_b1_nominal=50 + 273.15;
parameter Modelica.Units.SI.Temperature T_a2_nominal=20 + 273.15;
parameter Modelica.Units.SI.Temperature T_b2_nominal=40 + 273.15;
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=5
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*4200
/1000*(T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Sources.MassFlowSource_T sin_2( redeclare
package Medium = Medium2,
nPorts=1,
m_flow=-10.5,
T=303.15);
Buildings.Fluid.Sources.Boundary_pT sou_2( redeclare
package Medium = Medium2,
nPorts=1,
use_p_in=false,
use_T_in=false,
p(displayUnit="Pa") = 101625,
T=T_a2_nominal);
Buildings.Fluid.Sources.Boundary_pT sin_1( redeclare
package Medium = Medium1,
p=300000,
T=293.15,
use_p_in=true,
nPorts=1);
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
p=300000 + 9000,
nPorts=1,
use_T_in=false,
T=T_a1_nominal);
Modelica.Blocks.Sources.Ramp PSin_1(
duration=60,
height=5000,
startTime=240,
offset=300000);
Buildings.Fluid.Sensors.TemperatureTwoPort temSen(redeclare package Medium =
Medium2, m_flow_nominal=m2_flow_nominal);
Buildings.Fluid.Actuators.Valves.TwoWayEqualPercentage val(
redeclare package Medium = Medium1,
l=0.005,
m_flow_nominal=m1_flow_nominal,
use_strokeTime=false,
dpFixed_nominal=2000 + 3000,
dpValve_nominal=6000) "Valve model";
Modelica.Blocks.Sources.TimeTable TSet(table=[0,298.15; 600,298.15; 600,
303.15; 1200,303.15; 1800,298.15; 2400,298.15; 2400,304.15])
"Setpoint temperature";
Buildings.Fluid.HeatExchangers.DryCoilDiscretized hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
show_T=true,
nPipPar=1,
nPipSeg=3,
nReg=4,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
UA_nominal=m1_flow_nominal*4200*(T_a1_nominal-T_b1_nominal)/
Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
dp1_nominal(displayUnit="Pa") = 0,
dp2_nominal(displayUnit="Pa") = 300,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
from_dp1=true,
from_dp2=true);
Buildings.Fluid.Actuators.Motors.IdealMotor mot(tOpe=60) "Motor model";
Buildings.Controls.Continuous.LimPID con(
k=1,
Ti=60,
controllerType=Modelica.Blocks.Types.SimpleController.P,
Td=60) "Controller";
equation
connect(PSin_1.y, sin_1.p_in);
connect(val.port_b, hex.port_a1);
connect(sou_1.ports[1], val.port_a);
connect(sou_2.ports[1], hex.port_a2);
connect(mot.y, val.y);
connect(hex.port_b2, temSen.port_a);
connect(TSet.y, con.u_s);
connect(temSen.T, con.u_m);
connect(con.y, mot.u);
connect(hex.port_b1, sin_1.ports[1]);
connect(temSen.port_b, sin_2.ports[1]);
end DryCoilDiscretizedPControl;

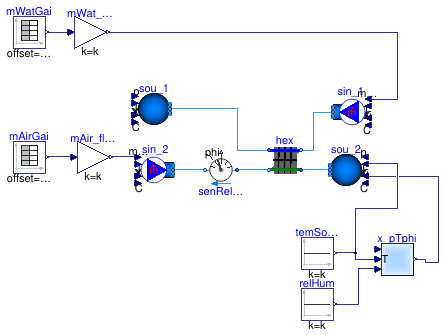

Buildings.Fluid.HeatExchangers.Examples.DryCoilEffectivenessNTUMassFlow
Model of epsilon-NTU dry coil that tests variable mass flow rates
Information
This model tests Buildings.Fluid.HeatExchangers.DryCoilEffectivenessNTU for different mass flow rates.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow (Partial model of epsilon-NTU coil that tests variable mass flow rates).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | Nominal water inlet temperature [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | Nominal water outlet temperature [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | Nominal air inlet temperature [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | Nominal air outlet temperature [K] |
| HeatFlowRate | Q_flow_nominal | m1_flow_nominal*4200*(T_a1_n... | Nominal heat transfer [W] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model DryCoilEffectivenessNTUMassFlow
"Model of epsilon-NTU dry coil that tests variable mass flow rates"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow
(
sou_1(nPorts=1),
sin_1(nPorts=1),
sou_2(nPorts=1),
sin_2(nPorts=1));
Buildings.Fluid.HeatExchangers.DryCoilEffectivenessNTU hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
configuration=Buildings.Fluid.Types.HeatExchangerConfiguration.CounterFlow,
allowFlowReversal1=true,
allowFlowReversal2=true,
dp1_nominal(displayUnit="Pa") = 3000,
Q_flow_nominal=Q_flow_nominal,
T_a1_nominal=T_a1_nominal,
T_a2_nominal=T_a2_nominal,
show_T=true);
Buildings.Fluid.Sensors.RelativeHumidityTwoPort senRelHum(
redeclare package Medium =
Medium2, m_flow_nominal=m2_flow_nominal,
initType=Modelica.Blocks.Types.Init.InitialState);
equation
connect(sou_1.ports[1], hex.port_a1);
connect(hex.port_b1, sin_1.ports[1]);
connect(hex.port_a2, sou_2.ports[1]);
connect(senRelHum.port_a, hex.port_b2);
connect(senRelHum.port_b, sin_2.ports[1]);
end DryCoilEffectivenessNTUMassFlow;

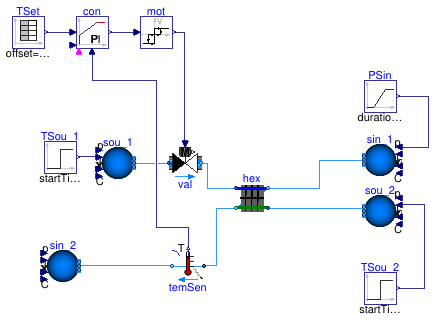

Buildings.Fluid.HeatExchangers.Examples.DryCoilEffectivenessNTUPControl
Model that demonstrates use of a heat exchanger without condensation that uses the epsilon-NTU relation with feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.DryCoilEffectivenessNTU. The valve on the water-side is regulated to track a setpoint temperature for the air outlet.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 60 + 273.15 | Temperature at nominal conditions as port a1 [K] |
| Temperature | T_b1_nominal | 50 + 273.15 | Temperature at nominal conditions as port b1 [K] |
| Temperature | T_a2_nominal | 20 + 273.15 | Temperature at nominal conditions as port a2 [K] |
| Temperature | T_b2_nominal | 40 + 273.15 | Temperature at nominal conditions as port b2 [K] |
| MassFlowRate | m1_flow_nominal | 5 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model DryCoilEffectivenessNTUPControl
"Model that demonstrates use of a heat exchanger without condensation that uses the epsilon-NTU relation with feedback control"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water "Medium model for water";
package Medium2 = Buildings.Media.Air "Medium model for air";
parameter Modelica.Units.SI.Temperature T_a1_nominal=60 + 273.15
"Temperature at nominal conditions as port a1";
parameter Modelica.Units.SI.Temperature T_b1_nominal=50 + 273.15
"Temperature at nominal conditions as port b1";
parameter Modelica.Units.SI.Temperature T_a2_nominal=20 + 273.15
"Temperature at nominal conditions as port a2";
parameter Modelica.Units.SI.Temperature T_b2_nominal=40 + 273.15
"Temperature at nominal conditions as port b2";
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=5
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*4200
/1000*(T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Buildings.Fluid.Sources.Boundary_pT sin_2(
redeclare package Medium = Medium2,
use_p_in=false,
p(displayUnit="Pa") = 101325,
T=303.15,
nPorts=1) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sou_2(
redeclare package Medium = Medium2,
nPorts=1,
use_p_in=false,
use_T_in=false,
p(displayUnit="Pa") = 101625,
T=T_a2_nominal) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sin_1(
redeclare package Medium = Medium1,
use_p_in=false,
p=300000,
T=293.15,
nPorts=1) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
p=300000 + 9000,
nPorts=1,
use_T_in=false,
T=T_a1_nominal)
"Boundary condition";
Buildings.Fluid.Sensors.TemperatureTwoPort temSen(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal)
"Temperature sensor";
Buildings.Fluid.Actuators.Valves.TwoWayEqualPercentage val(
redeclare package Medium = Medium1,
l=0.005,
m_flow_nominal=m1_flow_nominal,
dpFixed_nominal=2000 + 3000,
dpValve_nominal=6000) "Valve";
Buildings.Controls.Continuous.LimPID P(
Ti=30,
k=0.1,
Td=1)
"Controller";
Modelica.Blocks.Sources.Pulse TSet(
amplitude=5,
period=3600,
offset=273.15 + 22) "Temperature setpoint";
Buildings.Fluid.HeatExchangers.DryCoilEffectivenessNTU hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
show_T=true,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
Q_flow_nominal=m1_flow_nominal*4200*(T_a1_nominal-T_b1_nominal),
configuration=Buildings.Fluid.Types.HeatExchangerConfiguration.CounterFlow,
T_a1_nominal=T_a1_nominal,
T_a2_nominal=T_a2_nominal,
dp1_nominal(displayUnit="Pa") = 0,
dp2_nominal(displayUnit="Pa") = 200 + 100)
"Heat exchanger";
equation
connect(val.port_b, hex.port_a1);
connect(sou_1.ports[1], val.port_a);
connect(sou_2.ports[1], hex.port_a2);
connect(hex.port_b2, temSen.port_a);
connect(TSet.y, P.u_s);
connect(temSen.T, P.u_m);
connect(P.y, val.y);
connect(hex.port_b1, sin_1.ports[1]);
connect(temSen.port_b, sin_2.ports[1]);
end DryCoilEffectivenessNTUPControl;
Buildings.Fluid.HeatExchangers.Examples.PlateHeatExchangerEffectivenessNTUPControl
Model that demonstrates use of a plate heat exchanger without condensation that uses the epsilon-NTU relation with feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.PlateHeatExchangerEffectivenessNTU. The valve on the water-side is regulated to track a setpoint temperature for the water outlet.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 60 + 273.15 | Temperature at nominal conditions as port a1 [K] |
| Temperature | T_b1_nominal | 50 + 273.15 | Temperature at nominal conditions as port b1 [K] |
| Temperature | T_a2_nominal | 20 + 273.15 | Temperature at nominal conditions as port a2 [K] |
| Temperature | T_b2_nominal | 40 + 273.15 | Temperature at nominal conditions as port b2 [K] |
| MassFlowRate | m1_flow_nominal | 0.01 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*(T_a1_nomina... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model PlateHeatExchangerEffectivenessNTUPControl
"Model that demonstrates use of a plate heat exchanger without condensation that uses the epsilon-NTU relation with feedback control"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water "Medium model for water";
package Medium2 = Buildings.Media.Water "Medium model for water";
parameter Modelica.Units.SI.Temperature T_a1_nominal=60 + 273.15
"Temperature at nominal conditions as port a1";
parameter Modelica.Units.SI.Temperature T_b1_nominal=50 + 273.15
"Temperature at nominal conditions as port b1";
parameter Modelica.Units.SI.Temperature T_a2_nominal=20 + 273.15
"Temperature at nominal conditions as port a2";
parameter Modelica.Units.SI.Temperature T_b2_nominal=40 + 273.15
"Temperature at nominal conditions as port b2";
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=0.01
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*(
T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Buildings.Fluid.Sources.Boundary_pT sin_2(
redeclare package Medium = Medium2,
use_p_in=false,
p(displayUnit="Pa") = 300000,
T=303.15,
nPorts=1) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sou_2(
redeclare package Medium = Medium2,
nPorts=1,
use_p_in=false,
use_T_in=false,
p(displayUnit="Pa") = 305000,
T=T_a2_nominal) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sin_1(
redeclare package Medium = Medium1,
use_p_in=false,
p=300000,
T=293.15,
nPorts=1) "Boundary condition";
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
p=300000 + 9000,
nPorts=1,
use_T_in=false,
T=T_a1_nominal)
"Boundary condition";
Buildings.Fluid.Sensors.TemperatureTwoPort temSen(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal)
"Temperature sensor";
Buildings.Fluid.Actuators.Valves.TwoWayEqualPercentage val(
redeclare package Medium = Medium1,
l=0.005,
m_flow_nominal=m1_flow_nominal,
dpFixed_nominal=2000 + 3000,
dpValve_nominal=6000) "Valve";
Buildings.Controls.Continuous.LimPID P(
Ti=30,
k=0.1,
Td=1)
"Controller";
Modelica.Blocks.Sources.Pulse TSet(
amplitude=5,
period=3600,
offset=273.15 + 22) "Temperature setpoint";
Buildings.Fluid.HeatExchangers.PlateHeatExchangerEffectivenessNTU hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
show_T=true,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
configuration=Buildings.Fluid.Types.HeatExchangerConfiguration.CounterFlow,
dp1_nominal(displayUnit="Pa") = 0,
dp2_nominal(displayUnit="Pa") = 3000,
use_Q_flow_nominal=false,
eps_nominal=0.5)
"Heat exchanger";
equation
connect(val.port_b, hex.port_a1);
connect(sou_1.ports[1], val.port_a);
connect(sou_2.ports[1], hex.port_a2);
connect(hex.port_b2, temSen.port_a);
connect(TSet.y, P.u_s);
connect(temSen.T, P.u_m);
connect(P.y, val.y);
connect(hex.port_b1, sin_1.ports[1]);
connect(temSen.port_b, sin_2.ports[1]);
end PlateHeatExchangerEffectivenessNTUPControl;
Buildings.Fluid.HeatExchangers.Examples.WaterCooler_T
Example model for the sensible cooler with prescribed outlet temperature and water as the medium
Information
This example illustrates how to use the sensible cooler model that takes as an input the leaving fluid temperature.
The model consist of a water volume with heat gain from the ambient. The set point of the water temperature is different between night and day. The heater tracks the set point temperature, except for the periods in which the water temperature is above the set point.
See Buildings.Fluid.HeatExchangers.Examples.WaterHeater_u for a model that takes the heating power as an input.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater (Base class for example model for the heater and cooler).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | PartialMedium | Medium model | |
| Volume | V | 6*6*2.7 | Volume [m3] |
| MassFlowRate | m_flow_nominal | V*1000/3600 | Nominal mass flow rate [kg/s] |
| HeatFlowRate | Q_flow_nominal | 1000 | Nominal heat loss of the room [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Medium model | |
Modelica definition
model WaterCooler_T
"Example model for the sensible cooler with prescribed outlet temperature and water as the medium"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater(
redeclare package Medium = Buildings.Media.Water,
m_flow_nominal=V*1000/3600,
Q_flow_nominal=1000,
vol(V=V/1000),
mov(nominalValuesDefineDefaultPressureCurve=true),
TOut(y=273.15 + 22 - 5*cos(time/86400*2*Modelica.Constants.pi)));
SensibleCooler_T coo(
redeclare package Medium = Medium,
m_flow_nominal=m_flow_nominal,
dp_nominal=1000,
T_start=289.15,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
QMin_flow=-Q_flow_nominal) "Cooler";
Controls.SetPoints.Table tab(table=[
0, 273.15 + 10;
1, 273.15 + 30])
"Table to compute temperature set points";
equation
connect(coo.port_b, THeaOut.port_a);
connect(conPI.y, tab.u);
connect(tab.y,coo. TSet);
connect(mov.port_b,coo. port_a);
end WaterCooler_T;
Buildings.Fluid.HeatExchangers.Examples.WaterHeater_T
Example model for the heater with prescribed outlet temperature and water as the medium
Information
This example illustrates how to use the heater model that takes as an input the leaving fluid temperature.
The model consist of a water volume with heat loss to the ambient. The set point of the water temperature is different between night and day. The heater tracks the set point temperature, except for the periods in which the water temperature is above the set point.
See Buildings.Fluid.HeatExchangers.Examples.WaterHeater_u for a model that takes the heating power as an input.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater (Base class for example model for the heater and cooler).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | PartialMedium | Medium model | |
| Volume | V | 6*6*2.7 | Volume [m3] |
| MassFlowRate | m_flow_nominal | V*1000/3600 | Nominal mass flow rate [kg/s] |
| HeatFlowRate | Q_flow_nominal | 100 | Nominal heat loss of the room [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Medium model | |
Modelica definition
model WaterHeater_T
"Example model for the heater with prescribed outlet temperature and water as the medium"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater(
redeclare package Medium = Buildings.Media.Water,
m_flow_nominal=V*1000/3600,
Q_flow_nominal=100,
vol(V=V/1000),
mov(nominalValuesDefineDefaultPressureCurve=true));
Heater_T hea(
redeclare package Medium = Medium,
m_flow_nominal=m_flow_nominal,
dp_nominal=1000,
T_start=289.15,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
QMax_flow=Q_flow_nominal) "Heater";
Controls.SetPoints.Table tab(table=[0,273.15 + 10; 1,273.15 + 30]);
equation
connect(hea.port_b, THeaOut.port_a);
connect(conPI.y, tab.u);
connect(tab.y, hea.TSet);
connect(mov.port_b, hea.port_a);
end WaterHeater_T;
Buildings.Fluid.HeatExchangers.Examples.WaterHeater_u
Example model for the heater with prescribed heat input and water as the medium
Information
This example illustrates how to use the heater model that takes as an input the heat added to the medium.
The model consist of a water volume with heat loss to the ambient. The set point of the water temperature is different between night and day. The heater tracks the set point temperature, except for the periods in which the water temperature is above the set point.
See Buildings.Fluid.HeatExchangers.Examples.WaterHeater_T for a model that takes the leaving water temperature as an input.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater (Base class for example model for the heater and cooler).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| replaceable package Medium | PartialMedium | Medium model | |
| Volume | V | 6*6*2.7 | Volume [m3] |
| MassFlowRate | m_flow_nominal | V*1000/3600 | Nominal mass flow rate [kg/s] |
| HeatFlowRate | Q_flow_nominal | 100 | Nominal heat loss of the room [W] |
Connectors
| Type | Name | Description |
|---|---|---|
| replaceable package Medium | Medium model | |
Modelica definition
model WaterHeater_u
"Example model for the heater with prescribed heat input and water as the medium"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.Heater(
redeclare package Medium = Buildings.Media.Water,
m_flow_nominal=V*1000/3600,
Q_flow_nominal=100,
conPI(k=10),
vol(V=V/1000),
mov(nominalValuesDefineDefaultPressureCurve=true));
HeaterCooler_u hea(
redeclare package Medium = Medium,
m_flow_nominal=m_flow_nominal,
dp_nominal=1000,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial,
T_start=289.15,
Q_flow_nominal=10*Q_flow_nominal) "Heater";
equation
connect(hea.port_b, THeaOut.port_a);
connect(conPI.y, hea.u);
connect(mov.port_b, hea.port_a);
end WaterHeater_u;
Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowMassFlow
Model of a cooling coil that tests variable mass flow rates
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.WetCoilCounterFlow for different inlet conditions.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow (Partial model of epsilon-NTU coil that tests variable mass flow rates).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | Nominal water inlet temperature [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | Nominal water outlet temperature [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | Nominal air inlet temperature [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | Nominal air outlet temperature [K] |
| HeatFlowRate | Q_flow_nominal | m1_flow_nominal*4200*(T_a1_n... | Nominal heat transfer [W] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilCounterFlowMassFlow
"Model of a cooling coil that tests variable mass flow rates"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow
(
sou_1(nPorts=1),
sin_1(nPorts=1),
sou_2(nPorts=1),
sin_2(nPorts=1));
WetCoilCounterFlow hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
allowFlowReversal1=true,
allowFlowReversal2=true,
dp1_nominal(displayUnit="Pa") = 3000,
UA_nominal=Q_flow_nominal/Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
show_T=true,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial);
Sensors.RelativeHumidityTwoPort senRelHum(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal);
equation
connect(sou_1.ports[1], hex.port_a1);
connect(hex.port_b1, sin_1.ports[1]);
connect(hex.port_a2, sou_2.ports[1]);
connect(hex.port_b2, senRelHum.port_a);
connect(senRelHum.port_b, sin_2.ports[1]);
end WetCoilCounterFlowMassFlow;
Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPControl
Model that demonstrates use of a heat exchanger with condensation and with feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.WetCoilCounterFlow. The valve on the water-side is regulated to track a setpoint temperature for the air outlet.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.PartialWetCoilCounterFlow (Partial model that demonstrates use of a heat exchanger with condensation and with feedback control).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | 0.2*m1_flow_nominal*4200/100... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilCounterFlowPControl
"Model that demonstrates use of a heat exchanger with condensation and with feedback control"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.PartialWetCoilCounterFlow;
Buildings.Controls.Continuous.LimPID con(
Td=1,
reverseActing=false,
yMin=0,
k=0.1,
Ti=60) "Controller";
equation
connect(con.u_m, temSen.T);
connect(TSet.y, con.u_s);
connect(con.y, val.y);
end WetCoilCounterFlowPControl;
Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPIControlAutoTuning
Model that demonstrates the use of a heat exchanger with condensation and with autotuning PI feedback control
Information
This example is identical to Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPControl except that the PI controller is replaced with an autotuning PI controller.
The autotuning is triggered twice.- The first one occurs at 100 seconds and it completes successfully, with the tuned PI parameters taking effect at 215 seconds.
- The second one occurs at 2100 seconds and it fails because the setpoint changes at 2400 seconds. Thus, the PI input gains remain the same as the one from previous tuning.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.PartialWetCoilCounterFlow (Partial model that demonstrates use of a heat exchanger with condensation and with feedback control).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | 0.2*m1_flow_nominal*4200/100... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilCounterFlowPIControlAutoTuning
"Model that demonstrates the use of a heat exchanger with condensation and with autotuning PI feedback control"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.PartialWetCoilCounterFlow;
Buildings.Controls.OBC.Utilities.PIDWithAutotuning.FirstOrderAMIGO
con(
r=5,
yHig=0.91,
yLow=0.1,
deaBan=0.1,
yRef=0.5,
reverseActing=false)
"Controller";
Buildings.Controls.OBC.CDL.Logical.Sources.Constant resSig(k=false)
"Reset signal";
Buildings.Controls.OBC.CDL.Logical.Sources.Pulse autTunSig(
width=0.2,
period=2000,
shift=100)
"Signal for enabling the autotuning";
equation
connect(resSig.y, con.triRes);
connect(autTunSig.y, con.triTun);
connect(TSet.y, con.u_s);
connect(temSen.T, con.u_m);
connect(con.y, val.y);
end WetCoilCounterFlowPIControlAutoTuning;
Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPIDControlAutoTuning
Model that demonstrates the use of a heat exchanger with condensation and with autotuning PID feedback control
Information
This example is identical to Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPIControlAutoTuning except that the controller is configured as a PID rather than a PI controller.
Extends from Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPIControlAutoTuning (Model that demonstrates the use of a heat exchanger with condensation and with autotuning PI feedback control).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | 0.2*m1_flow_nominal*4200/100... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilCounterFlowPIDControlAutoTuning
"Model that demonstrates the use of a heat exchanger with condensation and with autotuning PID feedback control"
extends Buildings.Fluid.HeatExchangers.Examples.WetCoilCounterFlowPIControlAutoTuning(
con(
controllerType=Buildings.Controls.OBC.Utilities.PIDWithAutotuning.Types.SimpleController.PID));
end WetCoilCounterFlowPIDControlAutoTuning;
Buildings.Fluid.HeatExchangers.Examples.WetCoilDiscretizedMassFlow
Model of a cooling coil that tests variable mass flow rates
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.WetCoilDiscretized for different inlet conditions.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow (Partial model of epsilon-NTU coil that tests variable mass flow rates).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | Nominal water inlet temperature [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | Nominal water outlet temperature [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | Nominal air inlet temperature [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | Nominal air outlet temperature [K] |
| HeatFlowRate | Q_flow_nominal | m1_flow_nominal*4200*(T_a1_n... | Nominal heat transfer [W] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilDiscretizedMassFlow
"Model of a cooling coil that tests variable mass flow rates"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow
(
sou_1(nPorts=1),
sin_1(nPorts=1),
sou_2(nPorts=1),
sin_2(nPorts=1));
WetCoilDiscretized hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
allowFlowReversal1=true,
allowFlowReversal2=true,
dp1_nominal(displayUnit="Pa") = 3000,
UA_nominal=Q_flow_nominal/Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
show_T=true,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial);
Sensors.RelativeHumidityTwoPort senRelHum(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal,
initType=Modelica.Blocks.Types.Init.SteadyState);
equation
connect(sou_1.ports[1], hex.port_a1);
connect(hex.port_b1, sin_1.ports[1]);
connect(hex.port_a2, sou_2.ports[1]);
connect(hex.port_b2, senRelHum.port_a);
connect(senRelHum.port_b, sin_2.ports[1]);
end WetCoilDiscretizedMassFlow;
Buildings.Fluid.HeatExchangers.Examples.WetCoilDiscretizedPControl
Model that demonstrates use of a finite volume model of a heat exchanger with condensation and feedback control
Information
This model demonstrates the use of Buildings.Fluid.HeatExchangers.DryCoilDiscretized. The valve on the water-side is regulated to track a setpoint temperature for the air outlet.
Note that between the controller output and the valve is a model of a motor that has hysteresis. The events generated by the motor model can lead to a significantly higher computing time. In most applications, this level of modeling detail is not justified.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | [K] |
| Temperature | T_b2_nominal | 10 + 273.15 | [K] |
| MassFlowRate | m1_flow_nominal | 5 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilDiscretizedPControl
"Model that demonstrates use of a finite volume model of a heat exchanger with condensation and feedback control"
extends Modelica.Icons.Example;
package Medium1 = Buildings.Media.Water;
package Medium2 = Buildings.Media.Air;
parameter Modelica.Units.SI.Temperature T_a1_nominal=5 + 273.15;
parameter Modelica.Units.SI.Temperature T_b1_nominal=10 + 273.15;
parameter Modelica.Units.SI.Temperature T_a2_nominal=30 + 273.15;
parameter Modelica.Units.SI.Temperature T_b2_nominal=10 + 273.15;
parameter Modelica.Units.SI.MassFlowRate m1_flow_nominal=5
"Nominal mass flow rate medium 1";
parameter Modelica.Units.SI.MassFlowRate m2_flow_nominal=m1_flow_nominal*4200
/1000*(T_a1_nominal - T_b1_nominal)/(T_b2_nominal - T_a2_nominal)
"Nominal mass flow rate medium 2";
Buildings.Fluid.Sources.Boundary_pT sin_2(
redeclare package Medium = Medium2,
use_p_in=false,
p=101325,
T=303.15,
nPorts=1);
Buildings.Fluid.Sources.Boundary_pT sou_2(
redeclare package Medium = Medium2,
nPorts=1,
use_p_in=false,
use_T_in=true,
p(displayUnit="Pa") = 101525,
T=293.15);
Buildings.Fluid.Sources.Boundary_pT sin_1(
redeclare package Medium = Medium1,
p=300000,
T=293.15,
use_p_in=true,
nPorts=1);
Buildings.Fluid.Sources.Boundary_pT sou_1(
redeclare package Medium = Medium1,
nPorts=1,
use_T_in=true,
p=300000 + 7000,
T=278.15);
Modelica.Blocks.Sources.Ramp PSin(
duration=60,
height=5000,
startTime=240,
offset=300000);
Buildings.Fluid.Sensors.TemperatureTwoPort temSen(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal);
Buildings.Fluid.Actuators.Valves.TwoWayLinear val(
redeclare package Medium = Medium1,
m_flow_nominal=m1_flow_nominal,
use_strokeTime=false,
dpFixed_nominal=2000,
dpValve_nominal=5000);
Modelica.Blocks.Sources.TimeTable TSet(table=[0,293.15; 600,293.15; 600,
288.15; 1200,288.15; 1800,288.15; 2400,295.15; 2400,295.15])
"Setpoint temperature";
Buildings.Fluid.HeatExchangers.WetCoilDiscretized hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
show_T=true,
nPipPar=1,
nPipSeg=3,
nReg=4,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
UA_nominal=m1_flow_nominal*4200*(T_a1_nominal-T_b1_nominal)/
Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
dp2_nominal(displayUnit="Pa") = 200,
dp1_nominal(displayUnit="Pa") = 0,
energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial);
Modelica.Blocks.Sources.Step TSou_2(
startTime=3000,
offset=T_a2_nominal,
height=-3);
Modelica.Blocks.Sources.Step TSou_1(
startTime=3000,
height=10,
offset=T_a1_nominal);
Buildings.Controls.Continuous.LimPID con(
k=1,
Ti=60,
controllerType=Modelica.Blocks.Types.SimpleController.P,
Td=60,
reverseActing=false) "Controller";
Buildings.Fluid.Actuators.Motors.IdealMotor mot(tOpe=60) "Motor model";
equation
connect(PSin.y, sin_1.p_in);
connect(sou_2.ports[1], hex.port_a2);
connect(hex.port_b2, temSen.port_a);
connect(val.port_b, hex.port_a1);
connect(sou_1.ports[1], val.port_a);
connect(TSou_2.y, sou_2.T_in);
connect(TSou_1.y, sou_1.T_in);
connect(TSet.y, con.u_s);
connect(temSen.T, con.u_m);
connect(con.y, mot.u);
connect(mot.y, val.y);
connect(sin_2.ports[1], temSen.port_b);
connect(hex.port_b1, sin_1.ports[1]);
end WetCoilDiscretizedPControl;
Buildings.Fluid.HeatExchangers.Examples.WetCoilEffectivenessNTUMassFlow
Model that tests the wet coil effectiveness-NTU model with variable mass flow rates
Information
This example is similar to Buildings.Fluid.HeatExchangers.Examples.DryCoilEffectivenessNTUMassFlow except that the coil model Buildings.Fluid.HeatExchangers.DryCoilEffectivenessNTU is replaced here by Buildings.Fluid.HeatExchangers.WetCoilEffectivenessNTU.
Extends from Modelica.Icons.Example (Icon for runnable examples), Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow (Partial model of epsilon-NTU coil that tests variable mass flow rates).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Temperature | T_a1_nominal | 5 + 273.15 | Nominal water inlet temperature [K] |
| Temperature | T_b1_nominal | 10 + 273.15 | Nominal water outlet temperature [K] |
| Temperature | T_a2_nominal | 30 + 273.15 | Nominal air inlet temperature [K] |
| Temperature | T_b2_nominal | 15 + 273.15 | Nominal air outlet temperature [K] |
| HeatFlowRate | Q_flow_nominal | m1_flow_nominal*4200*(T_a1_n... | Nominal heat transfer [W] |
| MassFlowRate | m1_flow_nominal | 0.1 | Nominal mass flow rate medium 1 [kg/s] |
| MassFlowRate | m2_flow_nominal | m1_flow_nominal*4200/1000*(T... | Nominal mass flow rate medium 2 [kg/s] |
Modelica definition
model WetCoilEffectivenessNTUMassFlow
"Model that tests the wet coil effectiveness-NTU model with variable mass flow rates"
extends Modelica.Icons.Example;
extends Buildings.Fluid.HeatExchangers.Examples.BaseClasses.EffectivenessNTUMassFlow
(
sou_1(nPorts=1),
sin_1(nPorts=1),
sou_2(nPorts=1),
sin_2(nPorts=1));
Buildings.Fluid.HeatExchangers.WetCoilEffectivenessNTU hex(
redeclare package Medium1 = Medium1,
redeclare package Medium2 = Medium2,
m1_flow_nominal=m1_flow_nominal,
m2_flow_nominal=m2_flow_nominal,
dp2_nominal(displayUnit="Pa") = 200,
dp1_nominal(displayUnit="Pa") = 3000,
UA_nominal=Q_flow_nominal/Buildings.Fluid.HeatExchangers.BaseClasses.lmtd(
T_a1_nominal,
T_b1_nominal,
T_a2_nominal,
T_b2_nominal),
show_T=true,
energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState)
"Heat exchanger";
Sensors.RelativeHumidityTwoPort senRelHum(
redeclare package Medium = Medium2,
m_flow_nominal=m2_flow_nominal)
"Relative humidity sensor";
equation
connect(sou_1.ports[1], hex.port_a1);
connect(hex.port_b1, sin_1.ports[1]);
connect(hex.port_a2, sou_2.ports[1]);
connect(hex.port_b2, senRelHum.port_a);
connect(senRelHum.port_b, sin_2.ports[1]);
end WetCoilEffectivenessNTUMassFlow;
