Buildings.Controls.OBC.ASHRAE.G36.Plants.Chillers.Generic
Generic control sequences
Information
This package contains generic primary plant control sequences.
Package Content
| Name | Description |
|---|---|
 ChillerLifts
|
Calculate the maximum and minimum enabled chiller lifts |
 IdentifyStage
|
Identify current chiller stage according to the proven on status of the chillers |
 TimerWithReset
|
Timer measuring the time from the time instant where the Boolean input became true |
 PlantEnable
|
Package of sequences for enabling plant and the associated devices |
 Validation
|
Collection of validation models |

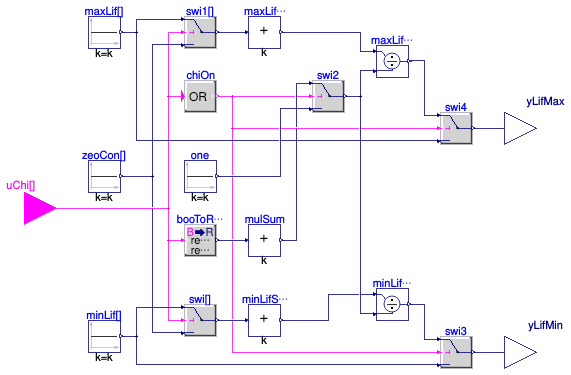

Buildings.Controls.OBC.ASHRAE.G36.Plants.Chillers.Generic.ChillerLifts
Calculate the maximum and minimum enabled chiller lifts
Information
Block that outputs the maximum and minimum lifts of the enabled chillers. It is based on ASHRAE Guideline 36-2021, section 5.20.4.14.
yLifMin and yLifMax shall be calculated as the averages of
minChiLif and maxChiLif for operating chillers, respectively.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | nChi | 2 | Total number of chillers |
| Real | minChiLif[nChi] | {12,12} | Minimum LIFT of each chiller [K] |
| Real | maxChiLif[nChi] | {18,18} | Maximum LIFT of each chiller [K] |
Connectors
| Type | Name | Description |
|---|---|---|
| input BooleanInput | uChi[nChi] | Vector of chillers proven on status: true=ON |
| output RealOutput | yLifMax | Maximum LIFT among enabled chillers [K] |
| output RealOutput | yLifMin | Minimum LIFT among enabled chillers [K] |
Modelica definition
block ChillerLifts "Calculate the maximum and minimum enabled chiller lifts"
parameter Integer nChi = 2 "Total number of chillers";
parameter Real minChiLif[nChi](
final unit=fill("K",nChi),
final quantity=fill("TemperatureDifference",nChi))={12, 12}
"Minimum LIFT of each chiller";
parameter Real maxChiLif[nChi](
final unit=fill("K",nChi),
final quantity=fill("TemperatureDifference",nChi))={18, 18}
"Maximum LIFT of each chiller";
Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uChi[nChi]
"Vector of chillers proven on status: true=ON";
Buildings.Controls.OBC.CDL.Interfaces.RealOutput yLifMax(
final unit="K")
"Maximum LIFT among enabled chillers";
Buildings.Controls.OBC.CDL.Interfaces.RealOutput yLifMin(
final unit="K")
"Minimum LIFT among enabled chillers";
protected
Buildings.Controls.OBC.CDL.Reals.Sources.Constant minLif[nChi](
final k=minChiLif)
"Minimum LIFT of chillers";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant zeoCon[nChi](
final k=fill(0, nChi))
"Zero constant";
Buildings.Controls.OBC.CDL.Reals.Switch swi[nChi] "Logical switch";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant maxLif[nChi](
final k=maxChiLif)
"Maximum LIFT of chillers";
Buildings.Controls.OBC.CDL.Reals.Switch swi1[nChi]
"Logical switch";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant one(
final k=1)
"Dummy constant";
Buildings.Controls.OBC.CDL.Conversions.BooleanToReal booToRea[nChi]
"Convert boolean input to real output";
Buildings.Controls.OBC.CDL.Reals.MultiSum mulSum(nin=nChi)
"Total number of enabled chillers";
Buildings.Controls.OBC.CDL.Reals.MultiSum minLifSum(nin=nChi)
"Sum of the enabled chillers minimum lift";
Buildings.Controls.OBC.CDL.Reals.MultiSum maxLifSum(nin=nChi)
"Sum of the enabled chillers maximum lift";
Buildings.Controls.OBC.CDL.Logical.MultiOr chiOn(nin=nChi)
"Check if there is any chiller proven on";
Buildings.Controls.OBC.CDL.Reals.Switch swi2
"Switch to avoid zero denominator";
Buildings.Controls.OBC.CDL.Reals.Divide maxLifMea
"Average maximum lift of the enabled chillers";
Buildings.Controls.OBC.CDL.Reals.Divide minLifMea
"Average maximum lift of the enabled chillers";
Buildings.Controls.OBC.CDL.Reals.Switch swi4 "Maximum lift";
Buildings.Controls.OBC.CDL.Reals.Switch swi3 "Minimum lift";
equation
connect(uChi, swi.u2);
connect(zeoCon.y, swi.u3);
connect(minLif.y, swi.u1);
connect(uChi, swi1.u2);
connect(zeoCon.y, swi1.u3);
connect(maxLif.y, swi1.u1);
connect(uChi, booToRea.u);
connect(uChi,chiOn. u);
connect(chiOn.y, swi2.u2);
connect(mulSum.y, swi2.u1);
connect(swi2.y, maxLifMea.u2);
connect(maxLifSum.y, maxLifMea.u1);
connect(chiOn.y, swi4.u2);
connect(maxLifMea.y, swi4.u1);
connect(minLifSum.y, minLifMea.u1);
connect(swi2.y, minLifMea.u2);
connect(minLifMea.y, swi3.u1);
connect(chiOn.y, swi3.u2);
connect(minLif[1].y, swi3.u3);
connect(maxLif[1].y, swi4.u3);
connect(swi4.y, yLifMax);
connect(swi3.y, yLifMin);
connect(swi1.y, maxLifSum.u);
connect(booToRea.y, mulSum.u);
connect(swi.y, minLifSum.u);
connect(one.y, swi2.u3);
end ChillerLifts;

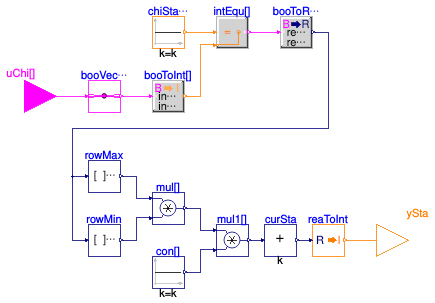

Buildings.Controls.OBC.ASHRAE.G36.Plants.Chillers.Generic.IdentifyStage
Identify current chiller stage according to the proven on status of the chillers
Information
This subsequence is not directly specified in ASHRAE Guideline 36-2021 as it provides a side calculation about the generalization of the staging sequences for any number of chillers and stages provided by the user.
The subsequence outputs the current chiller stage index ySta according
to the current chillers proven on status uChi
and the given staging matrix staMat, which specifies which chillers
should be enabled at each stage.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Integer | nSta | 3 | Number of chiller stages |
| Integer | nChi | 2 | Number of chillers |
| Integer | staMat[nSta, nChi] | {{1,0},{0,1},{1,1}} | Staging matrix with chiller stage as row index and chiller as column index |
Connectors
| Type | Name | Description |
|---|---|---|
| input BooleanInput | uChi[nChi] | Vector of chiller proven on status: true=ON |
| output IntegerOutput | ySta | Current stage index |
Modelica definition
block IdentifyStage
"Identify current chiller stage according to the proven on status of the chillers"
parameter Integer nSta = 3
"Number of chiller stages";
parameter Integer nChi = 2
"Number of chillers";
parameter Integer staMat[nSta, nChi] = {{1,0},{0,1},{1,1}}
"Staging matrix with chiller stage as row index and chiller as column index";
Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uChi[nChi]
"Vector of chiller proven on status: true=ON";
Buildings.Controls.OBC.CDL.Interfaces.IntegerOutput ySta
"Current stage index";
protected
final parameter Real staInd[nSta] = {i for i in 1:nSta}
"Stage index vector";
Buildings.Controls.OBC.CDL.Routing.BooleanVectorReplicator booVecRep(
final nin=nChi,
final nout=nSta)
"Replicate boolean vector to be a matric with total stages as row size and total chillers as column size";
Buildings.Controls.OBC.CDL.Conversions.BooleanToInteger booToInt[nSta,nChi]
"Convert boolean to integer";
Buildings.Controls.OBC.CDL.Integers.Equal intEqu[nSta,nChi]
"Output true if the first integer input one equals to the second integer input";
Buildings.Controls.OBC.CDL.Conversions.BooleanToReal booToRea [nSta,nChi]
"Convert boolean to real";
Buildings.Controls.OBC.CDL.Reals.MatrixMax rowMax(
final nRow=nSta,
final nCol=nChi)
"Outputs the row-wise maximum";
Buildings.Controls.OBC.CDL.Reals.MatrixMin rowMin(
final nRow=nSta,
final nCol=nChi)
"Outputs the row-wise minimum";
Buildings.Controls.OBC.CDL.Reals.Multiply mul[nSta]
"Output product of the inputs";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant con[nSta](
final k=staInd)
"Stage indices";
Buildings.Controls.OBC.CDL.Reals.Multiply mul1[nSta]
"Output vector with the elements which equal to either zero or current stage index";
Buildings.Controls.OBC.CDL.Reals.MultiSum curSta(
final nin=nSta)
"Current stage";
Buildings.Controls.OBC.CDL.Conversions.RealToInteger reaToInt "Convert real to integer signal";
Buildings.Controls.OBC.CDL.Integers.Sources.Constant chiStaMatr[nSta,nChi](
final k=staMat)
"Staging matrix";
equation
connect(uChi, booVecRep.u);
connect(booVecRep.y, booToInt.u);
connect(chiStaMatr.y, intEqu.u1);
connect(booToInt.y, intEqu.u2);
connect(intEqu.y, booToRea.u);
connect(booToRea.y,rowMax. u);
connect(booToRea.y,rowMin. u);
connect(rowMax.y, mul.u1);
connect(rowMin.y, mul.u2);
connect(mul.y, mul1.u1);
connect(con.y, mul1.u2);
connect(mul1.y, curSta.u);
connect(curSta.y, reaToInt.u);
connect(reaToInt.y, ySta);
end IdentifyStage;

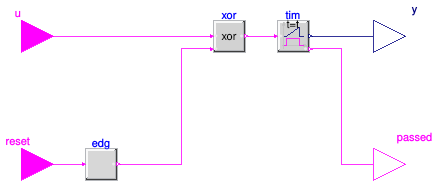

Buildings.Controls.OBC.ASHRAE.G36.Plants.Chillers.Generic.TimerWithReset
Timer measuring the time from the time instant where the Boolean input became true
Information
This block is similar to
Buildings.Controls.OBC.CDL.Logical.Timer,
but introduces an additional Boolean input signal reset,
which resets the timer.
When reset becomes true:
y=0 and passed=false.
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Real | t | 0 | Threshold time for comparison [s] |
Connectors
| Type | Name | Description |
|---|---|---|
| input BooleanInput | u | Input that switches timer on if true, and off if false |
| input BooleanInput | reset | Reset signal |
| output RealOutput | y | Elapsed time [s] |
| output BooleanOutput | passed | True if the elapsed time is greater than threshold |
Modelica definition
block TimerWithReset
"Timer measuring the time from the time instant where the Boolean input became true"
parameter Real t(
final quantity="Time",
final unit="s")=0
"Threshold time for comparison";
Buildings.Controls.OBC.CDL.Interfaces.BooleanInput u
"Input that switches timer on if true, and off if false";
Buildings.Controls.OBC.CDL.Interfaces.BooleanInput reset
"Reset signal";
Buildings.Controls.OBC.CDL.Interfaces.RealOutput y(
final quantity="Time",
final unit="s")
"Elapsed time";
Buildings.Controls.OBC.CDL.Interfaces.BooleanOutput passed
"True if the elapsed time is greater than threshold";
protected
Buildings.Controls.OBC.CDL.Logical.Edge edg
"Reset input edge";
Buildings.Controls.OBC.CDL.Logical.Xor xor
"Output true if only one input is true";
Buildings.Controls.OBC.CDL.Logical.Timer tim(
final t=t)
"Measuring time and check if bolean input has been true more than threshold time";
equation
connect(reset, edg.u);
connect(edg.y, xor.u2);
connect(u, xor.u1);
connect(xor.y, tim.u);
connect(tim.y, y);
connect(tim.passed, passed);
end TimerWithReset;
