Buildings.Rooms.FLEXLAB.Rooms.X3B

Models of rooms in test cell X3B

Information

This package contains models of rooms in test cell X3B of the FLEXLAB at LBNL. The following image is a drawing of test cell X3B. It shows how the different rooms in this example are connected, as well as providing the names used in this example for each of the rooms.

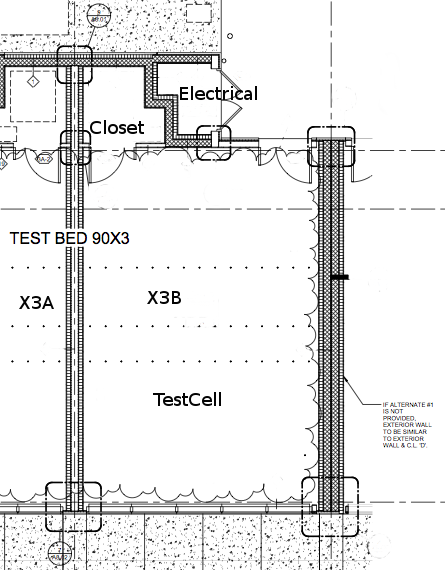

Room locations and names in X3AWithRadiantFloor

There are separate models for each room in test cell X3B. The model for the test cell itself is located in Buildings.Rooms.FLEXLAB.Rooms.X3B.TestCell, the model for the connected closet is located at Buildings.Rooms.FLEXLAB.Rooms.X3B.Closet, and the model for the connected electrical room is located at Buildings.Rooms.FLEXLAB.Rooms.X3B.Electrical. Each of the models were developed using construction and parameter information taken from architectural drawings. Accurate use of the models will likely require combining all three room models to each other.

The models in this package are intended to be connected to each other to develop a model of the entirety of test cell X3B. Several of the connections are to be made between walls connecting the two spaces to each other. Detailed information on the wall in each test cell can be found in the documentation for that test cell. The connections between each room in the test cell are described below.

Physical significance of connection	Port 1	Port 2
Heat transfer through the partition wall between the test cell and the closet	TestCell.surf_conBou[2]	Closet.surf_surBou[1]
Heat transfer through the door in the partition wall between the test cell and the closet	TestCell.surf_conBou[3]	Closet.surf_surBou[2]
Heat transfer through the wall separating the test cell and the electrical room	TestCell.surf_conBou[4]	Electrical.surf_surBou[1]
Heat transfer through the wall separating the closet and the electrical room	Closet.surf_conBou[1]	Electrical.surf_surBou[2]

An example of how these room models are connected to create full test cell model can be found in Buildings.Rooms.FLEXLAB.Rooms.Examples.X3AWithRadiantFloor.

Extends from Modelica.Icons.Package (Icon for standard packages).

Package Content

Name	Description
Closet	Model of the closet connected to test cell X3A
Electrical	Model of the electrical room attached to test cell X3A
TestCell	Model of LBNL User Test Facility Cell X3A

Buildings.Rooms.FLEXLAB.Rooms.X3B.Closet

Model of the closet connected to test cell X3A

Buildings.Rooms.FLEXLAB.Rooms.X3B.Closet

Information

This is a model for the closet attached to test cell 3B in the LBNL User Facility. This documentation describes the wall constructions used in the closet. Documentation describing how it should be connected to other models in the package to form a complete model of test cell X3B can be found in Buildings.Rooms.FLEXLAB.Rooms.X3B.

There are four different wall sections connected to the closet modeled here. They are shown in the figure below.

Wall sections in Closet model

The different wall sections are represented in the model according to the following table.

Wall Section Number	Description	Location in Model	Corresponding Layer
1	West wall connected to X3A.Closet	datConBou[2]	celDiv
2	North wall on the exterior of the buildings	datConExt[1]	higIns
3	East wall connected to Electrical	datConBou[1]	higIns
4	Air space connected to partition wall and door in TestCell model	Wall: datSurBou[1] Door: datSurBou[2]

There are two additional surfaces which are not included in the diagram. One is the model of the roof. It is modeled in datConExt[2] using the layer roo. The other is the floor, which is modeled in datConBou[3] using the layer slaCon.

Several of the connections in this model are intended to be connected to specific surfaces in other room models. The following table describes the connections to models outside of the X3B package. The connections in datConExt are not described in the table because they are connected to the external environment, and no additional heat port connections are necessary. A rationale for why the model is created this way is also provided if it is considered necessary.

Location in Closet	Description of External Connection	Location in External Model	Rationale
surf_conBou[2]	X3A.Closet	X3A.ClosetNoCelDiv.surf_surBou[3]
surf_conBou[3]	Ground temperature		There is no specific connection which is appropriate connection for this construction. surf_conBou[3] represents the floor of the room, and must be connected to a heat port representing the ground temperature.

Extends from Buildings.Rooms.MixedAir (Model of a room in which the air is completely mixed).

Parameters

Type	Name	Default	Description
ParameterConstructionWithWindow	datConExtWin[NConExtWin]	datConExtWin(each T_a_start=...	Data for exterior construction with window
ParameterConstruction	datConPar[NConPar]	datConPar(each T_a_start=T_s...	Data for partition construction
Brick120	dummyCon		Dummy construction to assign a parameter to the instance
SingleClear3	dummyGlaSys		Dummy construction to assign a parameter to the instance
replaceable package Medium		PartialMedium	Medium in the component
Angle	lat	0.66098585832754	Latitude [rad]
Area	AFlo	3.93	Floor area [m2]
Length	hRoo	3.6576	Average room height [m]
Boolean	linearizeRadiation	true	Set to true to linearize emissive power
CellAndElectricalDividingWall	higIns	redeclare Data.Constructions...	High insulation wall. Between X3A closet and exterior, X3A closet and electrical room
TestCellDividngWall	celDiv	redeclare Data.Constructions...	Wall dividing the X3A closet and the X3B closet
ASHRAE_901_2010Roof	roo	redeclare Data.Constructions...	Construction of the roof of the closet in X3A
Exterior constructions
Integer	nConExt	2	Number of exterior constructions
Integer	nConExtWin	0	Number of window constructions
Partition constructions
Integer	nConPar	0	Number of partition constructions
Boundary constructions
Integer	nConBou	3	Number of constructions that have their outside surface exposed to the boundary of this room
Integer	nSurBou	2	Number of surface heat transfer models that connect to constructions that are modeled outside of this room
Convective heat transfer
InteriorConvection	intConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for room-facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hIntFixed	3.0	Constant convection coefficient for room-facing surfaces of opaque constructions [W/(m2.K)]
ExteriorConvection	extConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for exterior facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hExtFixed	10.0	Constant convection coefficient for exterior facing surfaces of opaque constructions [W/(m2.K)]
Nominal condition
MassFlowRate	m_flow_nominal	V*1.2/3600	Nominal mass flow rate [kg/s]
Advanced
Boolean	homotopyInitialization	true	= true, use homotopy method
Dynamics
Equations
Dynamics	energyDynamics	Modelica.Fluid.Types.Dynamic...	Formulation of energy balance
Dynamics	massDynamics	energyDynamics	Formulation of mass balance
Real	mSenFac	1	Factor for scaling the sensible thermal mass of the volume
Initialization
AbsolutePressure	p_start	Medium.p_default	Start value of pressure [Pa]
Temperature	T_start	Medium.T_default	Start value of temperature [K]
MassFraction	X_start[Medium.nX]	Medium.X_default	Start value of mass fractions m_i/m [kg/kg]
ExtraProperty	C_start[Medium.nC]	fill(0, Medium.nC)	Start value of trace substances
ExtraProperty	C_nominal[Medium.nC]	fill(1E-2, Medium.nC)	Nominal value of trace substances. (Set to typical order of magnitude.)

Connectors

Type	Name	Description
VesselFluidPorts_b	ports[nPorts]	Fluid inlets and outlets
HeatPort_a	heaPorAir	Heat port to air volume
HeatPort_a	heaPorRad	Heat port for radiative heat gain and radiative temperature
HeatPort_a	surf_conBou[nConBou]	Heat port at surface b of construction conBou
HeatPort_a	surf_surBou[nSurBou]	Heat port of surface that is connected to the room air
input RealInput	qGai_flow[3]	Radiant, convective and latent heat input into room (positive if heat gain) [W/m2]
Bus	weaBus
input RealInput	uSha[nConExtWin]	Control signal for the shading device (removed if no shade is present)

Modelica definition

model Closet "Model of the closet connected to test cell X3A" extends Buildings.Rooms.MixedAir( hRoo = 3.6576, AFlo = 3.93, lat = 0.66098585832754, nConExt = 2, nConBou = 3, nSurBou = 2, nConExtWin = 0, nConPar = 0, surBou( A = {3.6576 * 2.886075 - 2.39*1.22, 2.39 * 1.22}, each absIR = 0.9, each absSol = 0.9, each til=Buildings.Types.Tilt.Wall), datConExt( layers = {higIns, roo}, A = {3.6576 * 1.667, AFlo}, til = {Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Ceiling}, azi = {Buildings.Types.Azimuth.N, Buildings.Types.Azimuth.N}), datConBou( layers = {higIns, celDiv, slaCon}, A = {3.6576*1.524, 3.6576 * 1.524, 3.93}, til = {Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Floor}, azi = {Buildings.Types.Azimuth.W, Buildings.Types.Azimuth.E, Buildings.Types.Azimuth.N})); replaceable Data.Constructions.OpaqueConstructions.DividingWalls.CellAndElectricalDividingWall higIns "High insulation wall. Between X3A closet and exterior, X3A closet and electrical room"; replaceable Data.Constructions.OpaqueConstructions.DividingWalls.TestCellDividngWall celDiv "Wall dividing the X3A closet and the X3B closet"; replaceable Data.Constructions.OpaqueConstructions.Roofs.ASHRAE_901_2010Roof roo "Construction of the roof of the closet in X3A"; HeatTransfer.Data.OpaqueConstructions.Generic slaCon(nLay=3, material={ Buildings.HeatTransfer.Data.Solids.Generic( x=0.1524, k=1.13, c=1000, d=1400, nSta=5), Buildings.HeatTransfer.Data.Solids.Generic( x=0.127, k=0.036, c=1200, d=40), Buildings.HeatTransfer.Data.Solids.Generic( x=0.2, k=1.8, c=1100, d=2400)}) "Construction of the slab"; end Closet;

Buildings.Rooms.FLEXLAB.Rooms.X3B.Electrical

Model of the electrical room attached to test cell X3A

Buildings.Rooms.FLEXLAB.Rooms.X3B.Electrical

Information

This is a model for the electrical room connected to test cell 3B in the LBNL User Facility. Other models are provided for the main space of the test cell and the connected closet. This documentation describes the wall constructions used in the electrical room model. For documentation describing how the room models are to be connected to develop a model of the entire X3B test cell see Buildings.Rooms.FLEXLAB.Rooms.X3B.

There are 4 different wall sections described in the model. They are shown in the figure below.

Wall sections in TestCell model

The different wall sections are entered into the model according to the following table.

Wall Section Number	Description	Location in Model	Corresponding Layer
1	South air space connecting to TestCell	surBou[1]
2	West air space connecting to Closet	surBou[2]
3	North exterior wall	datConExt[1]	eleExt
4	East exterior door and wall	Wall: datConExt[2] Door: datConExt[3]	Wall: eleExt Door: extDooUn

There are two additional surfaces which are not included in the diagram. One is the model of the roof. It is modeled in datConExt[4] using the layer roo. The other is the floor, which is modeled in datConBou[1] using the layer slaCon.

Several of the connections in this model are intended to be connected to specific surfaces in other room models. The following table describes the connections to rooms which are not in the X3B package. The constructions in datConExt are not described in the table because they are connected to the external environment, and no additional heat port connections are necessary. A rationale for why the model is created this way is also provided if it is considered necessary.

Location in Electrical	Description of External Connection	Rationale
surf_conBou[1]	Connection to ground temperature model	This port represents the bottom of the floor in the space. It is to be connected to a heat port representing the temperature of the ground.

Extends from Buildings.Rooms.MixedAir (Model of a room in which the air is completely mixed).

Parameters

Type	Name	Default	Description
ParameterConstructionWithWindow	datConExtWin[NConExtWin]	datConExtWin(each T_a_start=...	Data for exterior construction with window
ParameterConstruction	datConPar[NConPar]	datConPar(each T_a_start=T_s...	Data for partition construction
Brick120	dummyCon		Dummy construction to assign a parameter to the instance
SingleClear3	dummyGlaSys		Dummy construction to assign a parameter to the instance
replaceable package Medium		PartialMedium	Medium in the component
Angle	lat	0.66098585832754	Latitude [rad]
Area	AFlo	2.39	Floor area [m2]
Length	hRoo	3.6576	Average room height [m]
Boolean	linearizeRadiation	true	Set to true to linearize emissive power
Construction3	eleExt	redeclare Data.Constructions...	Construction describing the exterior walls in the electrical room
ExteriorDoorUninsulated	extDooUn	redeclare Data.Constructions...	Construction describing the door in the electrical room
ASHRAE_901_2010Roof	roo	redeclare Data.Constructions...	Construction describing the roof of the electrical room
Exterior constructions
Integer	nConExt	4	Number of exterior constructions
Integer	nConExtWin	0	Number of window constructions
Partition constructions
Integer	nConPar	0	Number of partition constructions
Boundary constructions
Integer	nConBou	1	Number of constructions that have their outside surface exposed to the boundary of this room
Integer	nSurBou	2	Number of surface heat transfer models that connect to constructions that are modeled outside of this room
Convective heat transfer
InteriorConvection	intConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for room-facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hIntFixed	3.0	Constant convection coefficient for room-facing surfaces of opaque constructions [W/(m2.K)]
ExteriorConvection	extConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for exterior facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hExtFixed	10.0	Constant convection coefficient for exterior facing surfaces of opaque constructions [W/(m2.K)]
Nominal condition
MassFlowRate	m_flow_nominal	V*1.2/3600	Nominal mass flow rate [kg/s]
Advanced
Boolean	homotopyInitialization	true	= true, use homotopy method
Dynamics
Equations
Dynamics	energyDynamics	Modelica.Fluid.Types.Dynamic...	Formulation of energy balance
Dynamics	massDynamics	energyDynamics	Formulation of mass balance
Real	mSenFac	1	Factor for scaling the sensible thermal mass of the volume
Initialization
AbsolutePressure	p_start	Medium.p_default	Start value of pressure [Pa]
Temperature	T_start	Medium.T_default	Start value of temperature [K]
MassFraction	X_start[Medium.nX]	Medium.X_default	Start value of mass fractions m_i/m [kg/kg]
ExtraProperty	C_start[Medium.nC]	fill(0, Medium.nC)	Start value of trace substances
ExtraProperty	C_nominal[Medium.nC]	fill(1E-2, Medium.nC)	Nominal value of trace substances. (Set to typical order of magnitude.)

Connectors

Type	Name	Description
VesselFluidPorts_b	ports[nPorts]	Fluid inlets and outlets
HeatPort_a	heaPorAir	Heat port to air volume
HeatPort_a	heaPorRad	Heat port for radiative heat gain and radiative temperature
HeatPort_a	surf_conBou[nConBou]	Heat port at surface b of construction conBou
HeatPort_a	surf_surBou[nSurBou]	Heat port of surface that is connected to the room air
input RealInput	qGai_flow[3]	Radiant, convective and latent heat input into room (positive if heat gain) [W/m2]
Bus	weaBus
input RealInput	uSha[nConExtWin]	Control signal for the shading device (removed if no shade is present)

Modelica definition

model Electrical "Model of the electrical room attached to test cell X3A" extends Buildings.Rooms.MixedAir( hRoo = 3.6576, AFlo = 2.39, lat = 0.66098585832754, nSurBou = 2, nConExt=4, nConExtWin=0, nConPar=0, nConBou=1, surBou( A = {3.6576 * 1.2641, 3.6576 * 1.524}, each absIR = 0.9, each absSol = 0.9, each til = Buildings.Types.Tilt.Wall), datConExt( layers = {eleExt, eleExt, extDooUn, roo}, A = {3.6576 * 1.26413, 3.6576 * 1.524 - 2.38658 * 1.524, 2.38658*1.524, 2.39}, til = {Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Ceiling}, azi = {Buildings.Types.Azimuth.N, Buildings.Types.Azimuth.E, Buildings.Types.Azimuth.E, Buildings.Types.Azimuth.N}), datConBou( layers = {slaCon}, A = {2.39}, til = {Buildings.Types.Tilt.Floor}, azi = {Buildings.Types.Azimuth.N})); replaceable Data.Constructions.OpaqueConstructions.ExteriorConstructions.Construction3 eleExt "Construction describing the exterior walls in the electrical room"; replaceable Data.Constructions.OpaqueConstructions.ExteriorConstructions.ExteriorDoorUninsulated extDooUn "Construction describing the door in the electrical room"; replaceable Data.Constructions.OpaqueConstructions.Roofs.ASHRAE_901_2010Roof roo "Construction describing the roof of the electrical room"; HeatTransfer.Data.OpaqueConstructions.Generic slaCon(nLay=3, material={ Buildings.HeatTransfer.Data.Solids.Generic( x=0.1524, k=1.13, c=1000, d=1400, nSta=5), Buildings.HeatTransfer.Data.Solids.Generic( x=0.127, k=0.036, c=1200, d=40), Buildings.HeatTransfer.Data.Solids.Generic( x=0.2, k=1.8, c=1100, d=2400)}) "Construction of the slab"; end Electrical;

Buildings.Rooms.FLEXLAB.Rooms.X3B.TestCell

Model of LBNL User Test Facility Cell X3A

Buildings.Rooms.FLEXLAB.Rooms.X3B.TestCell

Information

This is a model for test cell 3B in the LBNL User Facility. This model is intended to represent the main space in test cell 3B. This documentation describes the wall constructions used to model test cell X3B. Documentation describing how it is to be combined to other room models to create a model of the full test cell can be found in Buildings.Rooms.FLEXLAB.Rooms.X3B.

There are 6 different wall sections described in the model. They are shown in the figure below.

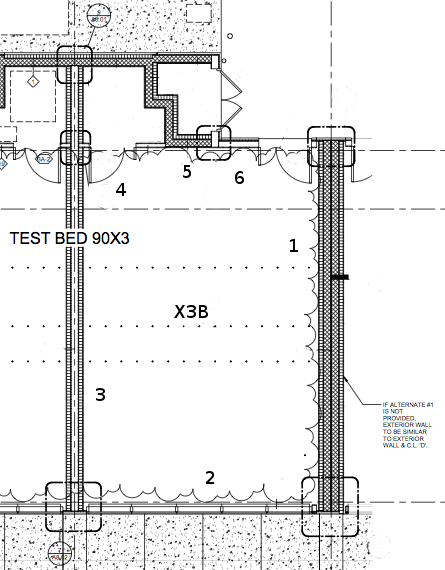

Wall sections in test cell model

The different wall sections are entered into the model according to the following table.

Wall Section Number	Description	Location in Model	Corresponding Layer
1	East exterior wall	datConExt[4]	EWal
2	South exterior wall with windows	datConExtWin[1]	R16p8Wal
3	West wall separating X3B and X3A	datConBou[1]	celDiv
4	North partition wall separating X3B and the closet	Wall: datConBou[2] Door: datConBou[3]	Wall: parCon Door: parDoo
5	North wall separating X3B and the electrical room	datConBou[4]	R52Wal
6	North exterior wall and door	Door: datConExt[1] Wall: datConExt[2]	Door: extDoo Wall: R16p8Wal

A seventh construction, not shown in the figure, models the ceiling. It is modeled in datConExt[3] using the layer R20Wal.

The test cell can be configured with several different floor types. The options include radiant conditioning, a slab on grade floor with no conditioning, or a raised floor. Because of this uncertainty in floor design, a model of the floor itself is not included in this model. The user must include a model for the floor in any applications of this model.

Several of the connections in this model are intended to be connected to specific surfaces in other room models. The following table describes the connections to models outside of the X3A package. The connections in datConExt are not described in the table because they are connected to the external environment, and no additional heat port connections are necessary.

Location in TestCell	Description of External Connection	Location in External Model
surf_conBou[1]	Temperature of test cell X3A	X3A.TestCellNoCelDiv.surf_surBou[2]

Extends from Buildings.Rooms.MixedAir (Model of a room in which the air is completely mixed).

Parameters

Type	Name	Default	Description
ParameterConstruction	datConPar[NConPar]	datConPar(each T_a_start=T_s...	Data for partition construction
Brick120	dummyCon		Dummy construction to assign a parameter to the instance
SingleClear3	dummyGlaSys		Dummy construction to assign a parameter to the instance
replaceable package Medium		PartialMedium	Medium in the component
Angle	lat	0.66098585832754	Latitude [rad]
Area	AFlo	60.97	Floor area [m2]
Length	hRoo	3.6576	Average room height [m]
Boolean	linearizeRadiation	true	Set to true to linearize emissive power
Construction10and23	R16p8Wal	redeclare Data.Constructions...
CellAndElectricalDividingWall	R52Wal	redeclare Data.Constructions...
ASHRAE_901_2010Roof	R20Wal	redeclare Data.Constructions...
ASHRAE901Gla	glaSys	redeclare Data.Constructions...
PartitionWall	parCon	redeclare Data.Constructions...
TestCellDividngWall	celDiv	redeclare Data.Constructions...	Construction of wall connecting to cell UF90X3B
PartitionDoor	parDoo	redeclare Data.Constructions...	Door used in partition walls in FLEXLAB test cells
ExteriorDoorInsulated	extDoo	redeclare Data.Constructions...	Construction of an exterior door
Exterior constructions
Integer	nConExt	4	Number of exterior constructions
Integer	nConExtWin	1	Number of window constructions
Partition constructions
Integer	nConPar	0	Number of partition constructions
Boundary constructions
Integer	nConBou	4	Number of constructions that have their outside surface exposed to the boundary of this room
Integer	nSurBou	4	Number of surface heat transfer models that connect to constructions that are modeled outside of this room
Convective heat transfer
InteriorConvection	intConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for room-facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hIntFixed	3.0	Constant convection coefficient for room-facing surfaces of opaque constructions [W/(m2.K)]
ExteriorConvection	extConMod	Buildings.HeatTransfer.Types...	Convective heat transfer model for exterior facing surfaces of opaque constructions
CoefficientOfHeatTransfer	hExtFixed	10.0	Constant convection coefficient for exterior facing surfaces of opaque constructions [W/(m2.K)]
Nominal condition
MassFlowRate	m_flow_nominal	V*1.2/3600	Nominal mass flow rate [kg/s]
Advanced
Boolean	homotopyInitialization	true	= true, use homotopy method
Dynamics
Equations
Dynamics	energyDynamics	Modelica.Fluid.Types.Dynamic...	Formulation of energy balance
Dynamics	massDynamics	energyDynamics	Formulation of mass balance
Real	mSenFac	1	Factor for scaling the sensible thermal mass of the volume
Initialization
AbsolutePressure	p_start	Medium.p_default	Start value of pressure [Pa]
Temperature	T_start	Medium.T_default	Start value of temperature [K]
MassFraction	X_start[Medium.nX]	Medium.X_default	Start value of mass fractions m_i/m [kg/kg]
ExtraProperty	C_start[Medium.nC]	fill(0, Medium.nC)	Start value of trace substances
ExtraProperty	C_nominal[Medium.nC]	fill(1E-2, Medium.nC)	Nominal value of trace substances. (Set to typical order of magnitude.)

Connectors

Type	Name	Description
VesselFluidPorts_b	ports[nPorts]	Fluid inlets and outlets
HeatPort_a	heaPorAir	Heat port to air volume
HeatPort_a	heaPorRad	Heat port for radiative heat gain and radiative temperature
HeatPort_a	surf_conBou[nConBou]	Heat port at surface b of construction conBou
HeatPort_a	surf_surBou[nSurBou]	Heat port of surface that is connected to the room air
input RealInput	qGai_flow[3]	Radiant, convective and latent heat input into room (positive if heat gain) [W/m2]
Bus	weaBus
input RealInput	uSha[nConExtWin]	Control signal for the shading device (removed if no shade is present)

Modelica definition

model TestCell "Model of LBNL User Test Facility Cell X3A" extends Buildings.Rooms.MixedAir(AFlo=60.97, nSurBou=4, nConPar=0, nConBou=4, nConExt=4, nConExtWin=1, hRoo=3.6576, surBou( A = {6.645*3.09, 6.645*1.51, 6.645*0.91, 6.645*3.65}, each absIR=0.9, each absSol=0.9, each til=Buildings.Types.Tilt.Floor), datConExt( layers={extDoo, R16p8Wal, R20Wal, EWal}, A={1.3716 * 2.39, 3.6576*2.52-2.39*1.3716, 6.6675*9.144,3.6576*9.144}, til={Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Ceiling, Buildings.Types.Tilt.Wall}, azi={Buildings.Types.Azimuth.N,Buildings.Types.Azimuth.N, Buildings.Types.Azimuth.S, Buildings.Types.Azimuth.E}), datConBou( layers = {celDiv, parCon, parDoo, R52Wal}, A = {3.6576 * 9.144, 3.6576*2.886075-2.39*1.22, 2.39*1.22, 3.6576*1.2614}, til = {Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall, Buildings.Types.Tilt.Wall}, azi = {Buildings.Types.Azimuth.W, Buildings.Types.Azimuth.N, Buildings.Types.Azimuth.N, Buildings.Types.Azimuth.N}), datConExtWin( layers={R16p8Wal}, A={6.6675*3.6576}, glaSys={glaSys}, hWin={1.8288}, wWin={5.88}, til={Buildings.Types.Tilt.Wall}, azi={Buildings.Types.Azimuth.S}), intConMod=Buildings.HeatTransfer.Types.InteriorConvection.Temperature, extConMod=Buildings.HeatTransfer.Types.ExteriorConvection.TemperatureWind, lat=0.66098585832754); replaceable Data.Constructions.OpaqueConstructions.ExteriorConstructions.Construction10and23 R16p8Wal; replaceable Data.Constructions.OpaqueConstructions.DividingWalls.CellAndElectricalDividingWall R52Wal; replaceable Data.Constructions.OpaqueConstructions.Roofs.ASHRAE_901_2010Roof R20Wal; replaceable Data.Constructions.GlazingSystems.ASHRAE901Gla glaSys; replaceable Data.Constructions.OpaqueConstructions.PartitionConstructions.PartitionWall parCon; replaceable Data.Constructions.OpaqueConstructions.DividingWalls.TestCellDividngWall celDiv "Construction of wall connecting to cell UF90X3B"; replaceable Data.Constructions.OpaqueConstructions.PartitionConstructions.PartitionDoor parDoo "Door used in partition walls in FLEXLAB test cells"; replaceable Data.Constructions.OpaqueConstructions.ExteriorConstructions.ExteriorDoorInsulated extDoo "Construction of an exterior door"; Data.Constructions.OpaqueConstructions.ExteriorConstructions.Construction1 EWal; end TestCell;

Automatically generated Mon May 4 10:25:23 2015.
