Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.Validation
Collection of validation models
Information
This package contains validation models for the classes in Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.
Extends from Modelica.Icons.ExamplesPackage (Icon for packages containing runnable examples).
Package Content
| Name | Description |
|---|---|
 TableData2DLoadDep
|
|
| TableData2DLoadDepSHC
|
|
| TableData2DLoadDepSHCVariable
|

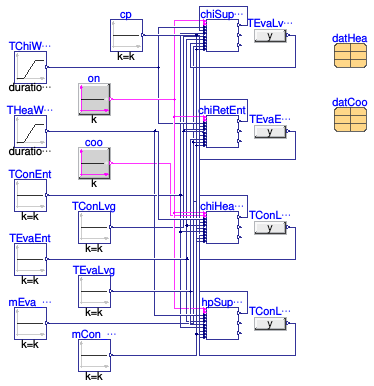

Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.Validation.TableData2DLoadDep
Information
This model validates the load calculation logic of the block Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDep for different system configurations and operating modes.
-
The component
chiSupLvgvalidates the block for chiller applications with CHW supply temperature control and performance data interpolation based on evaporator and condenser leaving temperature. -
The component
chiRetEntvalidates the block for chiller applications with CHW return temperature control and performance data interpolation based on evaporator leaving and condenser entering temperature. -
The component
chiHeaSupLvgvalidates the block for heat recovery chiller applications with HW supply temperature control and performance data interpolation based on evaporator and condenser leaving temperature. -
The component
hpSupLvgvalidates the block for heat pump applications with HW supply temperature control and performance data interpolation based on evaporator and condenser leaving temperature.
The validation is carried out by computing the tracked temperature using the heat flow rate calculated by the block, and feeding back this variable along with the required part load ratio as inputs. It is then expected that the tracked temperature matches the setpoint. Further validation of the performance calculation algorithm by comparison to polynomial chiller models is available in the package Buildings.Fluid.Chillers.ModularReversible.Validation.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| GenericHeatPump | datHea | datHea(fileName=Modelica.Uti... | Heat pump performance data |
| Generic | datCoo | datCoo(fileName=Modelica.Uti... | Chiller performance data |
Modelica definition
model TableData2DLoadDep
extends Modelica.Icons.Example;
Buildings.Controls.OBC.CDL.Reals.Sources.Ramp TChiWatSet(
height=TEvaEnt.k - TEvaLvg.k,
duration=80,
offset=TEvaLvg.k,
startTime=10,
y(final unit="K",
displayUnit="degC"))
"CHW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Ramp THeaWatSet(
height=TConLvg.k - TConEnt.k,
duration=80,
offset=TConEnt.k,
startTime=10,
y(final unit="K",
displayUnit="degC"))
"HW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TConEnt(
k=TConLvg.k - 889828 / datCoo.mCon_flow_nominal / cp.k,
y(final unit="K",
displayUnit="degC"))
"TConInMea in HP hea. cycle, TEvaInMea in HP coo. cycle, TConInMea in chiller coo. cycle, TEvaInMea in chiller hea. cycle";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TConLvg(
k=63 + 273.15,
y(final unit="K",
displayUnit="degC"))
"TConOutMea in HP hea. cycle, TEvaOutMea in HP coo. cycle, TConOutMea in chiller coo. cycle, TEvaOutMea in chiller hea. cycle";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TEvaEnt(
k=TEvaLvg.k + 630369 / datCoo.mEva_flow_nominal / cp.k,
y(final unit="K",
displayUnit="degC"))
"TEvaInMea in HP hea. cycle, TConInMea in HP coo. cycle, TEvaInMea in chiller coo. cycle, TConInMea in chiller hea. cycle";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TEvaLvg(
k=6 + 273.15,
y(final unit="K",
displayUnit="degC"))
"TEvaOutMea in HP hea. cycle, TConOutMea in HP coo. cycle, TEvaOutMea in chiller coo. cycle, TConOutMea in chiller hea. cycle";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDep
chiSupLvg(
typ=1,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRSup=datCoo.PLRSup,
fileName=datCoo.fileName,
TLoa_nominal=TEvaLvg.k,
TAmb_nominal=TConLvg.k)
"Chiller with CHWST control and performance data interpolation based on leaving temperature";
parameter Data.TableData2DLoadDep.GenericHeatPump datHea(
fileName=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/Examples/TableData2DLoadDep_HP.txt"),
PLRSup={0.45,0.5,0.55,0.6,0.65,0.7,0.75,0.8,0.9,1.0},
PLRCyc_min=0.2,
mCon_flow_nominal=45,
mEva_flow_nominal=30,
dpCon_nominal=40E3,
dpEva_nominal=37E3,
devIde="30XW852",
use_TEvaOutForTab=true,
use_TConOutForTab=true,
tabUppBou=[
276.45, 336.15;
303.15, 336.15],
use_TConOutForOpeEnv=true,
use_TEvaOutForOpeEnv=true)
"Heat pump performance data";
parameter Chillers.ModularReversible.Data.TableData2DLoadDep.Generic datCoo(
fileName=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/Examples/TableData2DLoadDep_Chiller.txt"),
PLRSup={0.45,0.5,0.55,0.6,0.65,0.7,0.75,0.8,0.9,1.0},
PLRCyc_min=0.2,
mCon_flow_nominal=45,
mEva_flow_nominal=30,
dpCon_nominal=40E3,
dpEva_nominal=37E3,
devIde="30XW852",
use_TEvaOutForTab=true,
use_TConOutForTab=true,
tabLowBou=[
292.15, 276.45;
336.15, 276.45],
use_TConOutForOpeEnv=true,
use_TEvaOutForOpeEnv=true)
"Chiller performance data";
Buildings.Controls.OBC.CDL.Logical.Sources.Constant on(
k=true)
"On/off signal";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mEva_flow(
k=datCoo.mEva_flow_nominal)
"mEvaMea_flow in HP hea. cycle, mConMea_flow in HP coo. cycle, mEvaMea_flow in chiller coo. cycle, mConMea_flow in chiller hea. cycle";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mCon_flow(
k=datCoo.mCon_flow_nominal)
"mConMea_flow in HP hea. cycle, mEvaMea_flow in HP coo. cycle, mConMea_flow in chiller coo. cycle, mEvaMea_flow in chiller hea. cycle";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant cp(
k=Buildings.Media.Water.cp_const)
"Specific heat capacity of load side fluid";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDep
chiRetEnt(
typ=1,
use_TLoaLvgForCtl=false,
use_TEvaOutForTab=true,
use_TConOutForTab=false,
PLRSup=datCoo.PLRSup,
fileName=datCoo.fileName,
TLoa_nominal=TEvaLvg.k,
TAmb_nominal=TConEnt.k)
"Chiller with CHWRT control and performance data interpolation based on CW entering temperature";
Modelica.Blocks.Sources.RealExpression TEvaLvgChiSupLvg(
y=chiSupLvg.TLoaEnt + chiSupLvg.Q_flow / chiSupLvg.mLoa_flow / chiSupLvg.cpLoa)
"Calculate evaporator leaving temperature";
Modelica.Blocks.Sources.RealExpression TEvaEntChiRetEnt(
y=chiRetEnt.TLoaLvg - chiRetEnt.Q_flow / chiRetEnt.mLoa_flow / chiRetEnt.cpLoa)
"Calculate evaporator entering temperature";
Buildings.Controls.OBC.CDL.Logical.Sources.Constant coo(
k=false)
"Cooling mode enable";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDep
chiHeaSupLvg(
typ=2,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRSup=datCoo.PLRSup,
fileName=datCoo.fileName,
TLoa_nominal=TEvaLvg.k,
TAmb_nominal=TConLvg.k)
"Heat recovery chiller with CHWST control and performance data interpolation based on leaving temperature";
Modelica.Blocks.Sources.RealExpression TConLvgChiHeaSupLvg(
y=chiHeaSupLvg.TLoaEnt +(chiHeaSupLvg.P - chiHeaSupLvg.Q_flow) /
chiHeaSupLvg.mLoa_flow / chiHeaSupLvg.cpLoa)
"Calculate condenser leaving temperature";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDep
hpSupLvg(
typ=3,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRSup=datHea.PLRSup,
fileName=datHea.fileName,
TLoa_nominal=TConLvg.k,
TAmb_nominal=TEvaLvg.k)
"Heat pump with HWST control and performance data interpolation based on leaving temperature";
Modelica.Blocks.Sources.RealExpression TConLvgHpSupLvg(
y=hpSupLvg.TLoaEnt + hpSupLvg.Q_flow / hpSupLvg.mLoa_flow / hpSupLvg.cpLoa)
"Calculate condenser leaving temperature";
equation
connect(on.y, chiSupLvg.on);
connect(TChiWatSet.y, chiSupLvg.TSet);
connect(TConEnt.y, chiSupLvg.TAmbEnt);
connect(TConLvg.y, chiSupLvg.TAmbLvg);
connect(mEva_flow.y, chiSupLvg.mLoa_flow);
connect(cp.y, chiSupLvg.cpLoa);
connect(on.y, chiRetEnt.on);
connect(TChiWatSet.y, chiRetEnt.TSet);
connect(TConEnt.y, chiRetEnt.TAmbEnt);
connect(TConLvg.y, chiRetEnt.TAmbLvg);
connect(TEvaLvg.y, chiRetEnt.TLoaLvg);
connect(mEva_flow.y, chiRetEnt.mLoa_flow);
connect(cp.y, chiRetEnt.cpLoa);
connect(chiSupLvg.PLR, chiSupLvg.yMea);
connect(chiRetEnt.PLR, chiRetEnt.yMea);
connect(TEvaLvgChiSupLvg.y, chiSupLvg.TLoaLvg);
connect(TEvaEnt.y, chiSupLvg.TLoaEnt);
connect(TEvaEntChiRetEnt.y, chiRetEnt.TLoaEnt);
connect(on.y, chiHeaSupLvg.on);
connect(cp.y, chiHeaSupLvg.cpLoa);
connect(cp.y, chiRetEnt.cpLoa);
connect(chiHeaSupLvg.PLR, chiHeaSupLvg.yMea);
connect(coo.y, chiHeaSupLvg.coo);
connect(TConLvgHpSupLvg.y, hpSupLvg.TLoaLvg);
connect(on.y, hpSupLvg.on);
connect(TEvaEnt.y, hpSupLvg.TAmbEnt);
connect(TEvaLvg.y, hpSupLvg.TAmbLvg);
connect(TConEnt.y, hpSupLvg.TLoaEnt);
connect(THeaWatSet.y, hpSupLvg.TSet);
connect(hpSupLvg.PLR, hpSupLvg.yMea);
connect(mCon_flow.y, hpSupLvg.mLoa_flow);
connect(cp.y, hpSupLvg.cpLoa);
connect(TEvaLvg.y, chiHeaSupLvg.TAmbLvg);
connect(TEvaEnt.y, chiHeaSupLvg.TAmbEnt);
connect(TConEnt.y, chiHeaSupLvg.TLoaEnt);
connect(TConLvgChiHeaSupLvg.y, chiHeaSupLvg.TLoaLvg);
connect(mCon_flow.y, chiHeaSupLvg.mLoa_flow);
connect(THeaWatSet.y, chiHeaSupLvg.TSet);
end TableData2DLoadDep;

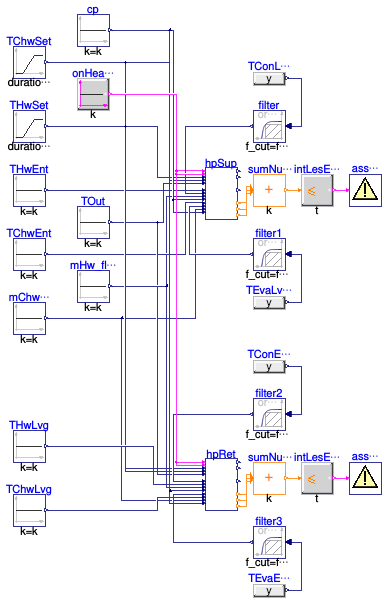

Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.Validation.TableData2DLoadDepSHC
Information
This model validates the load calculation and staging logic of the block
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDepSHC.
The two available control options are tested:
the component hpSup uses supply temperature control,
while the component hpRet uses return temperature control.
The model represents a three-module system operating in constant
simultaneous heating and cooling mode with the on/off command
always true.
The validation is carried out by computing the tracked temperature using the heat flow rate calculated by the block, and feeding back this variable as input to the heat pump model. It is then expected that the tracked temperature matches the setpoint, under the constraints of step-by-step staging and minimum stage runtime. Note that a filtered value of the tracked temperature is used to avoid creating an algebraic loop.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Nominal condition | |||
| Temperature | THwSup_nominal | 323.15 | HW supply temperature [K] |
| Temperature | THwRet_nominal | 315.15 | HW return temperature [K] |
| Temperature | TChwSup_nominal | 280.15 | CHW supply temperature [K] |
| Temperature | TChwRet_nominal | 285.15 | CHW return temperature [K] |
| MassFlowRate | mHw_flow_nominal | QHea_flow_nominal/(THwSup_no... | HW mass flow rate [kg/s] |
| MassFlowRate | mChw_flow_nominal | QCoo_flow_nominal/(TChwSup_n... | CHW mass flow rate [kg/s] |
| Nominal condition - Heating mode | |||
| Temperature | TAmbHea_nominal | 268.15 | OA temperature [K] |
| HeatFlowRate | QHea_flow_nominal | 58E3 | Heating heat flow rate - Heating mode [W] |
| HeatFlowRate | QHeaShc_flow_nominal | 85E3 | Heating heat flow rate - SHC mode [W] |
| Nominal condition - Cooling mode | |||
| Temperature | TAmbCoo_nominal | 308.15 | Ambient side fluid temperature — Entering or leaving depending on use_TAmbOutForTab [K] |
| HeatFlowRate | QCoo_flow_nominal | -73E3 | Cooling heat flow rate - Cooling mode [W] |
| HeatFlowRate | QCooShc_flow_nominal | -65E3 | Cooling heat flow rate - SHC mode [W] |
Modelica definition
model TableData2DLoadDepSHC
extends Modelica.Icons.Example;
parameter Modelica.Units.SI.Temperature THwSup_nominal=323.15
"HW supply temperature";
parameter Modelica.Units.SI.Temperature THwRet_nominal=315.15
"HW return temperature";
parameter Modelica.Units.SI.Temperature TChwSup_nominal=280.15
"CHW supply temperature";
parameter Modelica.Units.SI.Temperature TChwRet_nominal=285.15
"CHW return temperature";
parameter Modelica.Units.SI.Temperature TAmbHea_nominal=268.15
"OA temperature";
parameter Modelica.Units.SI.HeatFlowRate QHea_flow_nominal = 58E3
"Heating heat flow rate - Heating mode";
parameter Modelica.Units.SI.HeatFlowRate QHeaShc_flow_nominal = 85E3
"Heating heat flow rate - SHC mode";
parameter Modelica.Units.SI.Temperature TAmbCoo_nominal=308.15
"Ambient side fluid temperature — Entering or leaving depending on use_TAmbOutForTab";
parameter Modelica.Units.SI.HeatFlowRate QCoo_flow_nominal = -73E3
"Cooling heat flow rate - Cooling mode";
parameter Modelica.Units.SI.HeatFlowRate QCooShc_flow_nominal = -65E3
"Cooling heat flow rate - SHC mode";
parameter Modelica.Units.SI.MassFlowRate mHw_flow_nominal=
QHea_flow_nominal / (THwSup_nominal - THwRet_nominal) /
Buildings.Media.Water.cp_const
"HW mass flow rate";
parameter Modelica.Units.SI.MassFlowRate mChw_flow_nominal=
QCoo_flow_nominal / (TChwSup_nominal - TChwRet_nominal) /
Buildings.Media.Water.cp_const
"CHW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.Ramp TChwSet(
height=TChwEnt.k - TChwSup_nominal,
duration=2500,
offset=TChwSup_nominal,
startTime=1000,
y(final unit="K", displayUnit="degC"))
"CHW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Ramp THwSet(
height=THwEnt.k - THwSup_nominal,
duration=2000,
offset=THwSup_nominal,
startTime=500,
y(final unit="K", displayUnit="degC"))
"HW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant THwEnt(k=THwSup_nominal +
(THwRet_nominal - THwSup_nominal)*QHeaShc_flow_nominal/QHea_flow_nominal,
y(final unit="K", displayUnit="degC")) "Condenser entering HW temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TChwEnt(k=TChwSup_nominal +
(TChwRet_nominal - TChwSup_nominal)* QCooShc_flow_nominal /QCoo_flow_nominal,
y(final unit="K", displayUnit="degC"))
"Evaporator entering CHW temperature";
Buildings.Controls.OBC.CDL.Logical.Sources.Constant onHeaCoo(k=true)
"Heating and cooling on/off command";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mChw_flow(k=
mChw_flow_nominal)
"CHW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mHw_flow(k=mHw_flow_nominal)
"HW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant cp(
k=Buildings.Media.Water.cp_const)
"Specific heat capacity of load side fluid";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDepSHC
hpSup(
nUni=3,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRHeaSup={1},
PLRCooSup={1},
PLRShcSup={1},
fileNameHea=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Heating.txt"),
fileNameCoo=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Cooling.txt"),
fileNameShc=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_SHC.txt"),
final THw_nominal=THwSup_nominal,
final TChw_nominal=TChwSup_nominal,
TAmbHea_nominal=TAmbHea_nominal,
final QHea_flow_nominal=QHea_flow_nominal,
final TAmbCoo_nominal=TAmbCoo_nominal,
final QCoo_flow_nominal=QCoo_flow_nominal,
final QHeaShc_flow_nominal=QHeaShc_flow_nominal,
final QCooShc_flow_nominal=QCooShc_flow_nominal)
"Heat pump with supply temperature control";
Modelica.Blocks.Sources.RealExpression TConLvgHpSup(y=hpSup.THwEnt + hpSup.QHea_flow
/hpSup.mHw_flow/hpSup.cpHw) "Calculate condenser leaving temperature";
Modelica.Blocks.Sources.RealExpression TEvaLvgHpSup(y=hpSup.TChwEnt + hpSup.QCoo_flow
/hpSup.mChw_flow/hpSup.cpChw)
"Calculate evaporator leaving temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TOut(k=15 + 273.15, y(
final unit="K", displayUnit="degC")) "OA temperature";
Modelica.Blocks.Continuous.Filter filter(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=THwSup_nominal) "Filter to avoid algebraic loop";
Modelica.Blocks.Continuous.Filter filter1(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=TChwSup_nominal) "Filter to avoid algebraic loop";
Buildings.Controls.OBC.CDL.Integers.MultiSum sumNumUni(nin=3)
"Total number of enabled modules";
Buildings.Controls.OBC.CDL.Integers.LessEqualThreshold intLesEquThr(t=hpSup.nUni)
"True if number of enabled modules lower or equal to number of modules";
Buildings.Controls.OBC.CDL.Utilities.Assert assMes(
message="Number of enabled modules exceeds number of modules")
"Assert condition on number of enabled modules";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDepSHC
hpRet(
nUni=3,
use_TLoaLvgForCtl=false,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRHeaSup={1},
PLRCooSup={1},
PLRShcSup={1},
fileNameHea=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Heating.txt"),
fileNameCoo=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Cooling.txt"),
fileNameShc=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_SHC.txt"),
final THw_nominal=THwSup_nominal,
final TChw_nominal=TChwSup_nominal,
TAmbHea_nominal=TAmbHea_nominal,
final QHea_flow_nominal=QHea_flow_nominal,
final TAmbCoo_nominal=TAmbCoo_nominal,
final QCoo_flow_nominal=QCoo_flow_nominal,
final QHeaShc_flow_nominal=QHeaShc_flow_nominal,
final QCooShc_flow_nominal=QCooShc_flow_nominal)
"Heat pump with return temperature control";
Modelica.Blocks.Sources.RealExpression TConEntHpRet(y=hpRet.THwLvg - hpRet.QHea_flow
/hpRet.mHw_flow/hpRet.cpHw) "Calculate condenser entering temperature";
Modelica.Blocks.Sources.RealExpression TEvaEntHpRet(y=hpRet.TChwLvg - hpRet.QCoo_flow
/hpRet.mChw_flow/hpRet.cpChw)
"Calculate evaporator entering temperature";
Modelica.Blocks.Continuous.Filter filter2(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=THwSup_nominal) "Filter to avoid algebraic loop";
Modelica.Blocks.Continuous.Filter filter3(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=TChwSup_nominal) "Filter to avoid algebraic loop";
Buildings.Controls.OBC.CDL.Integers.MultiSum sumNumUni1(nin=3)
"Total number of enabled modules";
Buildings.Controls.OBC.CDL.Integers.LessEqualThreshold intLesEquThr1(t=hpSup.nUni)
"True if number of enabled modules lower or equal to number of modules";
Buildings.Controls.OBC.CDL.Utilities.Assert assMes1(message=
"Number of enabled modules exceeds number of modules")
"Assert condition on number of enabled modules";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TChwLvg(k=TChwSup_nominal,
y(final unit="K", displayUnit="degC")) "CHW leaving temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant THwLvg(k=THwSup_nominal, y(
final unit="K", displayUnit="degC")) "HW leaving temperature";
equation
connect(cp.y, hpSup.cpChw);
connect(mHw_flow.y, hpSup.mHw_flow);
connect(THwEnt.y, hpSup.THwEnt);
connect(TChwSet.y, hpSup.TChwSet);
connect(THwSet.y, hpSup.THwSet);
connect(TChwEnt.y, hpSup.TChwEnt);
connect(TOut.y, hpSup.TAmbEnt);
connect(mChw_flow.y, hpSup.mChw_flow);
connect(cp.y, hpSup.cpHw);
connect(TConLvgHpSup.y, filter.u);
connect(TEvaLvgHpSup.y, filter1.u);
connect(onHeaCoo.y, hpSup.onHea);
connect(hpSup.nUniHea, sumNumUni.u[1]);
connect(hpSup.nUniCoo, sumNumUni.u[2]);
connect(hpSup.nUniShc, sumNumUni.u[3]);
connect(sumNumUni.y, intLesEquThr.u);
connect(intLesEquThr.y, assMes.u);
connect(filter.y, hpSup.THwLvg);
connect(filter1.y, hpSup.TChwLvg);
connect(TConEntHpRet.y, filter2.u);
connect(TEvaEntHpRet.y, filter3.u);
connect(sumNumUni1.y, intLesEquThr1.u);
connect(intLesEquThr1.y, assMes1.u);
connect(onHeaCoo.y, hpRet.onHea);
connect(TOut.y, hpRet.TAmbEnt);
connect(mChw_flow.y, hpRet.mChw_flow);
connect(mHw_flow.y, hpRet.mHw_flow);
connect(TChwSet.y, hpRet.TChwSet);
connect(THwSet.y, hpRet.THwSet);
connect(hpRet.nUniHea, sumNumUni1.u[1]);
connect(hpRet.nUniCoo, sumNumUni1.u[2]);
connect(hpRet.nUniShc, sumNumUni1.u[3]);
connect(filter3.y, hpRet.TChwEnt);
connect(filter2.y, hpRet.THwEnt);
connect(TChwLvg.y, hpRet.TChwLvg);
connect(THwLvg.y, hpRet.THwLvg);
connect(cp.y, hpRet.cpChw);
connect(cp.y, hpRet.cpHw);
connect(onHeaCoo.y, hpSup.onCoo);
connect(onHeaCoo.y, hpRet.onCoo);
end TableData2DLoadDepSHC;

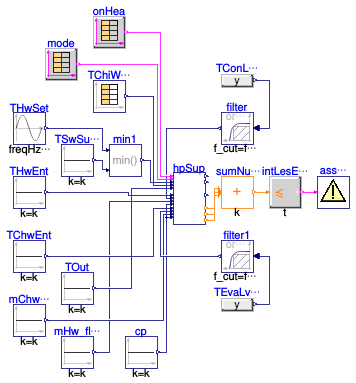

Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.Validation.TableData2DLoadDepSHCVariable
Information
This model validates the load calculation and staging logic of the block Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDepSHC.
The model represents a three-module system.
The operating mode switches between simultaneous heating and cooling,
heating only, and cooling only.
The on/off command starts as true and is switched to
false at the end of the simulated period.
The validation is carried out by computing the tracked temperature using the heat flow rate calculated by the block, and feeding back this variable as input to the heat pump model. It is then expected that the tracked temperature matches the setpoint, under the constraints of step-by-step staging and minimum stage runtime. Note that a filtered value of the tracked temperature is used to avoid creating an algebraic loop.
Extends from Modelica.Icons.Example (Icon for runnable examples).
Parameters
| Type | Name | Default | Description |
|---|---|---|---|
| Nominal condition | |||
| Temperature | THwSup_nominal | 50 + 273.15 | HW supply temperature [K] |
| Temperature | THwRet_nominal | 42 + 273.15 | HW return temperature [K] |
| Temperature | TChwSup_nominal | 7 + 273.15 | CHW supply temperature [K] |
| Temperature | TChwRet_nominal | 12 + 273.15 | CHW return temperature [K] |
| MassFlowRate | mHw_flow_nominal | QHea_flow_nominal/(THwSup_no... | HW mass flow rate [kg/s] |
| MassFlowRate | mChw_flow_nominal | QCoo_flow_nominal/(TChwSup_n... | CHW mass flow rate [kg/s] |
| Nominal condition - Heating mode | |||
| Temperature | TAmbHea_nominal | -5 + 273.15 | OA temperature [K] |
| HeatFlowRate | QHea_flow_nominal | 58E3 | Heating heat flow rate - Heating mode [W] |
| HeatFlowRate | QHeaShc_flow_nominal | 85E3 | Heating heat flow rate - SHC mode [W] |
| Nominal condition - Cooling mode | |||
| Temperature | TAmbCoo_nominal | 35 + 273.15 | Ambient side fluid temperature — Entering or leaving depending on use_TAmbOutForTab [K] |
| HeatFlowRate | QCoo_flow_nominal | -73E3 | Cooling heat flow rate - Cooling mode [W] |
| HeatFlowRate | QCooShc_flow_nominal | -65E3 | Cooling heat flow rate - SHC mode [W] |
Modelica definition
model TableData2DLoadDepSHCVariable
extends Modelica.Icons.Example;
parameter Modelica.Units.SI.Temperature THwSup_nominal = 50 + 273.15
"HW supply temperature";
parameter Modelica.Units.SI.Temperature THwRet_nominal = 42 + 273.15
"HW return temperature";
parameter Modelica.Units.SI.Temperature TChwSup_nominal = 7 + 273.15
"CHW supply temperature";
parameter Modelica.Units.SI.Temperature TChwRet_nominal = 12 + 273.15
"CHW return temperature";
parameter Modelica.Units.SI.Temperature TAmbHea_nominal = -5 + 273.15
"OA temperature";
parameter Modelica.Units.SI.HeatFlowRate QHea_flow_nominal = 58E3
"Heating heat flow rate - Heating mode";
parameter Modelica.Units.SI.HeatFlowRate QHeaShc_flow_nominal = 85E3
"Heating heat flow rate - SHC mode";
parameter Modelica.Units.SI.Temperature TAmbCoo_nominal = 35 + 273.15
"Ambient side fluid temperature — Entering or leaving depending on use_TAmbOutForTab";
parameter Modelica.Units.SI.HeatFlowRate QCoo_flow_nominal = -73E3
"Cooling heat flow rate - Cooling mode";
parameter Modelica.Units.SI.HeatFlowRate QCooShc_flow_nominal = -65E3
"Cooling heat flow rate - SHC mode";
parameter Modelica.Units.SI.MassFlowRate mHw_flow_nominal=
QHea_flow_nominal / (THwSup_nominal - THwRet_nominal) /
Buildings.Media.Water.cp_const
"HW mass flow rate";
parameter Modelica.Units.SI.MassFlowRate mChw_flow_nominal=
QCoo_flow_nominal / (TChwSup_nominal - TChwRet_nominal) /
Buildings.Media.Water.cp_const
"CHW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.TimeTable TChiWatSet(
table=[0,0; 1500,0; 3000,TChwEnt.k - TChwSup_nominal; 3600,TChwEnt.k -
TChwSup_nominal],
offset={TChwSup_nominal},
y(each final unit="K", each displayUnit="degC"))
"CHW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Sin THwSet(
amplitude=THwEnt.k - THwSup_nominal,
freqHz=1/5000,
offset=THwSup_nominal + (THwEnt.k - THwSup_nominal)/2,
startTime=1000,
y(final unit="K", displayUnit="degC"))
"HW supply or return temperature setpoint";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant THwEnt(k=THwSup_nominal +
(THwRet_nominal - THwSup_nominal)*QHeaShc_flow_nominal/QHea_flow_nominal,
y(final unit="K", displayUnit="degC")) "Condenser entering HW temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TChwEnt(k=TChwSup_nominal +
(TChwRet_nominal - TChwSup_nominal)* QCooShc_flow_nominal /QCoo_flow_nominal,
y(final unit="K", displayUnit="degC"))
"Evaporator entering CHW temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mChw_flow(k=
mChw_flow_nominal)
"CHW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant mHw_flow(k=mHw_flow_nominal)
"HW mass flow rate";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant cp(
k=Buildings.Media.Water.cp_const)
"Specific heat capacity of load side fluid";
Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.BaseClasses.TableData2DLoadDepSHC
hpSup(
nUni=3,
use_TEvaOutForTab=true,
use_TConOutForTab=true,
PLRHeaSup={1},
PLRCooSup={1},
PLRShcSup={1},
fileNameHea=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Heating.txt"),
fileNameCoo=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_Cooling.txt"),
fileNameShc=Modelica.Utilities.Files.loadResource(
"modelica://Buildings/Resources/Data/Fluid/HeatPumps/ModularReversible/RefrigerantCycle/BaseClasses/Validation/AWHP_SHC.txt"),
final THw_nominal=THwSup_nominal,
final TChw_nominal=TChwSup_nominal,
TAmbHea_nominal=TAmbHea_nominal,
final QHea_flow_nominal=QHea_flow_nominal,
final TAmbCoo_nominal=TAmbCoo_nominal,
final QCoo_flow_nominal=QCoo_flow_nominal,
final QHeaShc_flow_nominal=QHeaShc_flow_nominal,
final QCooShc_flow_nominal=QCooShc_flow_nominal)
"Heat pump with supply temperature control";
Modelica.Blocks.Sources.RealExpression TConLvgHpSup(y=hpSup.THwEnt + hpSup.QHea_flow
/hpSup.mHw_flow/hpSup.cpHw) "Calculate condenser leaving temperature";
Modelica.Blocks.Sources.RealExpression TEvaLvgHpSup(y=hpSup.TChwEnt + hpSup.QCoo_flow
/hpSup.mChw_flow/hpSup.cpChw)
"Calculate evaporator leaving temperature";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TOut(k=15 + 273.15, y(
final unit="K", displayUnit="degC")) "OA temperature";
Modelica.Blocks.Continuous.Filter filter(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=THwSup_nominal) "Filter to avoid algebraic loop";
Modelica.Blocks.Continuous.Filter filter1(
f_cut=1,
init=Modelica.Blocks.Types.Init.InitialOutput,
y_start=TChwSup_nominal) "Filter to avoid algebraic loop";
Buildings.Controls.OBC.CDL.Reals.Min min1
"Keep HW temperature setpoint below design value";
Buildings.Controls.OBC.CDL.Reals.Sources.Constant TSwSupNom(k=THwSup_nominal,
y(final unit="K", displayUnit="degC")) "Design HW supply temperature";
Buildings.Controls.OBC.CDL.Logical.Sources.TimeTable mode(
table=[0,1; 2,1; 4,0; 6,1; 7,0],
timeScale=1000,
period=7200)
"Operating mode command";
Buildings.Controls.OBC.CDL.Logical.Sources.TimeTable onHea(
table=[0,1; 2,0; 4,1; 7,0],
timeScale=1000,
period=7200) "Heating on/off command";
Buildings.Controls.OBC.CDL.Integers.MultiSum sumNumUni(nin=3)
"Total number of enabled modules";
Buildings.Controls.OBC.CDL.Utilities.Assert assMes(message=
"Number of enabled modules exceeds number of modules")
"Assert condition on number of enabled modules";
Buildings.Controls.OBC.CDL.Integers.LessEqualThreshold intLesEquThr(t=hpSup.nUni)
"True if number of enabled modules lower or equal to number of modules";
equation
connect(cp.y, hpSup.cpChw);
connect(mHw_flow.y, hpSup.mHw_flow);
connect(THwEnt.y, hpSup.THwEnt);
connect(TChwEnt.y, hpSup.TChwEnt);
connect(TOut.y, hpSup.TAmbEnt);
connect(mChw_flow.y, hpSup.mChw_flow);
connect(cp.y, hpSup.cpHw);
connect(TConLvgHpSup.y, filter.u);
connect(TEvaLvgHpSup.y, filter1.u);
connect(filter1.y, hpSup.TChwLvg);
connect(TChiWatSet.y[1], hpSup.TChwSet);
connect(THwSet.y, min1.u1);
connect(min1.y, hpSup.THwSet);
connect(TSwSupNom.y, min1.u2);
connect(filter.y, hpSup.THwLvg);
connect(onHea.y[1], hpSup.onHea);
connect(hpSup.nUniHea, sumNumUni.u[1]);
connect(hpSup.nUniCoo, sumNumUni.u[2]);
connect(hpSup.nUniShc, sumNumUni.u[3]);
connect(sumNumUni.y, intLesEquThr.u);
connect(intLesEquThr.y, assMes.u);
connect(mode.y[1], hpSup.onCoo);
end TableData2DLoadDepSHCVariable;
