model DHWConsumption "DHW tank, HX, thermostatic mixing valve, and sink" replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium in the component"; parameter Boolean allowFlowReversal = true "= false to simplify equations, assuming, but not enforcing, no flow reversal"; parameter Buildings.DHC.Loads.HotWater.Data.GenericDomesticHotWaterWithHeatExchanger dat "Performance data"; parameter Modelica.Units.SI.HeatFlowRate QHotWat_flow_nominal(min=0) "Nominal capacity of heat pump condenser for hot water production system (>=0)"; parameter Modelica.Units.SI.TemperatureDifference dT_nominal(min=Modelica.Constants.eps) "Nominal temperature difference from the condenser"; final parameter Modelica.Units.SI.MassFlowRate m_flow_nominal=QHotWat_flow_nominal/4200/dT_nominal "Nominal mass flow rate"; parameter Medium.Temperature T_start=Medium.T_default "Temperature start value of the tank"; Modelica.Fluid.Interfaces.FluidPort_a port_a( redeclare final package Medium = Medium, m_flow(min=if allowFlowReversal then -Modelica.Constants.inf else 0), h_outflow( start = Medium.h_default, nominal = Medium.h_default), Xi_outflow(each nominal=0.01)) "Fluid connector a (positive design flow direction is from port_a to port_b)"; Modelica.Fluid.Interfaces.FluidPort_b port_b( redeclare final package Medium = Medium, m_flow(max=if allowFlowReversal then +Modelica.Constants.inf else 0), h_outflow( start = Medium.h_default, nominal = Medium.h_default), Xi_outflow(each nominal=0.01)) "Fluid connector b (positive design flow direction is from port_a to port_b)"; Buildings.DHC.ETS.Combined.Subsystems.StorageTankWithExternalHeatExchanger domHotWatTan( redeclare final package MediumDom = Medium, redeclare final package MediumHea = Medium, final dat=dat, final TTan_start=T_start) "Storage tank with fresh water station"; Buildings.DHC.Loads.HotWater.ThermostaticMixingValve theMixVal( redeclare final package Medium = Medium, mMix_flow_nominal=1.2*dat.mDom_flow_nominal) "Thermostatic mixing valve"; Buildings.Fluid.Sources.Boundary_pT souDCW( redeclare final package Medium = Medium, use_T_in=true, nPorts=1) "Source for domestic cold water"; Buildings.DHC.ETS.BaseClasses.Junction dcwSpl( redeclare final package Medium = Medium, portFlowDirection_1=Modelica.Fluid.Types.PortFlowDirection.Entering, portFlowDirection_2=Modelica.Fluid.Types.PortFlowDirection.Leaving, portFlowDirection_3=Modelica.Fluid.Types.PortFlowDirection.Leaving, final m_flow_nominal=m_flow_nominal*{1,-1,-1}) "Splitter for domestic cold water"; Buildings.Controls.OBC.CDL.Interfaces.RealInput THotWatSupSet( final unit="K", displayUnit="degC") "Domestic hot water temperature set point for supply to fixtures"; Buildings.Controls.OBC.CDL.Interfaces.RealInput TColWat( final unit="K", displayUnit="degC") "Cold water temperature"; Buildings.Controls.OBC.CDL.Interfaces.RealInput QReqHotWat_flow( final unit="W") "Service hot water load"; Buildings.Controls.OBC.CDL.Reals.MultiplyByParameter gai(k=1/QHotWat_flow_nominal) "Gain to normalize hot water signal"; Modelica.Blocks.Interfaces.RealOutput PEle(unit="W") "Electric power required for pumping equipment"; Buildings.Controls.OBC.CDL.Interfaces.BooleanOutput charge "Output true if tank needs to be charged, false if it is sufficiently charged"; Buildings.Controls.OBC.CDL.Interfaces.RealOutput TTanTop( final unit="K", displayUnit="degC") "Top temperature of tank"; Modelica.Blocks.Sources.RealExpression expTTanTop( y=domHotWatTan.TTanTop.T) "Top temperature of tank"; Buildings.DHC.Networks.BaseClasses.DifferenceEnthalpyFlowRate dHFlow( redeclare final package Medium1 = Medium, redeclare final package Medium2 = Medium, final m_flow_nominal=m_flow_nominal, allowFlowReversal=false) "Enthalpy flow rate"; Modelica.Blocks.Interfaces.RealOutput dHFlo(unit="W") "Enthalpy flow rate"; equation connect(port_a, domHotWatTan.port_aHea); connect(domHotWatTan.port_bHea, port_b); connect(souDCW.ports[1], dcwSpl.port_1); connect(dcwSpl.port_2, theMixVal.port_col); connect(souDCW.T_in, TColWat); connect(theMixVal.yMixSet, gai.y); connect(QReqHotWat_flow, gai.u); connect(THotWatSupSet, theMixVal.TMixSet); connect(THotWatSupSet, domHotWatTan.TDomSet); connect(domHotWatTan.PEle, PEle); connect(domHotWatTan.charge, charge); connect(expTTanTop.y, TTanTop); connect(domHotWatTan.port_bDom, dHFlow.port_a1); connect(dHFlow.port_b1, theMixVal.port_hot); connect(dcwSpl.port_3, dHFlow.port_a2); connect(dHFlow.port_b2, domHotWatTan.port_aDom); connect(dHFlow.dH_flow, dHFlo); end DHWConsumption;

model HeatExchanger "Base subsystem with district heat exchanger" extends Buildings.Fluid.Interfaces.PartialFourPortInterface( final m1_flow_nominal=abs(Q_flow_nominal/4200/(T_b1_nominal - T_a1_nominal)), final m2_flow_nominal=abs(Q_flow_nominal/4200/(T_b2_nominal - T_a2_nominal))); parameter DHC.ETS.Types.ConnectionConfiguration conCon "District connection configuration"; parameter Modelica.Units.SI.PressureDifference dp1Hex_nominal(displayUnit= "Pa") "Nominal pressure drop across heat exchanger on district side"; parameter Modelica.Units.SI.PressureDifference dp2Hex_nominal(displayUnit= "Pa") "Nominal pressure drop across heat exchanger on building side"; parameter Modelica.Units.SI.PressureDifference dpVal1_nominal(displayUnit= "Pa") = dp1Hex_nominal/2 "Nominal pressure drop of primary control valve"; parameter Modelica.Units.SI.PressureDifference dpVal2_nominal(displayUnit= "Pa") = dp2Hex_nominal/2 "Nominal pressure drop of secondary control valve"; parameter Modelica.Units.SI.HeatFlowRate Q_flow_nominal "Nominal heat flow rate (from district to building)"; parameter Modelica.Units.SI.Temperature T_a1_nominal "Nominal water inlet temperature on district side"; parameter Modelica.Units.SI.Temperature T_b1_nominal "Nominal water outlet temperature on district side"; parameter Modelica.Units.SI.Temperature T_a2_nominal "Nominal water inlet temperature on building side"; parameter Modelica.Units.SI.Temperature T_b2_nominal "Nominal water outlet temperature on building side"; parameter Real spePum1Min(unit="1")=0.1 "Heat exchanger primary pump minimum speed (fractional)"; parameter Real spePum2Min(unit="1")=0.1 "Heat exchanger secondary pump minimum speed (fractional)"; // IO CONNECTORS Buildings.Controls.OBC.CDL.Interfaces.BooleanInput on "Control signal for secondary side (from supervisory). Set to true to operate subsystem"; Buildings.Controls.OBC.CDL.Interfaces.RealOutput PPum( final unit="W") "Power drawn by pump motors"; // COMPONENTS Buildings.Fluid.HeatExchangers.PlateHeatExchangerEffectivenessNTU hex( redeclare final package Medium1 = Medium1, redeclare final package Medium2 = Medium2, show_T=true, final use_Q_flow_nominal=true, configuration=Buildings.Fluid.Types.HeatExchangerConfiguration.CounterFlow, final allowFlowReversal1=allowFlowReversal1, final allowFlowReversal2=allowFlowReversal2, final dp1_nominal=if have_val1 then 0 else dp1Hex_nominal, final dp2_nominal=0, final m1_flow_nominal=m1_flow_nominal, final m2_flow_nominal=m2_flow_nominal, final Q_flow_nominal=Q_flow_nominal, final T_a1_nominal=T_a1_nominal, final T_a2_nominal=T_a2_nominal) "Heat exchanger"; DHC.ETS.BaseClasses.Pump_m_flow pum1( redeclare final package Medium = Medium1, final m_flow_nominal=m1_flow_nominal, final dp_nominal=dp1Hex_nominal, final allowFlowReversal=allowFlowReversal1) if not have_val1 "District heat exchanger primary pump"; DHC.ETS.BaseClasses.Pump_m_flow pum2( redeclare final package Medium = Medium2, final m_flow_nominal=m2_flow_nominal, final dp_nominal=dp2Hex_nominal, final allowFlowReversal=allowFlowReversal2) "Secondary pump"; Buildings.Fluid.Sensors.TemperatureTwoPort senT2WatEnt( redeclare final package Medium = Medium2, final m_flow_nominal=m2_flow_nominal, final allowFlowReversal=allowFlowReversal2) "Heat exchanger secondary water entering temperature"; Buildings.Fluid.Sensors.TemperatureTwoPort senT2WatLvg( redeclare final package Medium = Medium2, final m_flow_nominal=m2_flow_nominal, final allowFlowReversal=allowFlowReversal2) "Heat exchanger secondary water leaving temperature"; Fluid.Actuators.Valves.TwoWayPressureIndependent val1( redeclare final package Medium = Medium1, final m_flow_nominal=m1_flow_nominal, from_dp=true, final dpValve_nominal=dpVal1_nominal, use_strokeTime=false, final dpFixed_nominal=dp1Hex_nominal) if have_val1 "Heat exchanger primary control valve"; Buildings.Controls.OBC.CDL.Reals.MultiSum totPPum( final nin= if have_val1 then 1 else 2) "Total pump power"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal mPum1_flow( realTrue=m1_flow_nominal) if not have_val1 "Set mass flow rate of pump 1"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal mPum2_flow2( realTrue=m2_flow_nominal) "Set mass flow rate of pump 2"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal yVal(realTrue=1) if have_val1 "Control signal for valves"; protected parameter Boolean have_val1= conCon == DHC.ETS.Types.ConnectionConfiguration.TwoWayValve "True in case of control valve on district side, false in case of a pump"; equation if have_val1 then connect(port_a1, hex.port_a1); else connect(hex.port_b1, port_b1); end if; connect(port_a1,pum1.port_a); connect(val1.port_b,port_b1); connect(pum2.port_b,senT2WatEnt.port_a); connect(senT2WatEnt.port_b,hex.port_a2); connect(pum1.P,totPPum.u[2]); connect(pum2.P,totPPum.u[1]); connect(totPPum.y,PPum); connect(hex.port_b2,senT2WatLvg.port_a); connect(hex.port_b1, val1.port_a); connect(pum1.port_b, hex.port_a1); connect(pum1.m_flow_in, mPum1_flow.y); connect(pum2.m_flow_in, mPum2_flow2.y); connect(yVal.y, val1.y); connect(port_a2, pum2.port_a); connect(senT2WatLvg.port_b, port_b2); connect(on, yVal.u); connect(on, mPum2_flow2.u); connect(mPum1_flow.u, on); end HeatExchanger;

model HeatPump "Base subsystem with water-to-water heat pump" extends Buildings.DHC.ETS.Combined.Subsystems.BaseClasses.PartialHeatPump ( heaPum(QCon_flow_nominal=Q1_flow_nominal)); parameter Boolean have_varFloCon = true "Set to true for a variable condenser flow"; parameter Modelica.Units.SI.HeatFlowRate Q1_flow_nominal(min=0) "Heating heat flow rate"; // IO CONNECTORS Buildings.Controls.OBC.CDL.Interfaces.RealInput TSupSet( final unit="K", displayUnit="degC") "Supply temperature set point"; Buildings.Controls.OBC.CDL.Interfaces.RealInput m1_flow( final unit="kg/s") if have_varFloCon "Condenser mass flow rate"; // COMPONENTS Buildings.Controls.OBC.CDL.Reals.Sources.Constant floConNom( final k=mCon_flow_nominal) if not have_varFloCon "Nominal flow rate"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal booToRea; Buildings.Controls.OBC.CDL.Reals.Multiply floCon "Zero flow rate if not enabled"; equation connect(booToRea.y, floCon.u1); connect(m1_flow, floCon.u2); connect(floConNom.y, floCon.u2); connect(port_a1, heaPum.port_a1); connect(pumCon.port_b, port_b1); connect(TSupSet, heaPum.TSet); connect(floCon.y, pumCon.m_flow_in); connect(conPI.trigger, floEva.u); connect(addPPum.y, PPum); connect(uEna, booToRea.u); connect(uEna, floEva.u); end HeatPump;

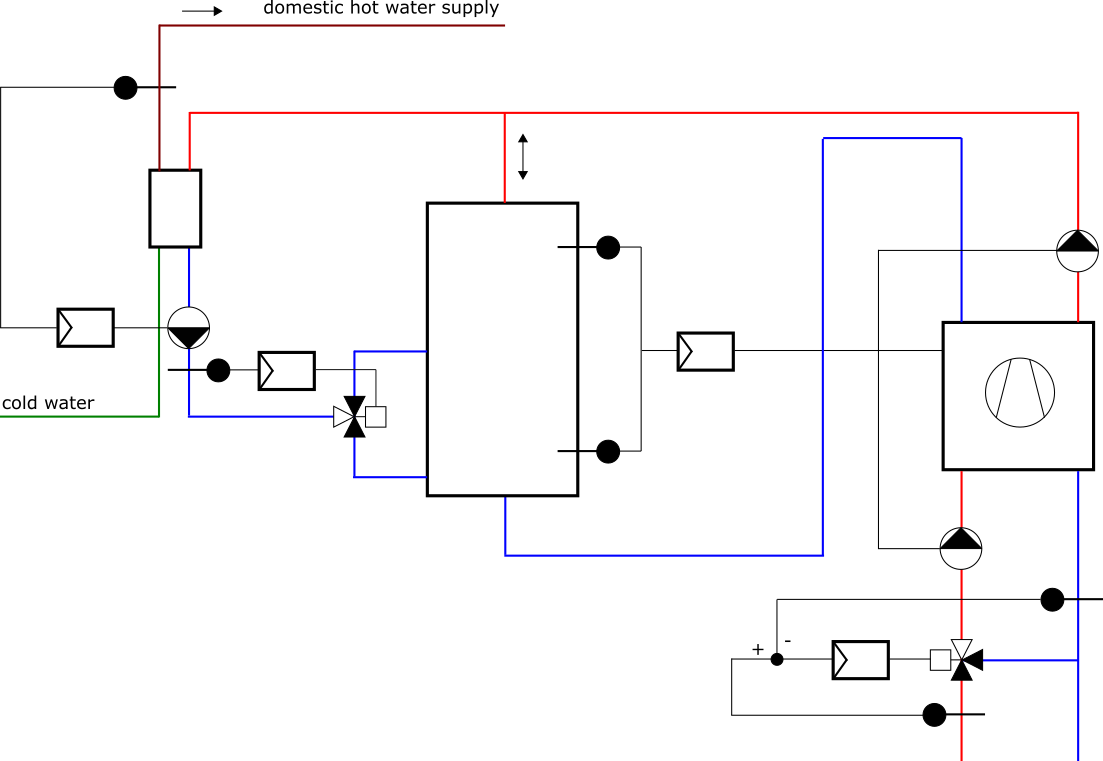

model HeatPumpDHWTank "Base subsystem with water-to-water heat pump with storage tank for domestic hot water" extends Buildings.DHC.ETS.Combined.Subsystems.BaseClasses.PartialHeatPump ( heaPum( QCon_flow_nominal=QHotWat_flow_nominal, QCon_flow_max=QHotWat_flow_nominal), pumCon(use_riseTime=true), pumEva(use_riseTime=true)); parameter Buildings.DHC.Loads.HotWater.Data.GenericDomesticHotWaterWithHeatExchanger datWatHea "Performance data"; parameter Modelica.Units.SI.HeatFlowRate QHotWat_flow_nominal(min=0) "Nominal capacity of heat pump condenser for hot water production system (>=0)"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal floCon(realTrue= mCon_flow_nominal) "Condenser mass flow rate"; Buildings.DHC.Loads.HotWater.StorageTankWithExternalHeatExchanger heaPumTan( redeclare package MediumDom = Medium1, redeclare package MediumHea = Medium2, final dat=datWatHea) "Heat pump with storage tank for domestic hot water"; Buildings.Controls.OBC.CDL.Reals.Sources.Constant THotSouSet( k=datWatHea.TDom_nominal) "Set point of water in hot water tank"; Buildings.Fluid.Sources.Boundary_pT preRef( redeclare package Medium = Medium2, p(displayUnit="bar"), nPorts=1) "Reference pressure for loop"; Buildings.Fluid.Sensors.TemperatureTwoPort senTemHeaPumRet( redeclare package Medium = Medium1, allowFlowReversal=false, m_flow_nominal=mCon_flow_nominal, tau=0) "Sensor for return temperature to heat pump"; Buildings.Controls.OBC.CDL.Reals.AddParameter addPar( p=dT_nominal) "dT for heater"; Modelica.Blocks.Math.Add addPPum1 "Electricity use for pumps"; Buildings.Controls.OBC.CDL.Logical.And and2 "Outputs true if boiler needs to be charged and plant is enabled"; equation connect(THotSouSet.y, heaPumTan.TDomSet); connect(heaPumTan.port_bHea, senTemHeaPumRet.port_a); connect(senTemHeaPumRet.T, addPar.u); connect(floCon.y, pumCon.m_flow_in); connect(heaPumTan.port_aHea, pumCon.port_b); connect(senTemHeaPumRet.port_b, heaPum.port_a1); connect(addPPum.y, addPPum1.u1); connect(heaPumTan.PEle, addPPum1.u2); connect(addPPum1.y, PPum); connect(addPar.y, heaPum.TSet); connect(heaPumTan.port_bDom, port_b1); connect(port_a1, heaPumTan.port_aDom); connect(uEna, and2.u1); connect(heaPumTan.charge, and2.u2); connect(and2.y, floEva.u); connect(and2.y, floCon.u); connect(and2.y, conPI.trigger); connect(preRef.ports[1], heaPum.port_b1); end HeatPumpDHWTank;

model HeatPumpModular "Base subsystem with modular heat recovery heat pump" replaceable package Medium=Modelica.Media.Interfaces.PartialMedium "Medium model"; parameter Boolean allowFlowReversal=false "= true to allow flow reversal, false restricts to design direction (port_a -> port_b)"; parameter Buildings.DHC.ETS.Combined.Data.GenericHeatPump dat "Heat pump performance data"; parameter Modelica.Units.SI.PressureDifference dpCon_nominal(displayUnit="Pa") "Nominal pressure drop accross condenser"; parameter Modelica.Units.SI.PressureDifference dpEva_nominal(displayUnit="Pa") "Nominal pressure drop accross evaporator"; parameter Modelica.Units.SI.Pressure dpValCon_nominal=dpCon_nominal/2 "Nominal pressure drop accross control valve on condenser side"; parameter Modelica.Units.SI.Pressure dpValEva_nominal=dpEva_nominal/2 "Nominal pressure drop accross control valve on evaporator side"; parameter Real THeaWatSupSetMin( final quantity="ThermodynamicTemperature", final unit="K", displayUnit="degC") "Minimum value of heating water supply temperature set point"; parameter Real TChiWatSupSetMax( final quantity="ThermodynamicTemperature", final unit="K", displayUnit="degC") "Maximum value of chilled water supply temperature set point"; parameter Modelica.Units.SI.TemperatureDifference dTOffSetHea( min=0.5, displayUnit="K") "Temperature to be added to the set point in order to be slightly above what the heating load requires"; parameter Modelica.Units.SI.TemperatureDifference dTOffSetCoo( max=-0.5, displayUnit="K") "Temperature to be added to the set point in order to be slightly below what the cooling load requires"; // IO CONNECTORS Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uHeaSpa "True if space heating is required from tank"; Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uHeaDhw "True if domestic hot water heating is required from tank"; Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uCoo "True if cooling is required from tank"; Buildings.Controls.OBC.CDL.Interfaces.RealInput TChiWatSupSet( final unit="K", displayUnit="degC") "Chilled water supply temperature set point (may be reset down)"; Modelica.Fluid.Interfaces.FluidPort_a port_aChiWat( redeclare final package Medium=Medium, m_flow( min= if allowFlowReversal then -Modelica.Constants.inf else 0), h_outflow( start=Medium.h_default, nominal=Medium.h_default)) "Fluid port for chilled water return"; Modelica.Fluid.Interfaces.FluidPort_b port_bChiWat( redeclare final package Medium=Medium, m_flow( max= if allowFlowReversal then +Modelica.Constants.inf else 0), h_outflow( start=Medium.h_default, nominal=Medium.h_default)) "Fluid port for chilled water supply"; Modelica.Fluid.Interfaces.FluidPort_a port_aHeaWat( redeclare final package Medium=Medium, m_flow( min= if allowFlowReversal then -Modelica.Constants.inf else 0), h_outflow( start=Medium.h_default, nominal=Medium.h_default)) "Fluid port for heating water return"; Modelica.Fluid.Interfaces.FluidPort_b port_bHeaWat( redeclare final package Medium=Medium, m_flow( max= if allowFlowReversal then +Modelica.Constants.inf else 0), h_outflow( start=Medium.h_default, nominal=Medium.h_default)) "Fluid port for heating water supply"; Buildings.Controls.OBC.CDL.Interfaces.RealOutput PChi( final unit="W") "Chiller power"; Buildings.Controls.OBC.CDL.Interfaces.RealOutput PPum( final unit="W") "Pump power"; // COMPONENTS Buildings.Fluid.HeatPumps.ModularReversible.Modular heaPum( redeclare package MediumCon = Medium, redeclare package MediumEva = Medium, redeclare model RefrigerantCycleHeatPumpCooling = Buildings.Fluid.Chillers.ModularReversible.RefrigerantCycle.BaseClasses.NoCooling, redeclare model RefrigerantCycleHeatPumpHeating = Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.TableData2D ( redeclare final Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.Frosting.NoFrosting iceFacCal, mCon_flow_nominal=dat.mCon_flow_nominal, mEva_flow_nominal=dat.mEva_flow_nominal, final smoothness=Modelica.Blocks.Types.Smoothness.LinearSegments, final extrapolation=Modelica.Blocks.Types.Extrapolation.LastTwoPoints, final datTab=dat.datHeaSca), redeclare model RefrigerantCycleInertia = Buildings.Fluid.HeatPumps.ModularReversible.RefrigerantCycle.Inertias.NoInertia, final use_rev=false, final allowDifferentDeviceIdentifiers=true, final allowFlowReversalEva=allowFlowReversal, final allowFlowReversalCon=allowFlowReversal, final dTCon_nominal=dat.dTCon_nominal, final dTEva_nominal=dat.dTEva_nominal, final QHea_flow_nominal=dat.QHeaDes_flow_nominal, final TConHea_nominal=dat.THeaConLvg_nominal, final TEvaHea_nominal=dat.THeaEvaLvg_nominal, final TConCoo_nominal=dat.TCooConLvg_nominal, final TEvaCoo_nominal=dat.TCooEvaLvg_nominal, mCon_flow_nominal=dat.mCon_flow_nominal, mEva_flow_nominal=dat.mEva_flow_nominal, final dpCon_nominal(displayUnit="Pa") = dpCon_nominal, final dpEva_nominal(displayUnit="Pa") = dpEva_nominal, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, GEvaIns=0, GEvaOut=0, CEva=0, use_evaCap=false, GConIns=0, GConOut=0, CCon=0, use_conCap=false, show_T=true, use_intSafCtr=false, limWarSca=0.98) "Heat recovery heat pump"; Buildings.DHC.ETS.BaseClasses.Pump_m_flow pumCon( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, use_riseTime=true, final m_flow_nominal=dat.mCon_flow_nominal, final dp_nominal=dpCon_nominal + dpValCon_nominal + 2*0.05*dpValCon_nominal, dpMax=5*(dpCon_nominal + dpValCon_nominal + 2*0.05*dpValCon_nominal)) "Condenser pump"; Buildings.DHC.ETS.BaseClasses.Pump_m_flow pumEva( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, use_riseTime=true, final m_flow_nominal=dat.mEva_flow_nominal, final dp_nominal=dpEva_nominal + dpValEva_nominal + dpEva_nominal*0.05, dpMax=5*(dpEva_nominal + dpValEva_nominal + dpEva_nominal*0.05)) "Evaporator pump"; Buildings.DHC.ETS.Combined.Controls.HeatPumpModular con( final PLRMin=dat.PLRMin, THeaWatSupSetMin=THeaWatSupSetMin, TChiWatSupSetMax=TChiWatSupSetMax, final dTOffSetHea=dTOffSetHea, final dTOffSetCoo=dTOffSetCoo) "Controller"; Buildings.Fluid.Sensors.TemperatureTwoPort senTConLvg( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final m_flow_nominal=dat.mCon_flow_nominal) "Condenser water leaving temperature"; Buildings.Fluid.Sensors.TemperatureTwoPort senTConEnt( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final m_flow_nominal=dat.mCon_flow_nominal) "Condenser water entering temperature"; Buildings.Fluid.Sensors.TemperatureTwoPort senTEvaEnt( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final m_flow_nominal=dat.mEva_flow_nominal) "Evaporator water entering temperature"; Buildings.Fluid.Sensors.TemperatureTwoPort senTEvaLvg( redeclare final package Medium=Medium, final allowFlowReversal=allowFlowReversal, final m_flow_nominal=dat.mEva_flow_nominal) "Evaporator water leaving temperature"; Buildings.DHC.ETS.BaseClasses.Junction splEva( redeclare final package Medium=Medium, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, final portFlowDirection_1=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, final portFlowDirection_2=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, final portFlowDirection_3=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, m_flow_nominal=dat.mEva_flow_nominal*{1,-1,-1}) "Flow splitter for the evaporator water circuit"; Buildings.DHC.ETS.BaseClasses.Junction splConMix( redeclare final package Medium=Medium, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, final portFlowDirection_1=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, final portFlowDirection_2=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, final portFlowDirection_3=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, m_flow_nominal=dat.mCon_flow_nominal*{1,-1,-1}) "Flow splitter"; Buildings.Fluid.Actuators.Valves.ThreeWayEqualPercentageLinear valEva( redeclare final package Medium = Medium, final portFlowDirection_1=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, final portFlowDirection_2=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, final portFlowDirection_3=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, from_dp=false, use_strokeTime=false, final m_flow_nominal=dat.mEva_flow_nominal, final dpValve_nominal=dpValEva_nominal, linearized={true,true}) "Control valve for maximum evaporator water entering temperature"; Buildings.Fluid.Actuators.Valves.ThreeWayEqualPercentageLinear valCon( redeclare final package Medium = Medium, final portFlowDirection_1=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, final portFlowDirection_2=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Leaving, final portFlowDirection_3=if allowFlowReversal then Modelica.Fluid.Types.PortFlowDirection.Bidirectional else Modelica.Fluid.Types.PortFlowDirection.Entering, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, from_dp=false, use_strokeTime=false, final m_flow_nominal=dat.mCon_flow_nominal, final dpValve_nominal=dpValCon_nominal, linearized={true,true}) "Control valve for minimum condenser water entering temperature"; Buildings.Controls.OBC.CDL.Conversions.BooleanToReal booToRea "Constant speed primary pumps control signal"; Buildings.Controls.OBC.CDL.Reals.Add add2; Buildings.Controls.OBC.CDL.Reals.MultiplyByParameter gai1(final k=dat.mCon_flow_nominal) "Scale to nominal mass flow rate"; Buildings.Controls.OBC.CDL.Reals.MultiplyByParameter gai2(final k=dat.mEva_flow_nominal) "Scale to nominal mass flow rate"; Buildings.Controls.OBC.CDL.Interfaces.RealInput THeaWatSupSet(final unit="K", displayUnit="degC") "Heating water supply temperature set point"; Fluid.Sensors.TemperatureTwoPort senTHeaWatRet( redeclare package Medium = Medium, allowFlowReversal=true, final m_flow_nominal=dat.mCon_flow_nominal) "Return heating water temperature to heat pump"; Fluid.Sensors.TemperatureTwoPort senTChiWatRet( redeclare package Medium = Medium, allowFlowReversal=true, final m_flow_nominal=dat.mCon_flow_nominal) "Return chilled water temperature to chiller, prior to chiller valve"; protected final parameter Medium.ThermodynamicState sta_default=Medium.setState_pTX( T=Medium.T_default, p=Medium.p_default, X=Medium.X_default[1:Medium.nXi]) "Medium state at default properties"; final parameter Modelica.Units.SI.SpecificHeatCapacity cp_default= Medium.specificHeatCapacityCp(sta_default) "Specific heat capacity of the fluid"; initial equation assert(dat.QCooAct_flow_nominal <= dat.QCooDes_flow_nominal, "In " + getInstanceName() + ": The heat pump is sized for heating. However, at the cooling design conditions, this results in a cooling capacity of QCooAct_flow_nominal = " + String(dat.QCooAct_flow_nominal) + " W, but the desired cooling capacity is QCooDes_flow_nominal = " + String(dat.QCooDes_flow_nominal) + " W. You need to size the heat pump for a bigger heating load.", level=AssertionLevel.warning); equation connect(splConMix.port_3,valCon.port_3); connect(valCon.port_2,pumCon.port_a); connect(pumEva.port_b,splEva.port_1); connect(splEva.port_3,valEva.port_3); connect(con.yValEva,valEva.y); connect(con.yValCon,valCon.y); connect(uHeaSpa, con.uHeaSpa); connect(uCoo,con.uCoo); connect(splConMix.port_2,port_bHeaWat); connect(splEva.port_2,port_bChiWat); connect(valEva.port_2,senTEvaEnt.port_a); connect(senTEvaLvg.port_b,pumEva.port_a); connect(senTEvaLvg.port_a, heaPum.port_b2); connect(senTEvaEnt.port_b, heaPum.port_a2); connect(heaPum.port_b1, senTConLvg.port_a); connect(senTConLvg.port_b,splConMix.port_1); connect(pumCon.port_b,senTConEnt.port_a); connect(senTConEnt.port_b, heaPum.port_a1); connect(heaPum.P, PChi); connect(add2.y,PPum); connect(pumEva.P,add2.u2); connect(pumCon.P,add2.u1); connect(con.yPum,booToRea.u); connect(booToRea.y,gai2.u); connect(gai2.y,pumEva.m_flow_in); connect(gai1.y,pumCon.m_flow_in); connect(booToRea.y,gai1.u); connect(con.TChiWatSupSet, TChiWatSupSet); connect(con.TEvaWatLvg, senTEvaLvg.T); connect(con.yCom, heaPum.ySet); connect(con.THeaWatSupSet, THeaWatSupSet); connect(senTConLvg.T, con.TConWatLvg); connect(con.uHeaDhw, uHeaDhw); connect(senTHeaWatRet.port_a, port_aHeaWat); connect(senTHeaWatRet.port_b, valCon.port_1); connect(port_aChiWat, senTChiWatRet.port_a); connect(senTChiWatRet.port_b, valEva.port_1); end HeatPumpModular;

model StorageTankWithExternalHeatExchanger "A model of a storage tank with external heat exchanger to produce hot water" extends Buildings.DHC.Loads.HotWater.BaseClasses.PartialFourPortDHW; parameter Buildings.DHC.Loads.HotWater.Data.GenericDomesticHotWaterWithHeatExchanger dat "Performance data"; parameter Real k=0.1 "Proportional gain of circulation pump controller"; parameter Real Ti=60 "Integrator time constant of circulation pump controller"; parameter Modelica.Media.Interfaces.Types.Temperature TTan_start=323.15 "Start value of tank temperature"; final parameter Real eps = dat.QHex_flow_nominal / CMin_flow_nominal / ( dat.TDom_nominal + dat.dTHexApp_nominal - dat.TCol_nominal) "Heat exchanger effectiveness"; Buildings.Fluid.Movers.Preconfigured.FlowControlled_dp pumHex( redeclare package Medium = MediumHea, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, riseTime=10, m_flow_nominal=dat.mHex_flow_nominal, dp_nominal=dat.dpHexHea_nominal) "Pump with head as input"; Buildings.Fluid.Storage.Stratified tan( redeclare package Medium = MediumHea, kIns=dat.kIns, final T_start=TTan_start, hTan=dat.hTan, dIns=dat.dIns, VTan=dat.VTan, nSeg=dat.nSeg, m_flow_nominal=dat.mHex_flow_nominal) "Heating water tank"; Modelica.Blocks.Interfaces.RealOutput PEle(unit="W") "Electric power required for pumping equipment"; Buildings.Fluid.Sensors.TemperatureTwoPort senTemHot( redeclare package Medium = MediumDom, final allowFlowReversal=allowFlowReversalDom, m_flow_nominal=dat.mDom_flow_nominal) "Temperature sensor for hot water supply"; Buildings.Fluid.HeatExchangers.ConstantEffectiveness hex( redeclare package Medium1 = MediumDom, redeclare package Medium2 = MediumHea, final allowFlowReversal1=allowFlowReversalDom, m1_flow_nominal=dat.mDom_flow_nominal, m2_flow_nominal=dat.mHex_flow_nominal, dp1_nominal=dat.dpHexHea_nominal, from_dp2=true, dp2_nominal=dat.dpHexDom_nominal, eps=eps); Buildings.Fluid.FixedResistances.Junction junTop( redeclare package Medium = MediumHea, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, m_flow_nominal=dat.mHex_flow_nominal*{1,1,1}, dp_nominal=zeros(3)) "Flow junction at top of tank"; Buildings.Fluid.Sensors.MassFlowRate senMasFlo(redeclare package Medium = MediumDom) "Mass flow rate of domestic hot water"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor TTanTop( T(displayUnit="degC")) "Fluid temperature at the top of the tank"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor TTanBot( T(displayUnit="degC")) "Fluid temperature at the bottom of the tank"; Buildings.DHC.Loads.HotWater.BaseClasses.HeatExchangerPumpController conPum(final mDom_flow_nominal=dat.mDom_flow_nominal, final dpPum_nominal=dat.dpHexHea_nominal) "Controller for pump of heat exchanger"; Buildings.DHC.Loads.HotWater.BaseClasses.TankChargingController conCha "Controller for tank charge signal"; Buildings.Fluid.Actuators.Valves.ThreeWayLinear divVal( redeclare package Medium = MediumHea, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, m_flow_nominal=dat.mHex_flow_nominal, dpValve_nominal=1000) "Diversion valve to reduce mixing in tank"; Buildings.Fluid.Sensors.TemperatureTwoPort senTemRet( redeclare package Medium = MediumHea, m_flow_nominal=dat.mHex_flow_nominal) "Temperature sensor for return heating water from heat exchanger"; Buildings.DHC.Loads.HotWater.BaseClasses.TankValveController conVal "Diversion valve controller"; Buildings.Controls.OBC.CDL.Reals.AddParameter dTHexApp(p=dat.dTHexApp_nominal) "Offset for heat exchanger approach temperature"; Buildings.Controls.OBC.CDL.Interfaces.BooleanOutput charge "Output true if tank needs to be charged, false if it is sufficiently charged"; Buildings.Fluid.Sensors.TemperatureTwoPort senTemHeaSup( redeclare package Medium = MediumHea, final allowFlowReversal=allowFlowReversalHea, final m_flow_nominal=dat.mHex_flow_nominal) "Temperature sensor for supply water temperature from heating system"; protected parameter Modelica.Units.SI.SpecificHeatCapacity cpHea_default = MediumHea.specificHeatCapacityCp(MediumHea.setState_pTX( MediumHea.p_default, MediumHea.T_default, MediumHea.X_default)) "Specific heat capacity of heating medium at default medium state"; parameter Modelica.Units.SI.SpecificHeatCapacity cpDom_default = MediumDom.specificHeatCapacityCp(MediumDom.setState_pTX( MediumDom.p_default, MediumDom.T_default, MediumDom.X_default)) "Specific heat capacity of domestic hot water medium at default medium state"; parameter Modelica.Units.SI.ThermalConductance CMin_flow_nominal = min(dat.mHex_flow_nominal*cpHea_default, dat.mDom_flow_nominal*cpDom_default) "Minimum heat capacity flow rate"; initial equation assert(eps < 1, "In " + getInstanceName() + ": Heat exchanger effectivness must be below 1, received eps = " + String(eps) + ". Check sizing."); equation connect(tan.port_a, junTop.port_3); connect(pumHex.P, PEle); connect(hex.port_b1, senMasFlo.port_a); connect(senMasFlo.port_b, senTemHot.port_a); connect(TTanTop.port, tan.heaPorVol[1]); connect(senMasFlo.m_flow, conPum.mDom_flow); connect(senTemHot.T, conPum.TDom); connect(conPum.TDomSet, TDomSet); connect(conCha.TTanTop, TTanTop.T); connect(conCha.charge, charge); connect(senTemHot.port_b, port_bDom); connect(conPum.dpPumHex, pumHex.dp_in); connect(port_aDom, hex.port_a1); connect(junTop.port_1, hex.port_a2); connect(hex.port_b2, pumHex.port_a); connect(senTemRet.port_b, divVal.port_2); connect(divVal.port_1, tan.fluPorVol[integer(dat.nSeg/2)]); connect(senTemRet.T, conVal.TRet); connect(conVal.y, divVal.y); connect(TTanBot.port, tan.heaPorVol[dat.nSeg]); connect(conCha.TTanTopSet, dTHexApp.y); connect(dTHexApp.u, TDomSet); connect(divVal.port_3, tan.fluPorVol[dat.nSeg]); connect(tan.port_b, port_bHea); connect(pumHex.port_b, senTemRet.port_a); connect(TTanBot.T, conCha.TTanBot); connect(junTop.port_2, senTemHeaSup.port_b); connect(senTemHeaSup.port_a, port_aHea); end StorageTankWithExternalHeatExchanger;

model StratifiedTankWithCommand "Stratified buffer tank model" replaceable package Medium=Modelica.Media.Interfaces.PartialMedium "Medium model"; final parameter Boolean allowFlowReversal=true "= true to allow flow reversal, false restricts to design direction (port_a -> port_b)"; parameter Modelica.Units.SI.Volume VTan "Tank volume"; parameter Modelica.Units.SI.Length hTan "Height of tank (without insulation)"; parameter Modelica.Units.SI.Length dIns "Thickness of insulation"; parameter Modelica.Units.SI.ThermalConductivity kIns=0.04 "Specific heat conductivity of insulation"; parameter Integer nSeg( min=2)=3 "Number of volume segments"; parameter Modelica.Units.SI.MassFlowRate m_flow_nominal "Nominal mass flow rate"; parameter Medium.Temperature T_start=Medium.T_default "Temperature start value"; parameter Boolean isHotWat "True if the tank supplies hot water, false for chilled water"; parameter Modelica.Units.SI.TemperatureDifference dTOffSet=if tanCha.isHotWat then +1 else -1 "Offset for set point to have a slightly higher (or lower) temperature than the required supply from the load"; // IO CONNECTORS Modelica.Fluid.Interfaces.FluidPort_a port_genTop( redeclare final package Medium = Medium, m_flow(min=if allowFlowReversal then -Modelica.Constants.inf else 0), h_outflow(start=Medium.h_default, nominal=Medium.h_default)) "Tank top port on generation side"; Modelica.Fluid.Interfaces.FluidPort_b port_genBot( redeclare final package Medium = Medium, m_flow(max=if allowFlowReversal then +Modelica.Constants.inf else 0), h_outflow(start=Medium.h_default, nominal=Medium.h_default)) "Tank bottom port on generation side"; Modelica.Fluid.Interfaces.FluidPort_a port_loaBot( redeclare final package Medium = Medium, m_flow(min=if allowFlowReversal then -Modelica.Constants.inf else 0), h_outflow(start=Medium.h_default, nominal=Medium.h_default)) "Tank bottom port on load side"; Modelica.Fluid.Interfaces.FluidPort_b port_loaTop( redeclare final package Medium = Medium, m_flow(max=if allowFlowReversal then +Modelica.Constants.inf else 0), h_outflow(start=Medium.h_default, nominal=Medium.h_default)) "Tank top port on load side"; Modelica.Blocks.Interfaces.RealOutput Ql_flow( final unit="W") "Heat loss of tank (positive if heat flows from tank to ambient)"; Modelica.Blocks.Interfaces.RealOutput TTop( final unit="K", displayUnit="degC") "Fluid temperature at tank top"; Modelica.Blocks.Interfaces.RealOutput TBot( final unit="K", displayUnit="degC") "Fluid temperature at tank bottom"; Modelica.Thermal.HeatTransfer.Interfaces.HeatPort_a heaPorAmb "Heat port at interface with ambient (outside insulation)"; // COMPONENTS Buildings.Fluid.Storage.Stratified tan( redeclare final package Medium = Medium, final m_flow_nominal=m_flow_nominal, final VTan=VTan, final hTan=hTan, final dIns=dIns, final kIns=kIns, final nSeg=nSeg, final T_start=T_start) "Stratified tank"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor senTBot "Tank bottom temperature"; Modelica.Thermal.HeatTransfer.Sensors.TemperatureSensor senTTop "Tank top temperature"; Buildings.DHC.ETS.Combined.Controls.TankChargingController tanCha(final dTOffSet=dTOffSet, final isHotWat=isHotWat) "Tank charging command"; Modelica.Blocks.Interfaces.RealInput TTanSet( final unit="K", displayUnit="degC") "Tank temperature set point, top for hot tank and bottom for cold tank"; Buildings.Controls.OBC.CDL.Interfaces.BooleanOutput charge "Outputs true if tank should be charged"; Buildings.Fluid.FixedResistances.Junction junTop( redeclare package Medium = Medium, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, T_start=T_start, m_flow_nominal=m_flow_nominal*{1,-1,-1}, dp_nominal=zeros(3)) "Fluid junction at top of tank"; Buildings.Fluid.FixedResistances.Junction junBot( redeclare package Medium = Medium, energyDynamics=Modelica.Fluid.Types.Dynamics.FixedInitial, T_start=T_start, m_flow_nominal=m_flow_nominal*{1,-1,1}, dp_nominal=zeros(3)) "Fluid junction at bottom of tank"; protected Modelica.Thermal.HeatTransfer.Components.ThermalCollector theCol( m=3) "Connector to assign multiple heat ports to one heat port"; equation connect(tan.Ql_flow,Ql_flow); connect(tan.heaPorVol[nSeg],senTBot.port); connect(tan.heaPorVol[1],senTTop.port); connect(senTTop.T,TTop); connect(senTBot.T,TBot); connect(heaPorAmb,theCol.port_b); connect(theCol.port_a[1],tan.heaPorTop); connect(theCol.port_a[2],tan.heaPorSid); connect(theCol.port_a[3],tan.heaPorBot); connect(senTTop.T, tanCha.TTanTop); connect(senTBot.T, tanCha.TTanBot); connect(tanCha.charge, charge); connect(junTop.port_3, tan.port_a); connect(tan.port_b, junBot.port_3); connect(port_loaBot, junBot.port_1); connect(junBot.port_2, port_genBot); connect(port_loaTop, junTop.port_2); connect(junTop.port_1, port_genTop); connect(TTanSet, tanCha.TTanSet); end StratifiedTankWithCommand;

model SwitchBox "Model for mass flow rate redirection with three-port two-position directional valves" replaceable package Medium = Modelica.Media.Interfaces.PartialMedium "Medium model"; parameter Modelica.Units.SI.MassFlowRate m_flow_nominal "Nominal mass flow rate"; parameter Modelica.Units.SI.PressureDifference dpValve_nominal( min=0, displayUnit="Pa") = 5000 "Valve pressure drop at nominal conditions"; parameter Real trueHoldDuration( final unit="s") = 60 "true hold duration"; parameter Real falseHoldDuration( final unit="s") = trueHoldDuration "false hold duration"; parameter Modelica.Fluid.Types.Dynamics energyDynamics= Modelica.Fluid.Types.Dynamics.FixedInitial "Type of energy balance (except for the pump always modeled in steady state)"; // IO CONECTORS Modelica.Fluid.Interfaces.FluidPort_b port_bSup( redeclare package Medium = Medium) "Supply line outlet port"; Modelica.Fluid.Interfaces.FluidPort_b port_bRet( redeclare final package Medium = Medium) "Return line outlet port"; Modelica.Fluid.Interfaces.FluidPort_a port_aSup( redeclare final package Medium = Medium) "Supply line inlet port"; Modelica.Fluid.Interfaces.FluidPort_a port_aRet( redeclare final package Medium = Medium) "Return line inlet port"; Buildings.Controls.OBC.CDL.Interfaces.RealInput mRev_flow(final unit="kg/s") "Service water mass flow rate in reverse direction"; Buildings.Controls.OBC.CDL.Interfaces.RealInput mPos_flow(final unit="kg/s") "Service water mass flow rate in positive direction"; // COMPONENTS Buildings.DHC.ETS.BaseClasses.Junction splSup( redeclare final package Medium = Medium, m_flow_nominal={1,1,1}*m_flow_nominal) "Flow splitter"; Buildings.DHC.ETS.BaseClasses.Junction splRet( redeclare final package Medium = Medium, m_flow_nominal={1,1,1}*m_flow_nominal) "Flow splitter"; Buildings.DHC.ETS.Combined.Controls.SwitchBox con( final m_flow_nominal=m_flow_nominal, final trueHoldDuration=trueHoldDuration, final falseHoldDuration=falseHoldDuration) "Switch box controller"; Fluid.Actuators.Valves.ThreeWayEqualPercentageLinear valSup( redeclare package Medium = Medium, dpValve_nominal=dpValve_nominal, use_strokeTime=false, m_flow_nominal=m_flow_nominal, linearized={true,true}, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState) "Directional valve"; Fluid.Actuators.Valves.ThreeWayEqualPercentageLinear valRet( redeclare package Medium = Medium, dpValve_nominal=dpValve_nominal, use_strokeTime=false, m_flow_nominal=m_flow_nominal, linearized={true,true}, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState) "Directional valve"; equation connect(port_bSup, splSup.port_2); connect(mRev_flow, con.mRev_flow); connect(splRet.port_1, port_aRet); connect(valSup.port_1, splSup.port_1); connect(valSup.port_3, splRet.port_3); connect(splRet.port_2, valRet.port_1); connect(splSup.port_3, valRet.port_3); connect(valRet.port_2, port_bRet); connect(valSup.port_2, port_aSup); connect(con.y, valRet.y); connect(mPos_flow, con.mPos_flow); connect(con.y, valSup.y); end SwitchBox;

model WatersideEconomizer "Base subsystem with waterside economizer" extends Buildings.Fluid.Interfaces.PartialFourPortInterface( final m1_flow_nominal=abs(Q_flow_nominal/4200/(T_b1_nominal - T_a1_nominal)), final m2_flow_nominal=abs(Q_flow_nominal/4200/(T_b2_nominal - T_a2_nominal))); parameter DHC.ETS.Types.ConnectionConfiguration conCon "District connection configuration"; parameter Modelica.Units.SI.PressureDifference dp1Hex_nominal(displayUnit= "Pa") "Nominal pressure drop across heat exchanger on district side"; parameter Modelica.Units.SI.PressureDifference dp2Hex_nominal(displayUnit= "Pa") "Nominal pressure drop across heat exchanger on building side"; parameter Modelica.Units.SI.PressureDifference dpVal1_nominal(displayUnit= "Pa") = if have_val1 then dp1Hex_nominal/2 else 0 "Nominal pressure drop of primary control valve"; parameter Modelica.Units.SI.PressureDifference dpVal2_nominal(displayUnit= "Pa") = dp2Hex_nominal/10 "Nominal pressure drop of heat exchanger bypass valve"; parameter Modelica.Units.SI.HeatFlowRate Q_flow_nominal "Nominal heat flow rate (from district to building)"; parameter Modelica.Units.SI.Temperature T_a1_nominal "Nominal water inlet temperature on district side"; parameter Modelica.Units.SI.Temperature T_b1_nominal "Nominal water outlet temperature on district side"; parameter Modelica.Units.SI.Temperature T_a2_nominal "Nominal water inlet temperature on building side"; parameter Modelica.Units.SI.Temperature T_b2_nominal "Nominal water outlet temperature on building side"; parameter Real y1Min(final unit="1")=0.05 "Minimum pump flow rate or valve opening for temperature measurement (fractional)"; parameter Modelica.Units.SI.TemperatureDifference dTEna=1 "Minimum delta-T above predicted heat exchanger leaving water temperature to enable WSE"; parameter Modelica.Units.SI.TemperatureDifference dTDis=0.5 "Minimum delta-T across heat exchanger before disabling WSE"; parameter Real k( min=0)=1 "Gain of controller"; parameter Modelica.Units.SI.Time Ti(min=Buildings.Controls.OBC.CDL.Constants.small)= 60 "Time constant of integrator block"; // IO CONNECTORS Buildings.Controls.OBC.CDL.Interfaces.RealOutput PPum( final unit="W") if not have_val1 "Power drawn by pump motors"; // COMPONENTS Buildings.DHC.ETS.Combined.Controls.WatersideEconomizer conWSE( final m2_flow_nominal=m2_flow_nominal, final y1Min=y1Min, final T_a1_nominal=T_a1_nominal, final T_b2_nominal=T_b2_nominal, final dTEna=dTEna, final dTDis=dTDis) "District heat exchanger loop controller"; Buildings.Fluid.HeatExchangers.PlateHeatExchangerEffectivenessNTU hex( redeclare final package Medium1 = Medium1, redeclare final package Medium2 = Medium2, final use_Q_flow_nominal=true, configuration=Buildings.Fluid.Types.HeatExchangerConfiguration.CounterFlow, final allowFlowReversal1=allowFlowReversal1, final allowFlowReversal2=allowFlowReversal2, final dp1_nominal=if have_val1 then 0 else dp1Hex_nominal, final dp2_nominal=0, final m1_flow_nominal=m1_flow_nominal, final m2_flow_nominal=m2_flow_nominal, final Q_flow_nominal=Q_flow_nominal, final T_a1_nominal=T_a1_nominal, final T_a2_nominal=T_a2_nominal) "Heat exchanger"; DHC.ETS.BaseClasses.Pump_m_flow pum1( redeclare final package Medium = Medium1, final m_flow_nominal=m1_flow_nominal, final dp_nominal=dp1Hex_nominal, final allowFlowReversal=allowFlowReversal1) if not have_val1 "District heat exchanger primary pump"; Buildings.Fluid.Sensors.TemperatureTwoPort senT2WatEnt( redeclare final package Medium = Medium2, final m_flow_nominal=m2_flow_nominal, final allowFlowReversal=allowFlowReversal2) "Heat exchanger secondary water entering temperature"; Buildings.Fluid.Sensors.TemperatureTwoPort senT2WatLvg( redeclare final package Medium = Medium2, final m_flow_nominal=m2_flow_nominal, final allowFlowReversal=allowFlowReversal2) "Heat exchanger secondary water leaving temperature"; Buildings.Fluid.Actuators.Valves.TwoWayPressureIndependent val1( redeclare final package Medium = Medium1, final m_flow_nominal=m1_flow_nominal, from_dp=true, final dpValve_nominal=dpVal1_nominal, final dpFixed_nominal=dp1Hex_nominal, use_strokeTime=false) if have_val1 "Heat exchanger primary control valve"; Buildings.Controls.OBC.CDL.Reals.MultiplyByParameter gai1(final k= m1_flow_nominal) if not have_val1 "Scale to nominal mass flow rate"; Buildings.Fluid.Actuators.Valves.ThreeWayLinear val2( redeclare final package Medium = Medium2, energyDynamics=Modelica.Fluid.Types.Dynamics.SteadyState, use_strokeTime=false, final m_flow_nominal=m2_flow_nominal, final dpValve_nominal=dpVal2_nominal, final dpFixed_nominal={dp2Hex_nominal,0}, fraK=1) "Heat exchanger secondary actuation valve (open or close)"; Buildings.Fluid.Sensors.TemperatureTwoPort senT1WatEnt( redeclare final package Medium = Medium1, final m_flow_nominal=m1_flow_nominal, final allowFlowReversal=allowFlowReversal1) "Heat exchanger primary water entering temperature"; Buildings.Controls.OBC.CDL.Interfaces.BooleanInput uCoo "Cooling enable signal"; Buildings.Controls.OBC.CDL.Interfaces.RealInput yValIsoEva_actual(final unit="1") "Return position of evaporator to ambient loop isolation valve"; Buildings.Fluid.Sensors.MassFlowRate senMasFlo2(redeclare final package Medium = Medium2, final allowFlowReversal=allowFlowReversal2) "Heat exchanger secondary mass flow rate"; protected parameter Boolean have_val1= conCon ==Buildings.DHC.ETS.Types.ConnectionConfiguration.TwoWayValve "True in case of control valve on district side, false in case of a pump"; equation if not have_val1 then connect(hex.port_b1, port_b1); else connect(port_a1, senT1WatEnt.port_a); end if; connect(port_a1,pum1.port_a); connect(val1.port_b,port_b1); connect(conWSE.y1, val1.y); connect(conWSE.y1, gai1.u); connect(gai1.y,pum1.m_flow_in); connect(PPum, pum1.P); connect(conWSE.yVal2, val2.y); connect(port_a2, senT2WatEnt.port_a); connect(senT1WatEnt.port_b, hex.port_a1); connect(senT1WatEnt.port_a, pum1.port_b); connect(hex.port_b1, val1.port_a); connect(uCoo, conWSE.uCoo); connect(senT1WatEnt.T, conWSE.T1WatEnt); connect(conWSE.T2WatEnt, senT2WatEnt.T); connect(senT2WatLvg.T, conWSE.T2WatLvg); connect(yValIsoEva_actual, conWSE.yValIsoEva_actual); connect(port_b2, senMasFlo2.port_b); connect(senMasFlo2.port_a, senT2WatLvg.port_b); connect(senMasFlo2.m_flow, conWSE.m2_flow); connect(val2.port_2, senT2WatLvg.port_a); connect(val2.port_3, senT2WatEnt.port_b); connect(val2.port_1, hex.port_b2); connect(hex.port_a2, senT2WatEnt.port_b); end WatersideEconomizer;
